StarTech.com | SKU:
FAN1156PWM

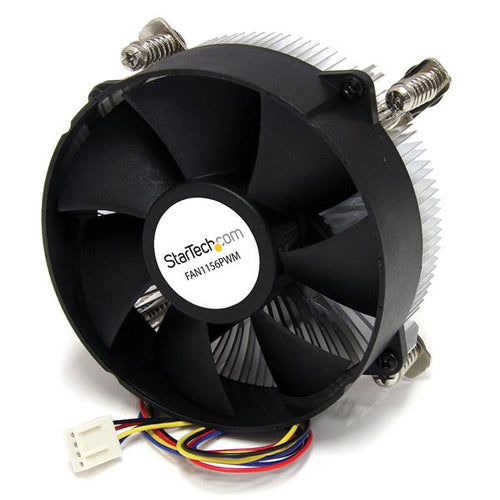

StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with PWM
€23.78
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with PWM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
StarTech 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with Pulse Width Modulation (PWM)
The FAN1156PWM CPU Cooler with PWM fan delivers reliable, efficient cooling for Intel® Core™ i3, i5, and i7 CPUs in Socket LGA1156 / 1155 / 1150 / 1151 / 1200 systems.
Pulse Width Modulation (PWM) technology enables the motherboard to automatically adjust fan speed based on system demand. This ensures quieter operation and reduced power consumption during idle periods, while providing maximum cooling performance under heavy workloads.
Key Features
- 4-pin Pulse Width Modulation (PWM) motherboard connector
- 95mm Ever Lubricate Bearing fan design
- Aluminum heatsink construction
Description
Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 SystemThe FAN1156PWM CPU Cooler with PWM fan delivers reliable, efficient cooling for Intel® Core™ i3, i5, and i7 CPUs in Socket LGA1156 / 1155 / 1150 / 1151 / 1200 systems.
Pulse Width Modulation (PWM) technology enables the motherboard to automatically adjust fan speed based on system demand. This ensures quieter operation and reduced power consumption during idle periods, while providing maximum cooling performance under heavy workloads.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Operating temperature (T-T) | -10 - 70 °C |
| Supported processor sockets | LGA 1156 (Socket H) |
| Mean time between failures (MTBF) | 40000 h |
| Design | |
| Product colour | Black |
| Technical details | |
| Type | Cooler |
| Supported processor sockets | LGA 1156 (Socket H) |
| Airflow | 65.61 CFM |
| Power | |
| Voltage | 12 V |
| Rated current | 0.35 A |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 102 mm |
| Package width | 102 mm |
| Package height | 87 mm |
| Package weight | 313 g |
| Weight | 272 g |
| Endurance | |
| Mean time between failures (MTBF) | 40000 h |
| Packaging data | |
| Package depth | 102 mm |
| Package width | 102 mm |
| Package height | 87 mm |
| Package weight | 313 g |
| Other features | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Rotational speed | 3000 RPM |
| Dimensions (WxDxH) | 95 x 95 x 55 mm |
| Airflow | 65.61 CFM |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 326 mm |
| Master (outer) case length | 526 mm |
| Master (outer) case height | 218 mm |
| Harmonized System (HS) code | 84733080 |
