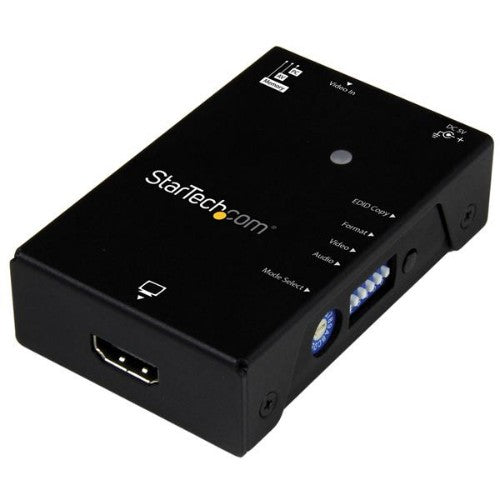

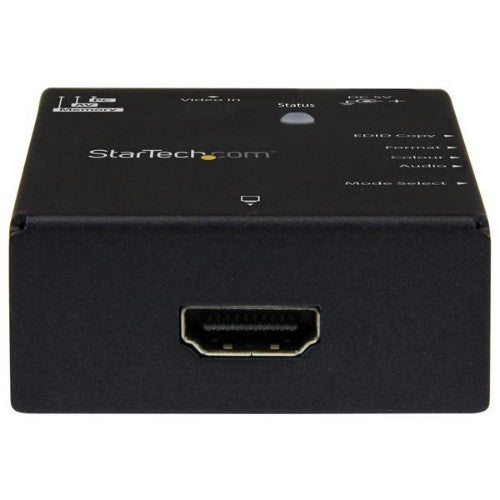

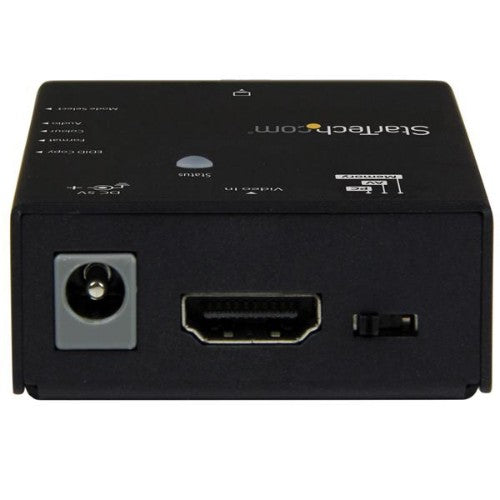

StarTech.com EDID Emulator for HDMI Displays - 1080p - TAA

StarTech EDID Emulator for HDMI Displays - Copy Extended Display Identification Data - 1080p , TAA (VSEDIDHD)

Key Features

• Maximizes compatibility between your HDMI display and video sources with EDID emulation
• Emulate or synthesize EDID settings with support for both EDID copying and EDID ghosting
• Hassle-free setup with an easy-to-set rotary dial
• Supports high-definition resolutions up to 1920 x 1080 (1080p)
• Stores EDID settings even when unplugged

Description

Add copied or ghosted EDID (Extended Display Identification Data) to your HDMI signal to ensure compatibility with your display or projector

This EDID emulator resolves video communication problems that can occur between your HDMI video source and display. The emulator can copy or synthesize the Extended Display Identification Data (EDID) from your HDMI display and relay it to your video source, to fix problems that may result from using third-party equipment such as video extenders, video switches or KVMs in your video setup.

Achieve maximum performance from your HDMI display

EDID contains important information that your television or projector needs, to deliver its best picture quality. Because most video extenders or switches block EDID communication between your video source and display, EDID is often lost in transmission, limiting your video source's ability to output your display's native resolution. Using the EDID emulator, you can ensure your HDMI source and display are perfectly in sync, for crystal-clear picture quality.

Versatile configuration options, with EDID copying or EDID ghosting

To ensure that any EDID communication issue can be solved, the EDID emulator supports both EDID copying and EDID ghosting.

EDID copying saves the EDID settings from your display and communicates those exact settings to your source, which is perfect for EDID issues that are caused by a third-party disruption, such as a video switch or extender.

EDID ghosting lets you emulate generic EDID settings, to deliver common data to your source or display. This is the perfect solution for EDID issues that often occur when you’re working with devices that don’t output EDID, such as older legacy equipment or some analog to digital video adapters.

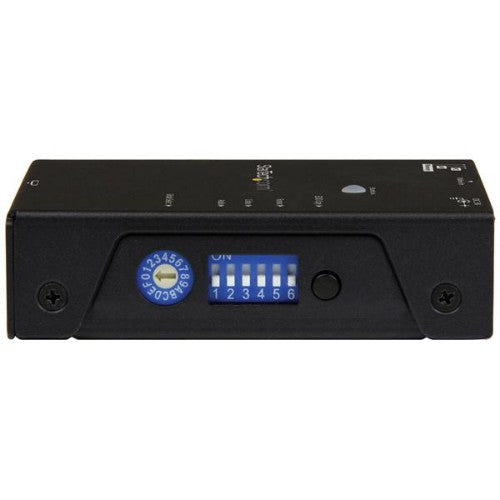

Easy to set up, with a hassle-free rotary dial

EDID communications contain a lot of important settings, such as maximum image size, color characteristics, factory preset timings, frequency range limits and more. With all of these specific details, it's easy to be confused or crossed up by the data. This emulator eliminates the hassle and confusion that comes with EDID, giving you a rotary dial that you can use to configure all of your settings in one simple step.

The VSEDIDHD is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.

Specifications

Technical details
Housing material	Steel
Maximum video resolution	1920 x 1080 pixels
Supported video modes	720p, 1080p
Supported resolutions	1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1366x768, 1280x1024, 1280x720, 1024x768
Output interface	HDMI
Host interface	HDMI
Audio support	Yes
Harmonized System (HS) code	85176990
Colour
Product colour	Black
Other features
Housing material	Steel
Product colour	Black
Certification	RoHS, CE, FCC
Supported resolutions	1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1366x768, 1280x1024, 1280x720, 1024x768
Features
Housing material	Steel
Product colour	Black
Certification	RoHS, CE, FCC
Video
Maximum video resolution	1920 x 1080 pixels
Supported video modes	720p, 1080p
Certificates
Certification	RoHS, CE, FCC
Audio
Audio support	Yes
Ports & interfaces
Output interface	HDMI
Host interface	HDMI
Power
USB powered	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	52 mm
Depth	80 mm
Height	22 mm
Weight	152 g
Packaging data
Quick installation guide	Yes
Package width	102 mm
Package depth	157 mm
Package height	48 mm
Package weight	266 g
Cables included	USB
Logistics data
Master (outer) case width	174 mm
Master (outer) case length	426 mm
Master (outer) case height	180 mm
Products per master (outer) case	12 pc(s)
Harmonized System (HS) code	85176990

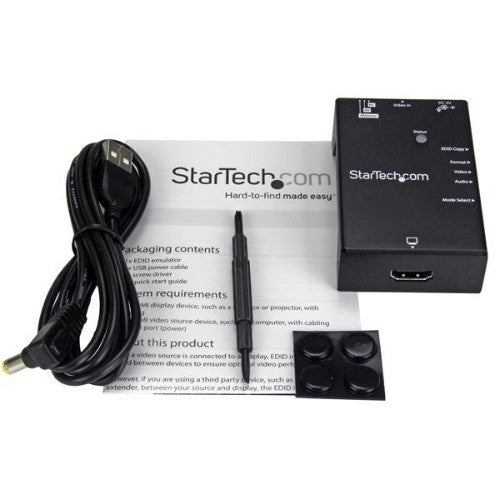

Packaging content
Quick installation guide	Yes
Cables included	USB
