StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m) - TAA

StarTech HDMI Over CAT5e / CAT6 Extender with Power Over Cable - 165 ft (50m) HDMI Video/Audio Over Dual Ethernet Cable Extender , TAA (ST121SHD50)

Key Features

• Power Over Cable allows a single power source to operate the Transmitter and Receiver
• Supports Cat5e or Cat6 Ethernet cabling (50m)
• No software/drivers required
• Supports HD resolutions up to 1080p (1920x1080)
• Includes transmitter (local) and receiver (remote) units

Description

Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.

With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.

For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

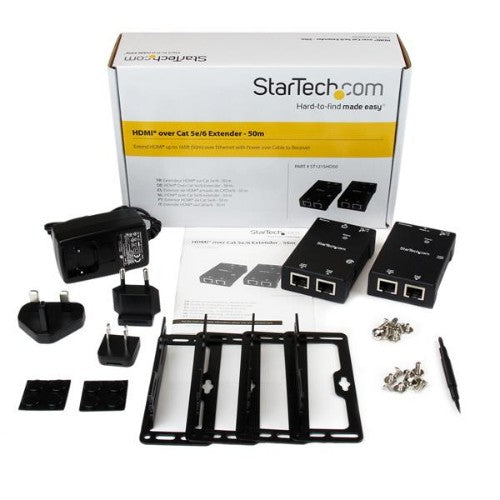

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Specifications

Features
Material	Aluminium
Rack mounting	Yes
Daisy chain	No
Certification	CE, FCC, REACH, TAA
Type	AV transmitter & receiver
Maximum resolution	1920 x 1080 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	50 m
Supported video modes	1080i, 1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
LED indicators	Power
Product colour	Black
Technical details
Material	Aluminium
Rack mounting	Yes
Daisy chain	No
Certification	CE, FCC, REACH, TAA
Ethernet LAN	Yes
Type	AV transmitter & receiver
Maximum resolution	1920 x 1080 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	50 m
Supported video modes	1080i, 1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Product colour	Black
Connectivity technology	Wired
Compliance certificates	RoHS
Ports & interfaces
Ethernet LAN	Yes
RJ-45 input ports	2
RJ-45 output ports	2
HDMI in	1
Number of HDMI outputs	1
DC-in jack	Yes
Connectivity technology	Wired
Power
Input current	0.5 A
Output current	1.5 A
Power plug type	Type M
AC input voltage	100-240 V
Power consumption (typical)	18 W
External power adapter	Yes
Operating voltage	12 V
Indication
LED indicators	Power
Operational conditions
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Receiver weight	157 g
Transmitter weight	157 g
Transmitter dimensions (WxDxH)	51 x 80 x 21 mm
Receiver dimensions (WxDxH)	51 x 80 x 21 mm
Package depth	159 mm
Package width	235 mm
Package height	66 mm
Package weight	935 g
Packaging data
Package depth	159 mm
Package width	235 mm
Package height	66 mm
Package weight	935 g
Packaging content
Mounting brackets included	Yes
Cables included	HDMI
AC adapter included	Yes
Manual	Yes
Logistics data
Master (outer) case width	416 mm
Master (outer) case length	326 mm
Master (outer) case height	269 mm
Products per master (outer) case	12 pc(s)
