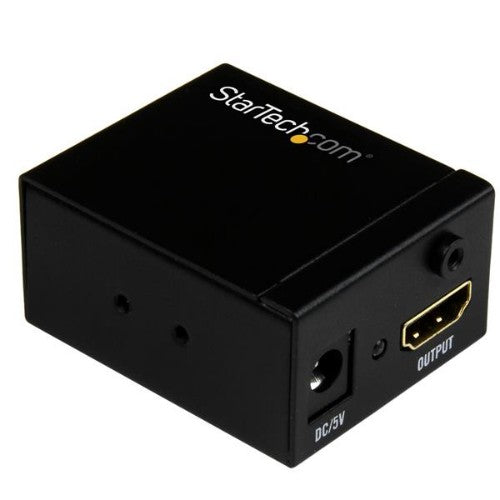

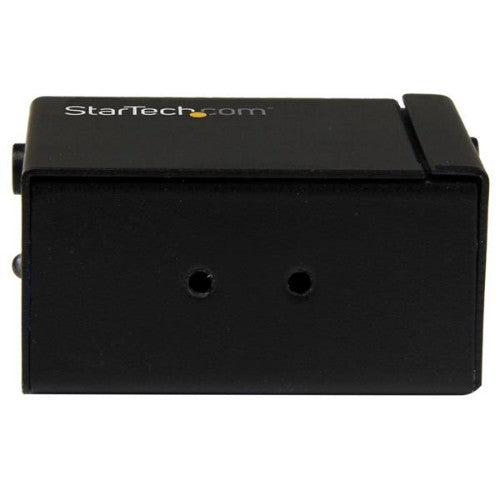

StarTech.com HDMI Signal Booster - 115 ft - 1080p

StarTech 115 ft/35 m HDMI Signal Booster - 1080p Signal Repeater - HDMI Inline Amplifier & Extender - 7.1 Audio Support (HDBOOST)

Key Features

• INLINE CAPABILITY: You can place the HDMI signal booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
• SIMPLE INSTALLATION: The HDMI booster mounting hardware is included. No CAT5 or CAT6 cable infrastructure required. A power adapter is not required for standard applications, SVUSBPOWER sold separately.

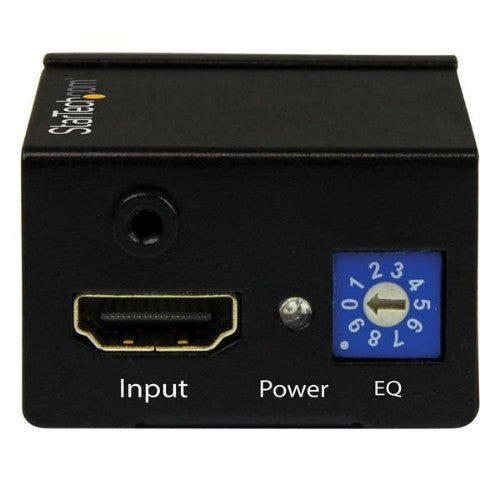

• EASILY CUSTOMIZABLE: The HDMI extender features an equalization switch with ten different levels. The switch lets you adjust the amplification of your signal based on the distance of your cables.
• LONG DISTANCE CAPABILITY: When extending HDMI over long distances, higher resolutions can become unavailable. Using the HDMI amplifier ensures high-definition resolutions up to 1080p at 60Hz.
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Extender is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.

Description

Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable

This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.

Discreet installation

With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.

Compatible with varying distances

The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.

Maintains high-definition video signals

When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.

The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Audio output channels	7.1 channels
Rack mounting	Yes
Certification	CE, FCC
Type	AV repeater
Maximum resolution	1920 x 1080 pixels
Maximum transfer distance	35 m
Audio system	Multichannel
Supported video modes	720p, 1080p
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)
LED indicators	Power
Product colour	Black
Technical details
Audio output channels	7.1 channels
Rack mounting	Yes
Certification	CE, FCC
Type	AV repeater
Maximum resolution	1920 x 1080 pixels
Maximum transfer distance	35 m
Audio system	Multichannel
Supported video modes	720p, 1080p
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)
Product colour	Black
Audio support	Yes
Harmonized System (HS) code	85176200
Compliance certificates	RoHS
Ports & interfaces
HDMI in	1
Number of HDMI outputs	1

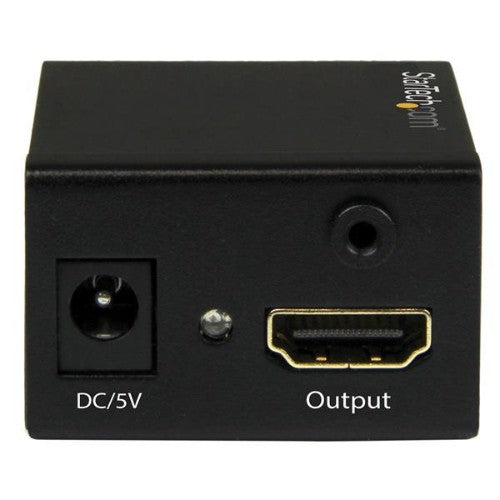

DC-in jack	Yes
Power
Output current	1 A
Power plug type	Type N
AC input voltage	100-240 V
Operating voltage	5 V
Indication
LED indicators	Power
Operational conditions
Operating relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-10 - 80 °C
Operating temperature (T-T)	0 - 70 °C
Weight & dimensions
Package depth	174 mm
Package width	143 mm
Package height	33 mm
Weight	72 g
Package weight	163 g
Package dimensions (WxDxH)	143 x 168 x 63 mm
Dimensions (WxDxH)	42.2 x 54.2 x 26.2 mm
Packaging data
Package depth	174 mm
Package width	143 mm
Package height	33 mm
Package weight	163 g
Package dimensions (WxDxH)	143 x 168 x 63 mm
Packaging content

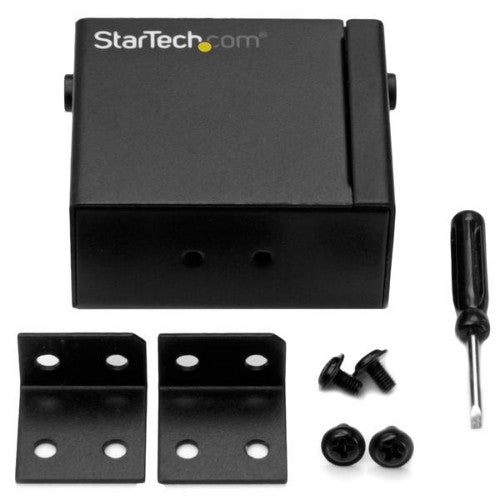

Mounting brackets included	Yes
Logistics data
Master (outer) case width	570 mm
Master (outer) case length	538 mm
Master (outer) case height	314 mm
Products per master (outer) case	100 pc(s)
Harmonized System (HS) code	85176200
