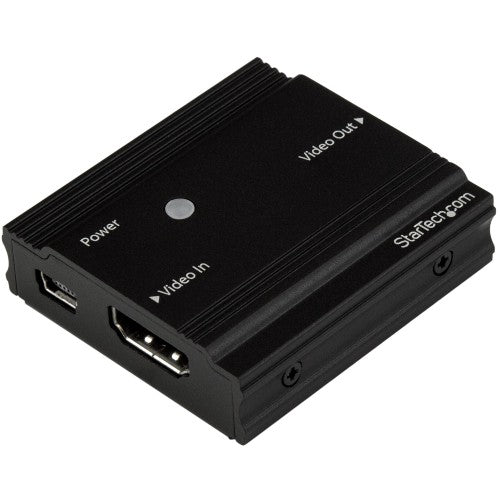

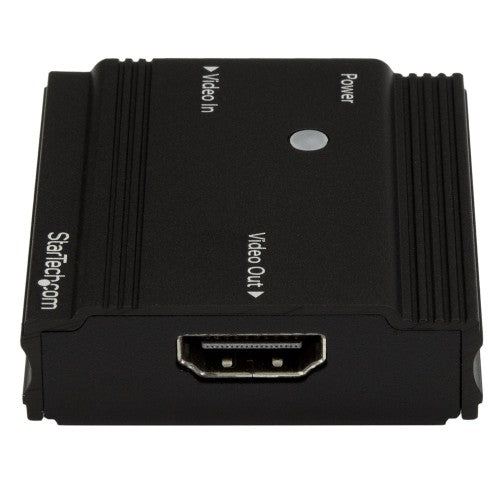

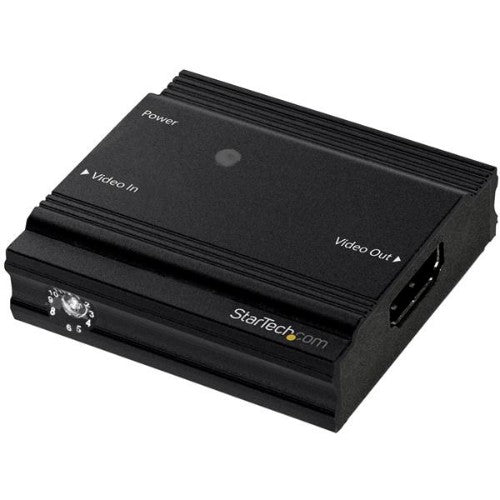

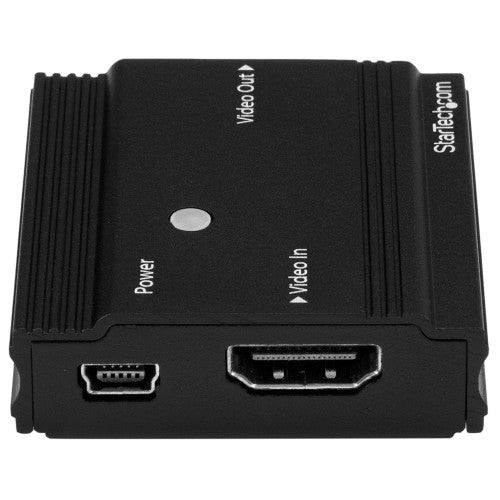

StarTech.com HDMI Signal Booster - HDMI Extender - 4K 60Hz - TAA

StarTech 115 ft. (35 m) 4K HDMI Extender - HDMI Extender - Up To 4K60 - Amplifier/Booster - HDMI to HDMI Booster , TAA (HDBOOST4K)

Key Features

• Astonishing picture quality with support for 4K (60Hz) at up to 30 ft. (10 m) away from your video source
• Backward compatible with 1080p resolutions at up to 115 ft. (35 m) away from your video source
• Discreet installation with no external power adapter required
• Works at varying distances up to 115 ft. (35 m)
• Works with two standard HDMI cables
• Supports HDCP 2.2
• Supports 7.1 surround sound audio

Description

Use this repeater to amplify your 4K HDMI signal and extend it 30 ft. using a standard HDMI cable

This 4K HDMI® signal booster lets you increase the signal strength of your HDMI video source so it can travel greater distances using standard HDMI cables. You can achieve resolutions up to 4K at 60Hz at distances of up to 30 ft. (10 m), and depending on your desired resolution, the booster supports distances up to 115 ft. (35 m) away at 1080p 60Hz resolution.

To install the booster, place it between two HDMI cables. Maintains Ultra HD 4K video signals at 60Hz

When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few feet. Using this HDMI signal booster ensures that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 30 ft. (10 m).

You can achieve even longer distances at lower resolutions -- up to 4K at 30Hz, at up to 82 ft. (25 m), and 1080p at 60Hz at up to 115 ft. (35 m).

Easy and discreet installation

With its small form factor design and no external power adapter, the HDMI booster is easy to hide, for a discreet installation. By extending your video signal using standard HDMI cables, the 4K booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.

Supports a variety of distances

Support for a variety of extension distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.

Note: To achieve resolutions up to 4K60, your video source, display and cabling must support HDMI 2.0.

The HDBOOST4K is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

Specifications

Features
HDCP	Yes
Audio output channels	7.1 channels
Rack mounting	No
Daisy chain	No
Type	AV repeater
Maximum resolution	3840 x 2160 pixels
Maximum transfer distance	35 m
Audio system	Multichannel
Supported video modes	720p, 1080p, 2160p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
LED indicators	Power
Product colour	Black
HDCP version	2.2
Technical details
HDCP	Yes
Audio output channels	7.1 channels
Rack mounting	No
Daisy chain	No
Type	AV repeater
Maximum resolution	3840 x 2160 pixels
Maximum transfer distance	35 m
Audio system	Multichannel
Supported video modes	720p, 1080p, 2160p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour	Black
Audio support	Yes
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Ports & interfaces
HDMI in	1
Number of HDMI outputs	1
Indication
LED indicators	Power
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-5 - 40 °C
Operating temperature (T-T)	0 - 35 °C
Weight & dimensions
Width	46 mm
Package depth	159 mm
Height	15 mm
Depth	56 mm
Package width	102 mm
Package height	48 mm
Weight	150 g
Package weight	200 g
Packaging data
Package depth	159 mm
Package width	102 mm
Package height	48 mm
Package weight	200 g
Packaging content

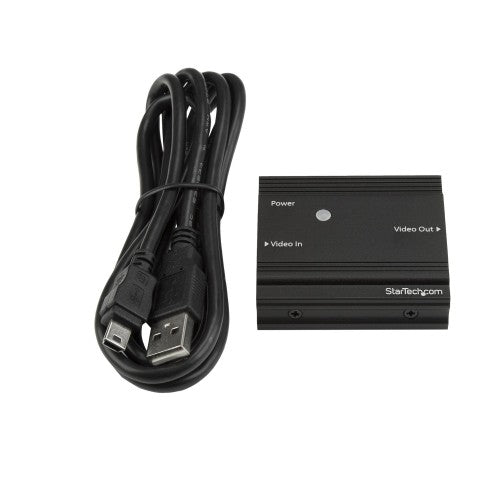

Cables included	USB
Logistics data
Master (outer) case width	176 mm
Master (outer) case length	428 mm
Master (outer) case height	180 mm
Products per master (outer) case	12 pc(s)
