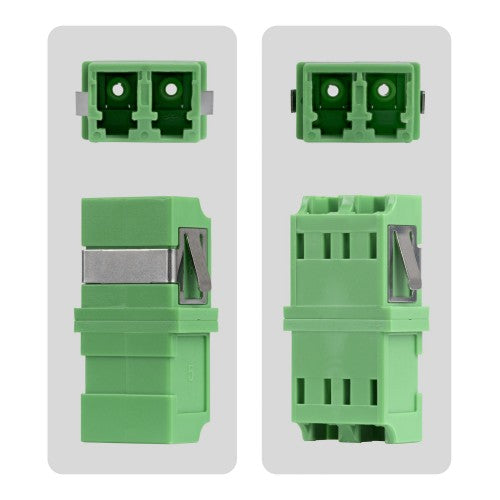

StarTech.com LC to LC Coupler 10 Pack, OS2 Single Mode SC Footprint LC Fiber Optic Coupler without Flange, LC/APC Duplex Adapter
€32.73
€33.00
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com LC to LC Coupler 10 Pack, OS2 Single Mode SC Footprint LC Fiber Optic Coupler without Flange, LC/APC Duplex Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
StarTech LC to LC Coupler 10 Pack, OS2 Single Mode SC Footprint LC Fiber Optic Coupler without Flange, LC/APC Duplex Adapter

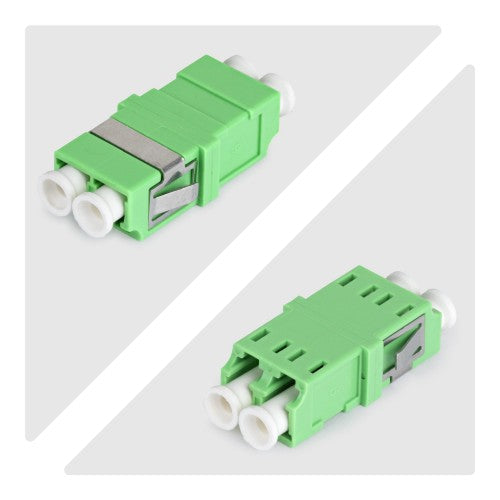

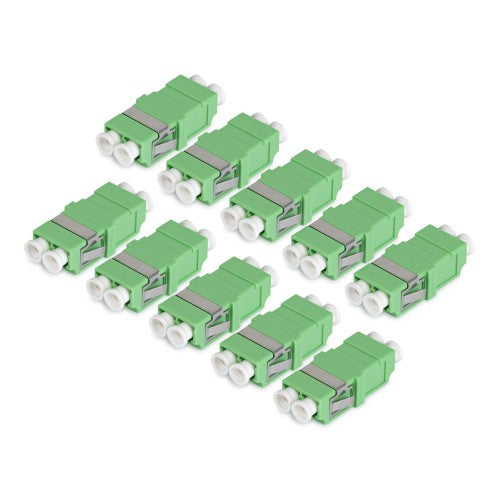

This 10-Pack of flangeless Single Mode LC couplers is a practical solution for supporting multiple installations. Join two LC Duplex connections in a fiber splice cassette or distribution panel.
Toolless Installation for Quick Setup
The LC Fiber Coupler supports Single Mode LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber panels and modular assemblies. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode LC/LC Fiber Coupler features a durable PBT housing and zirconia ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
Key Features
- Extend Multiple LC Connections: Deploy faster and more organized with a 10-pack of LC/APC duplex couplers in a flangeless SC-format housing, ideal for fiber splice cassettes and distribution panels in large-scale installations
- Reliable, High-Speed Performance: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler maintains peak signal integrity and exceeds TIA-568 B.3 standards; Optimized for Single Mode laser sources

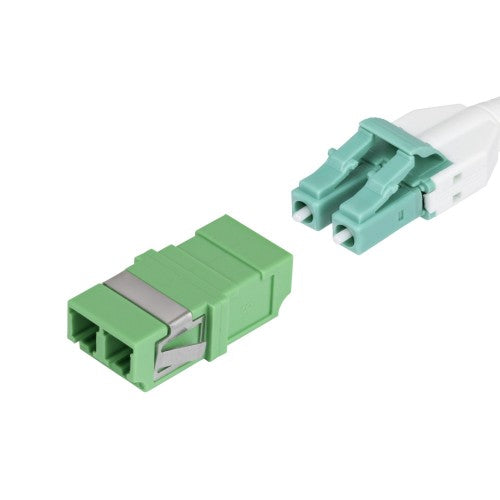

- Quick Installation: Flangeless snap-in design enables fast, tool-free placement in fiber cassettes or assemblies with SC duplex slots; Connects internal LC terminations to external LC patch cords for serviceable, low-loss links across fiber network infrastructure
- Single-Mode Compatibility: Pair with LC fiber cables with APC polished ends for optimal signal clarity and minimal return loss; Supports OS2/OS1 single-mode connections over 9/125μm cores at standard 1260-1625nm wavelengths
- The IT Pro's Choice: Operations managers and network technicians rely on our network accessories for high-speed performance and end-to-end signal integrity; Engineered for reliable connections that minimize downtime, and backed by free lifetime 24/5 multi-lingual technical assistance
Description
Connect two Single Mode LC/APC fiber cables or add an LC interface in a fiber breakout cassetteThis 10-Pack of flangeless Single Mode LC couplers is a practical solution for supporting multiple installations. Join two LC Duplex connections in a fiber splice cassette or distribution panel.
Toolless Installation for Quick Setup
The LC Fiber Coupler supports Single Mode LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber panels and modular assemblies. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode LC/LC Fiber Coupler features a durable PBT housing and zirconia ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
Specifications
| Features | |
|---|---|
| Duplex | Yes |
| Category | OS2 |
| Number of connectors | 2 |
| Connector type | LC/APC |
| Fiber mode structure | Single-mode |
| Product colour | Green |
| Certificates | |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 4 g |
| Packaging data | |
| Quantity per pack | 10 pc(s) |
| Package width | 160 mm |
| Package depth | 140 mm |
| Package height | 10 mm |
| Package weight | 6 g |
| Technical details | |
| Duplex | Yes |
| Category | OS2 |
| Number of connectors | 2 |
| Connector type | LC/APC |
| Fiber mode structure | Single-mode |
| Product colour | Green |
| Compliance certificates | CE |
| Packaging content | |
| Quantity per pack | 10 pc(s) |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 1440 pc(s) |
