StarTech.com | SKU:
PEX2PCIE4L
StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length - TAA
€387.62
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length - TAA is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
StarTech PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length , TAA (PEX2PCIE4L)

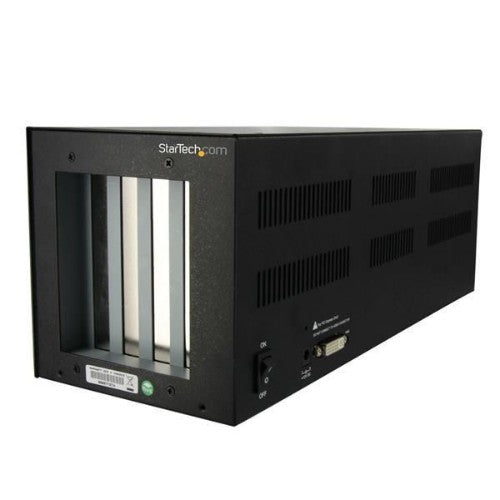

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.

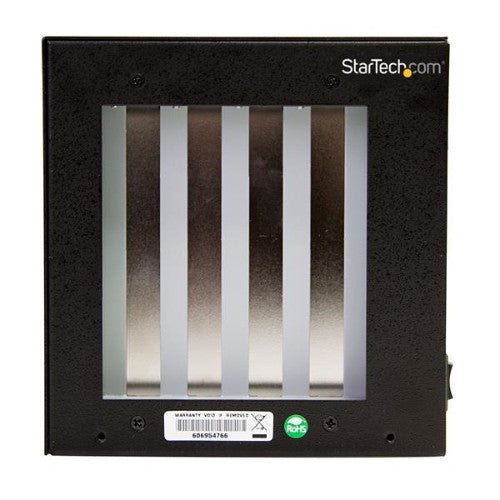

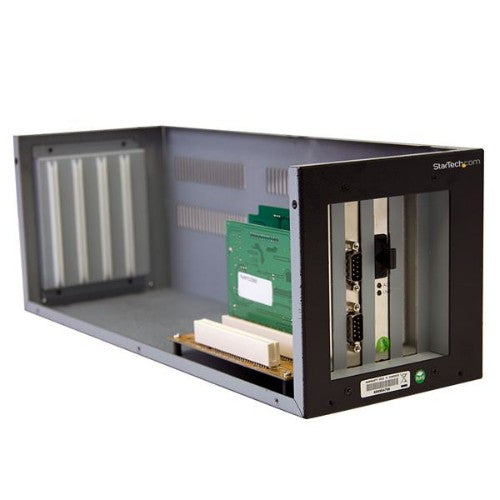

The external expansion chassis adds two full-length (35cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features

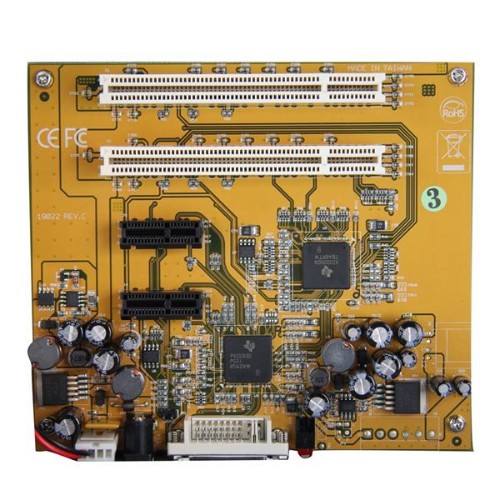

- Expansion bay providing 2 PCI ports (32-bit/33 MHz), and 2 PCIe single-lane ports (250MBps)
- Self-powered PCI/PCIe expansion system with an on/off button
- Rugged steel construction satisfies demands of industrial and server environments
- Supports both 5V and 3.3V & 5V add-in PCI cards
- Complies with PCI 2.3 and PCIe 1.1 specifications
- Supports advance error reporting including ECRC support
- Support add-in cards with extended length (35cm)
Description
Add two PCI and two PCI Express expansion card slots to your desktop computerThe PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.
The external expansion chassis adds two full-length (35cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Technical details | |
|---|---|
| Cable length | 0.9 m |
| Network | |
| Data transfer rate | 250 Mbit/s |
| Performance | |
| Harmonized System (HS) code | 84719000 |
| Certificates | |
| Certification | ROHS, CE, FCC |
| Design | |
| Certification | ROHS, CE, FCC |
| Features | |
| Harmonized System (HS) code | 84719000 |
| Power | |
| Output voltage | 12 V |
| Output current | 3 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 137 mm |
| Depth | 382 mm |
| Height | 143 mm |
| Weight | 2 kg |
| Package width | 443 mm |
| Package depth | 209 mm |
| Package height | 248 mm |
| Package weight | 2.1 kg |
| Packaging data | |
| Manual | Yes |
| Package width | 443 mm |
| Package depth | 209 mm |
| Package height | 248 mm |
| Package weight | 2.1 kg |

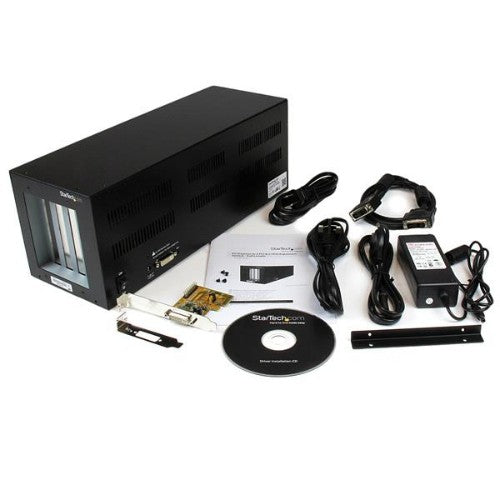

| Cables included | AC, DVI |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case width | 524 mm |
| Master (outer) case length | 436 mm |
| Master (outer) case height | 283 mm |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Data transfer rate | 250 Mbit/s |
| Ports quantity | 4 |
| Cable length | 0.9 m |
| Power requirements | 115 - 230 AC |
| Compatible operating systems | Win 2000/XP/2003/ Vista Linux Mac OS X |
| Packaging content | |
| Manual | Yes |
| Cables included | AC, DVI |
