StarTech.com | SKU:
PEX1PCI1
11% off

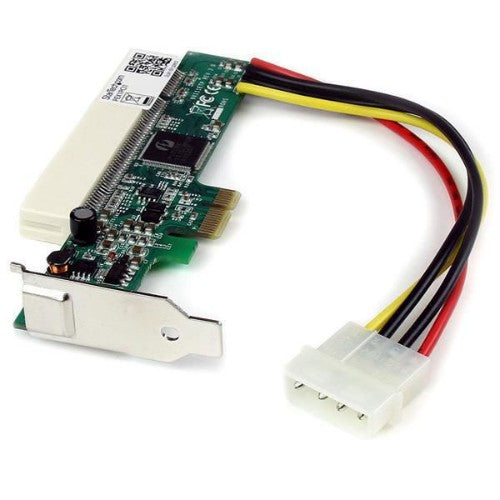

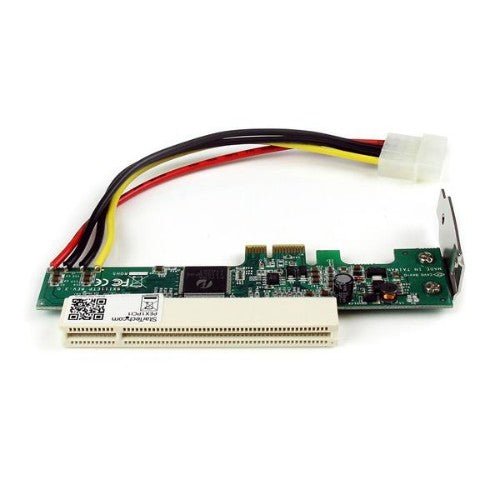

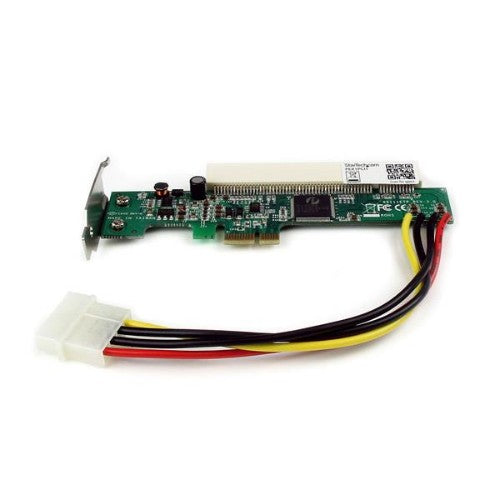

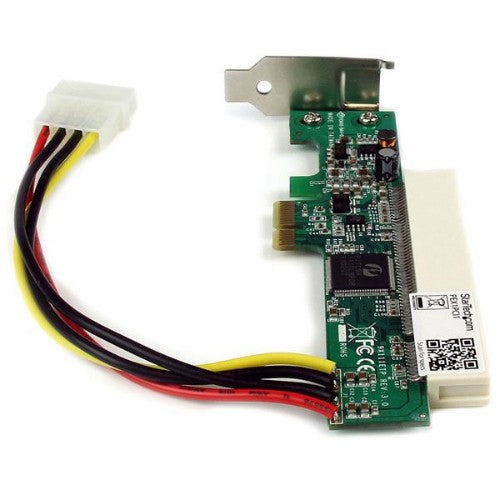

StarTech.com PCI Express to PCI Adapter Card - TAA
€40.85
€46.11
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com PCI Express to PCI Adapter Card - TAA is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
StarTech PCI Express to PCI Adapter Card - PCIe to PCI Converter Adapter with Low Profile / Half-Height Bracket , TAA (PEX1PCI1)
This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
Key Features
- Innovative bracket design adapts and secures the existing half-height/low profile bracket of the PCI Card
- PCI Express base spec 1.0a compliant for up to 250MBps of available bandwidth
- LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
- Compliant with PCI Express to PCI/PCI-X Bridge spec 1.0
- No driver or software installation
Description
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slotThis PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
Specifications
| Ports & interfaces | |
|---|---|
| I/O ports | 1x PCI 32-bit |
| Output interface | PCI 32-bit |
| Host interface | PCIe |
| Technical details | |
| Chipset | PERICOM PI7C9X110BNBE |
| Performance | |
| Chipset | PERICOM PI7C9X110BNBE |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | CE, FC, ROHS |
| Colour | |
| Product colour | Red |
| Design | |
| Product colour | Red |
| Certification | CE, FC, ROHS |
| Features | |
| Chipset | PERICOM PI7C9X110BNBE |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 135 mm |
| Height | 20 mm |
| Weight | 52 g |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 33 mm |
| Package weight | 121 g |
| Packaging data | |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 33 mm |
| Package weight | 121 g |
| Logistics data | |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 352 mm |
| Master (outer) case length | 680 mm |
| Master (outer) case height | 310 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Ports quantity | 1 |
| Platform | PC |
| Connectivity technology | Wired |
| Form factor | LP/ST |
| Power requirements | 3.3V |
| Mac compatibility | No |
| Compatible operating systems | Windows 2000/XP/Vista |
| I/O ports | 1x PCI 32-bit |
| Chipset | PERICOM PI7C9X110BNBE |
