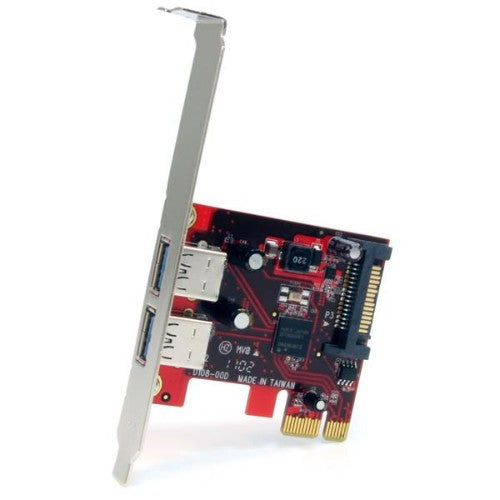

StarTech.com PEXUSB3S22 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

PEXUSB3S22, PCIe/2 x USB3.0

Description

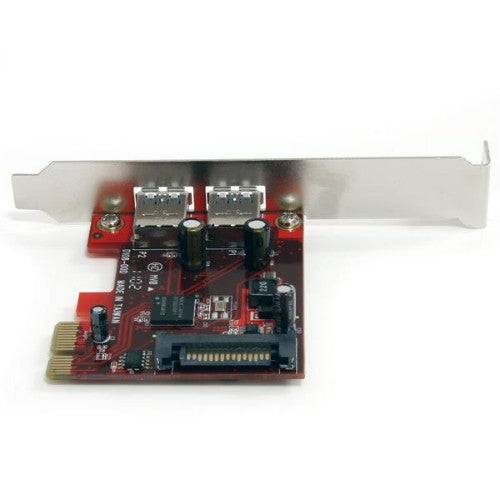

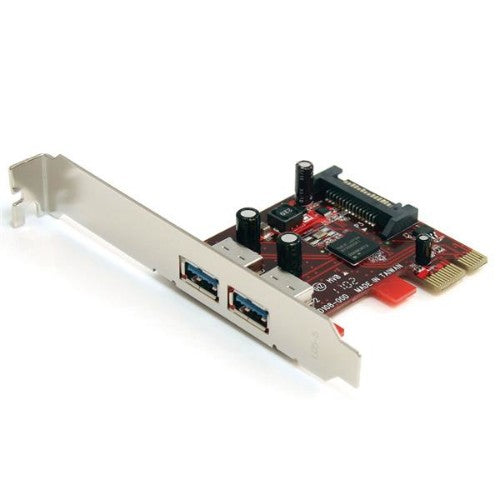

The PEXUSB3S22 2-Port PCI Express SuperSpeed USB 3.0 Card (with SATA Power) lets you add 2 USB 3.0 ports to any PCI Express-enabled computer system. With SuperSpeed USB 3.0, you can reach data transfer speeds up to 5 Gbps, while still being backward compatible with existing USB 2.0 devices at 480Mbps.

With a built-in SATA power connector, each USB port can deliver up to 900mA of power to USB 3.0 devices (500mA for USB 2.0), by connecting to your computer power supply. Compatible with both Low profile/half-height or Full profile computer cases, this PCIe USB 3.0 card is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- SuperSpeed USB 3.0 connectivity at up to 5 Gbps and 80% more power than USB 2.0
- Dual profile design to fit into Full or Low Profile/small form factor (SFF) systems
- Uses a SATA power connector for compatibility with newer systems that have limited or no LP4 power supply connections, to ensure maximum power for USB devices

Features
- Provides two external USB 3.0 connections
- Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications, with transfer rates up to 5 Gbps
- Built-in SATA power connector for high-powered USB devices, suitable for systems with limited or no LP4 power supply connections
- Provides up to 900mA per USB port
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Support Control/Bulk/Interrupt/Isochronous USB Transfer modes
- Compliant with PCI Express 2.0 specifications
- Includes a Low Profile/half-height installation bracket
- Applications
- Upgrade an older PCIe-based system with USB 3.0 connectivity to fully utilize USB 3.0 devices
- Ideal for newer computer systems with only SATA power connectors or limited number of older LP4 power connectors
- Expand a system's USB capabilities with two additional external USB ports
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system

Specifications

Ports & interfaces
Internal	Yes
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	2
Host interface	PCIe
Technical details
Chipset	NEC D720200
Purpose	PC
Bandwidth	5 Gbit/s
Compatibility	PCI Express expansion slot
Performance
Chipset	NEC D720200
Purpose	PC
Product colour	Red
Bandwidth	5 Gbit/s
Colour
Product colour	Red
Design
Purpose	PC
Internal	Yes
Product colour	Red
Features
Chipset	NEC D720200
Bandwidth	5 Gbit/s
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Weight & dimensions
Width	60 mm
Depth	70 mm
Height	15 mm
Weight	43 g
Package width	140 mm
Package depth	170 mm
Package height	30 mm
Packaging data
Package width	140 mm
Package depth	170 mm
Package height	30 mm
Other features
Ports quantity	2
Connectivity technology	Wired
Relative humidity	20 - 80%
Mac compatibility	No
Compatible operating systems	Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2
Compatibility	PCI Express expansion slot
Chipset	NEC D720200
