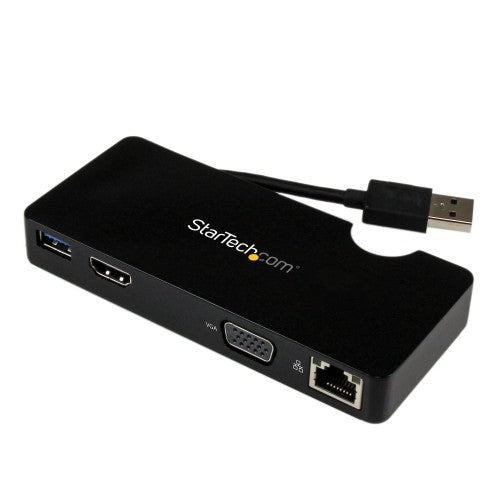

StarTech.com Travel Docking Station for Laptops - HDMI or VGA - USB 3.0

StarTech.com Portable Laptop Docking Station - HDMI or VGA and Gigabit Ethernet - USB 3.0 Universal Dock for Mac / Windows (USB3SMDOCKHV)

Description

Create a mobile workstation using your Ultrabook™ or laptop USB 3.0 port via this portable USB 3.0 mini dock

The travel docking station for laptops lets you transform your laptop or Ultrabook™ into a mobile workstation. It adds HDMI® or VGA video output, a USB 3.0 hub port, and a Gigabit Ethernet RJ45 port, through a single USB 3.0 host connection. The travel-friendly dock helps you overcome the port limitations of modern mobile computers, making it ideal for your laptop, Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.

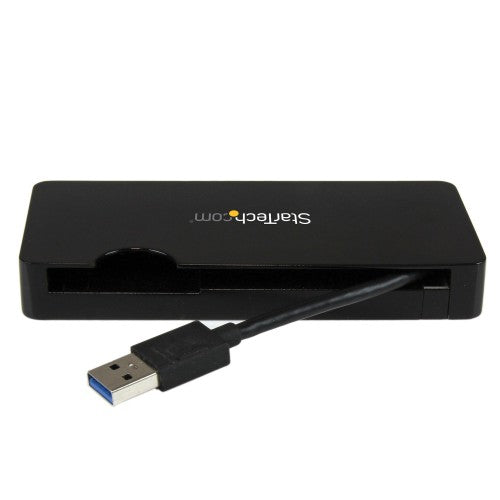

Now, you can avoid the nuisance of carrying multiple adapters. By consolidating four essential connection ports into one convenient device, the travel dock is the the perfect laptop accessory. It features a lightweight, compact design that fits nicely into your travel bag and also features an integrated host connection cable that tucks neatly into the docking stations casing.

A versatile solution for connecting an additional display to your laptop, the travel docking station offers HDMI video output with audio, or VGA video output, providing two popular interfaces for connecting a television, projector, or monitor as a second display, with support for resolutions up to 2048x1152 (QWXGA). Leveraging the high-bandwidth (5Gbps) USB 3.0 interface to deliver flexible video output, a USB 3.0 hub port, and Gigabit Ethernet, you can quickly set up a multi-functional workstation while on the run, without sacrificing one of your laptop USB ports.

Setup is seamless and hassle-free; the travel dock will automatically download the latest driver when connected to Windows® system with an active network connection.

The USB3SMDOCKHV is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	No
Headphone outputs	0
DC-in jack	No
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Performance
UASP support	Yes
Maximum digital resolution	2048 x 1152 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black
Card reader integrated	No
Brand compatibility	Any brand
LED indicators	Activity, Link
Data transfer rate	5 Gbit/s
Certification	CE, FCC, REACH
Housing material	Plastic
Technical details
Product colour	Black
Brand compatibility	Any brand
Data transfer rate	5 Gbit/s
Cable length	0.093 m
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	40 pc(s)
Master (outer) case width	346 mm
Master (outer) case length	448 mm
Master (outer) case height	309 mm
Storage
Card reader integrated	No
Power
Power source type	USB
Wireless charging	No
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Indication
LED indicators	Activity, Link
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Weight	82 g
Width	55 mm
Depth	125 mm
Height	17 mm
Package weight	192 g
Package width	167 mm
Package depth	143 mm
Package height	43 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Black
LED indicators	Activity, Link
Certification	CE, FCC, REACH
Packaging data
Package weight	192 g
Package width	167 mm
Package depth	143 mm
Package height	43 mm

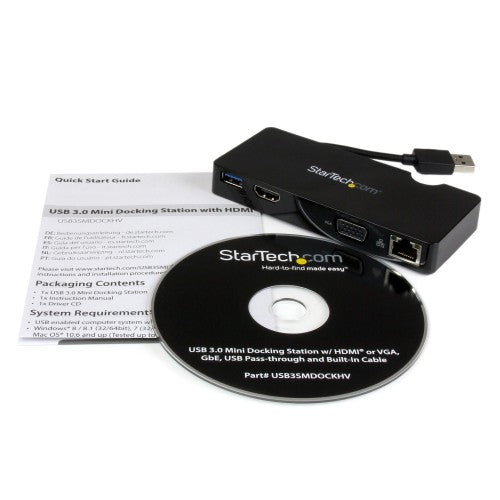

Packaging content
Drivers included	Yes
Manual	Yes
Certificates
Certification	CE, FCC, REACH
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	346 mm
Master (outer) case length	448 mm
Master (outer) case height	309 mm
Harmonized System (HS) code	84733020
Other features
Chipset	DisplayLink - DL-3700
Cable length	0.093 m
