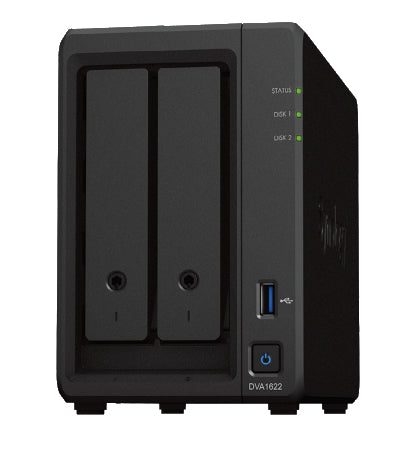

Synology DVA1622 network surveillance server Tower Gigabit Ethernet

Intel™ Celeron J4125 4-cores, 6 GB DDR4, 2 x 3.5" SATA HDD, 2 x USB 3.2 Gen 1 port, 1 x HDMI, 1GbE RJ-45, 166 x 106 x 223 mm, 1.51 kg

Key Features

• Intel™ Celeron J4125 processor
• 6 GB DDR4 (2 GB + 4 GB)
• support for over 8,300 IP cameras, H.264/H.265, and 4K resolution1

Description

Synology NVR DVA1622 is a 2-bay desktop recording server that gives home and small business users access to fast, smart, and accurate video surveillance powered by deep learning-based algorithms. Built-in automated event detection helps safeguard properties by detecting people, vehicles, or objects and alerting staff when selfconfigured rules or thresholds are breached. Complete Surveillance Solution With Built-in AI Capabilities The DVA1622 makes powerful AI-enabled surveillance available for everyone in a compact solution that includes everything you need to create an efficient surveillance system Everything You Need in Monitor Center Quickly view your business or home from all angles, see where and when issues were detected, or spin back time to get to the bottom of things without ever leaving your main overview. Better Situational Awareness With Maps Dynamic maps not only help you determine camera and event locations, but also provide instant access to video feeds for more efficient site monitoring Actionable Insights and Automated Actions Advanced deep learning-based algorithms built into the DVA1622 convert unstructured video data into business intelligence and security insights, to bolster and automate security. Powerful Video Management Platform Powered by Synology Surveillance Station running on Synology DSM, the DVA1622 offers powerful and convenient video recording, management, and analysis capabilities while making deployment of new or existing cameras fast and efficient. Central Surveillance Management Monitor, manage, and protect multiple Synology Deep Learning NVR and NAS systems from a single interface as part of a larger surveillance network over multiple sites with Surveillance Station Centralized Management Server (CMS).

Specifications

Processor
Processor family	Intel® Celeron®
Processor model	J4125
Processor frequency	2 GHz
Processor cores	4
Processor manufacturer	Intel
Processor threads	4
Processor boost frequency	2.7 GHz
Memory
Internal memory	6 GB
Internal memory type	DDR4
Memory layout (slots x size)	1 x 2 + 1 x 4 GB
Storage
Number of HDDs supported	2
HDD size	3.5"
HDD interface	SATA
Maximum storage capacity	108 TB
Lockable drive bays	Yes
RAID support	Yes
RAID levels	0, 1, JBOD
Hot-swap	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Ethernet interface type	Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
Design
Chassis type	Tower
Reset button	Yes
LED indicators	Status
Number of fans	1 fan(s)
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	106 mm
Depth	223 mm
Height	166 mm
Weight	1.51 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80%
