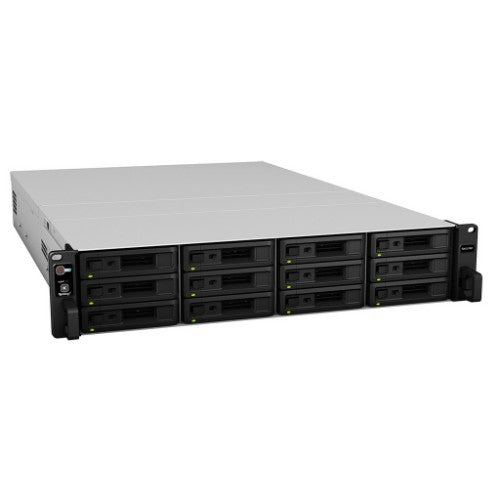

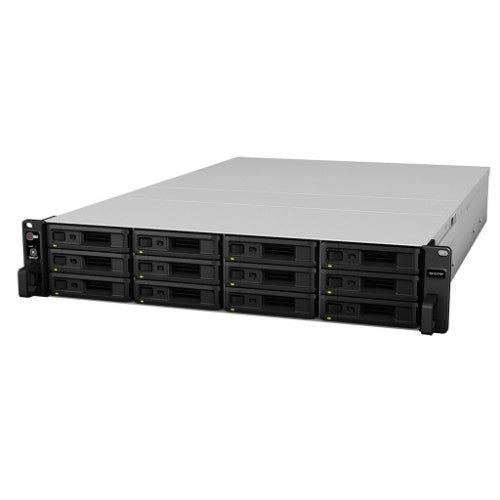

Synology RX1217RP disk array Rack (2U) Black, Grey

12x 3.5"/2.5" HDD/SSD, 88 x 430.5 x 692 mm, 12.7 kg, 2x 500 W

Description

Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217 and RX1217RP are 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations.

Volume expansion & backup

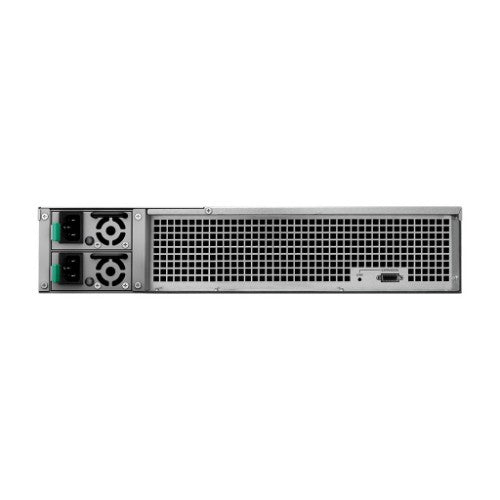

When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.

When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.

Reliable plug-and-use design

Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Specifications

Storage
Hot-swap drive bays	Yes
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Storage drives installed	No
Maximum supported storage capacity	168 TB
Data transfer rate	6 Gbit/s
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Ports & interfaces
USB connectivity	No
InfiniBand	Yes
Technical details
Number of fans	3 fan(s)
Noise level	54.2 dB
Product colour	Black, Grey
Compatible products	Synology RS3617xs
Chassis type	Rack (2U)
Certification	FCC A, CE A, BSMI A
Data transfer rate	6 Gbit/s
Harmonized System (HS) code	84717020
Compliance certificates	RoHS
Design
Number of fans	3 fan(s)
Noise level	54.2 dB
Product colour	Black, Grey
Compatible products	Synology RS3617xs
Chassis type	Rack (2U)
Certification	FCC A, CE A, BSMI A
Performance
Noise level	54.2 dB
Compatible products	Synology RS3617xs
Power
Power supply unit (PSU) capacity	500 W
Number of power supply units	2
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Power consumption (typical)	71.32 W
Weight & dimensions
Width	430.5 mm
Depth	692 mm
Weight	13.4 kg
Height	88 mm
Packaging content
Cables included	AC, InfiniBand
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Cables included	AC, InfiniBand
Other features
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84717020
