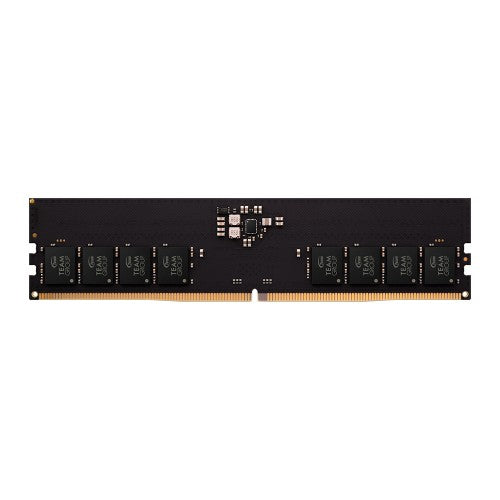

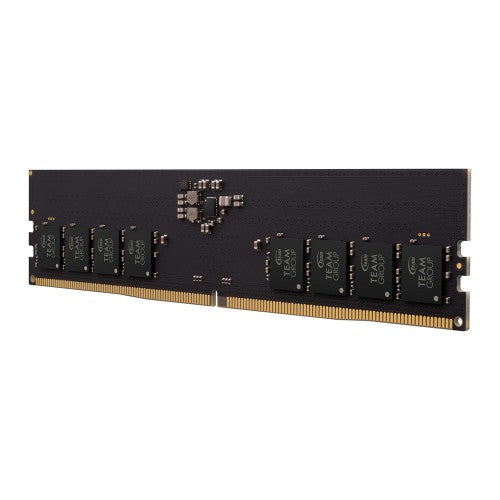

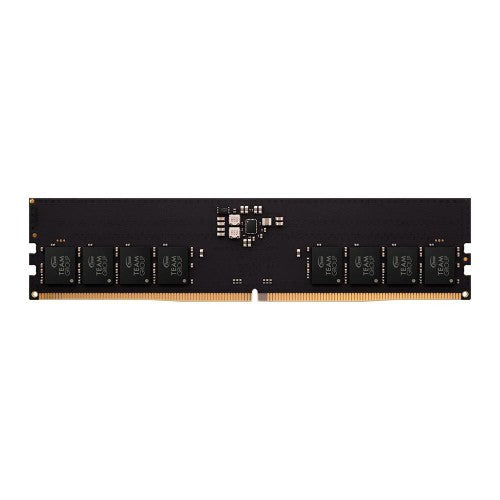

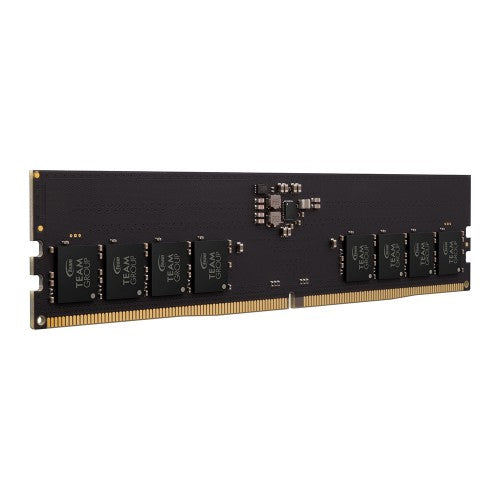

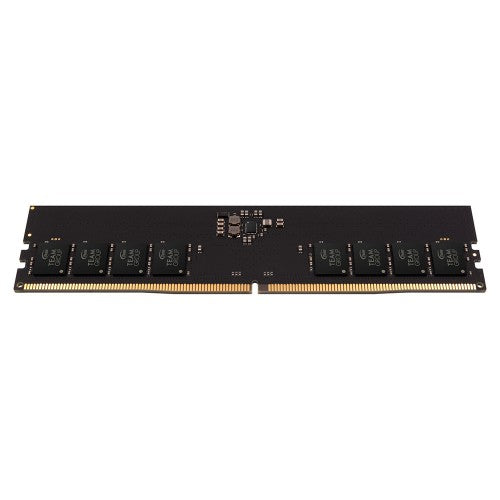

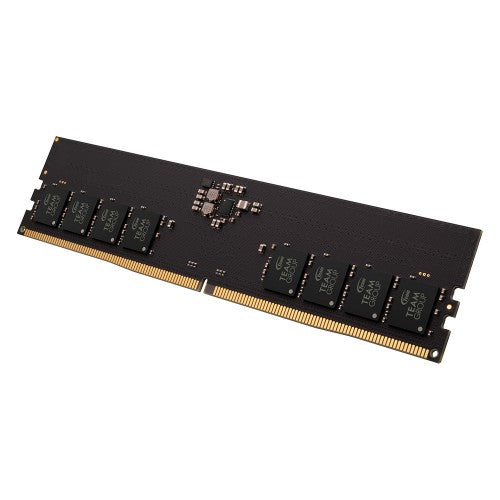

Team Group ELITE memory module 16 GB 1 x 16 GB DDR5 6000 MHz

16 GB, DDR5, 6000 MHz, 288-pin, UDIMM, CL48, 1.1 V

Key Features

• JEDEC DDR5 On-die ECC, Stable Performance
• Increased Fundamental Frequency, Faster Speeds
• Unleashed Capacity, Stronger Multitasking
• Improved Structural Composition, Greater Efficiency
• Reduced Working Voltage, Better Energy Efficiency

Description

Increased Fundamental Frequency, Faster Speeds
Minimum specifications reach an ultra-high frequency of 4800MHz, 50% more from the 3200MHz standard frequency maximum of DDR4 modules. Let our DDR5 help you breeze through all your boring, mundane tasks.

Unleashed Capacity, Stronger Multitasking
DDR5 kit is available from a 8GB capacity per module and, in compliance with JEDEC standards, can be expanded to 128GB capacity to uncap your memory and deliver a smooth multitasking experience.

Improved Structural Composition, Greater Efficiency
Factors critical to improved performance include increased banks and burst lengths. DDR5 allows up to 32 banks (storage units that can be enabled/disabled separately) comprised from 8 bank groups, doubling the access availability from the 16 banks available in DDR4 standards; the DDR5 burst length (amount of data that can be accessed from a single DRAM read/write command) is also twice as much as DDR4 burst lengths.

Reduced Working Voltage, Better Energy Efficiency
Standard working voltage has been reduced from the 1.2V in DDR4 modules to 1.1V, reducing energy consumption for each bandwidth to conserve energy and reduce your burden. To minimize noise interference, the power management has been transferred from motherboard to RAM and will be complimented with a PMIC for effective system load management.

On-die ECC, Stable Performance
DDR5 memory modules support on-die ECCs, a feature that self-corrects DRAM cells, to deliver stability to DRAM systems using DDR5.

Specifications

Memory
Package type	Blister
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Component for	PC
Memory form factor	288-pin DIMM
CAS latency	48
Memory voltage	1.1 V
ECC	No
Memory clock speed	6000 MHz
Internal memory type	DDR5
Power
Memory voltage	1.1 V
Design
JEDEC standard	Yes
Features
On-Die ECC	Yes
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Component for	PC
Memory form factor	288-pin DIMM
CAS latency	48
Memory voltage	1.1 V
ECC	No
Memory clock speed	6000 MHz
Internal memory type	DDR5
JEDEC standard	Yes
Weight & dimensions
Depth	134 mm
Height	32 mm
Package type	Blister
Packaging data
Package type	Blister
