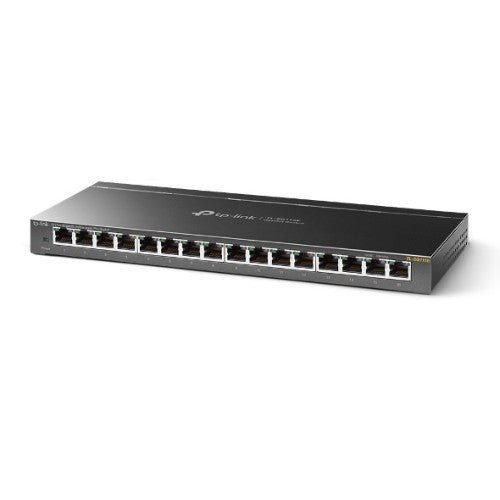

Description
The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.
Easy to Use
Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.
Durable Metal Casing
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Additional Software Features
TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.
Go Green with Your Ethernet
TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!,
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Network | |
| IGMP snooping | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Cable length detection | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Data transmission | |
| Number of VLANs | 32 |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Forwarding rate | 23.81 Mpps |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Auto-negotiation | Yes |
| Plug and Play | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | FCC, CE, RoHS |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 9.19 W |
| Power supply included | Yes |
| Input voltage | 12 V |
| Input current | 1 A |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 31.68 BTU/h |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
| Packaging data | |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Quick start guide | Yes |
| Package width | 170 mm |
| Package depth | 412 mm |
| Package height | 70 mm |
| Package weight | 1.36 kg |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Input voltage | 12 V |
| Packaging content | |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Quick start guide | Yes |
| Cables included | AC |
