Description

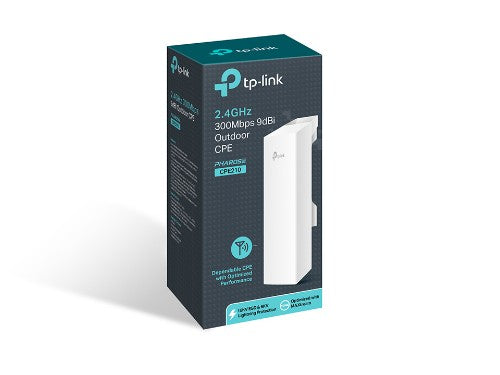

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.,
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.,
| Data transmission | |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Reset button | Yes |
| Bandwidth | 2.4 GHz |
| Frequency band | 2.4 - 2.483 GHz |
| Web-based management | Yes |
| Receiver sensitivity | 802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum outdoor range | 5000 m |
| Management platform | Pharos Control |
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5 |
| Maximum data transfer rate | 300 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 560 MHz |
| Wireless LAN features | |
| Frequency band | 2.4 - 2.483 GHz |
| Maximum outdoor range | 5000 m |
| Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth | |
| Bandwidth | 2.4 GHz |
| Certificates | |
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5 |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Bandwidth | 2.4 GHz |
| Frequency band | 2.4 - 2.483 GHz |
| Receiver sensitivity | 802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum outdoor range | 5000 m |
| Maximum data transfer rate | 300 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 560 MHz |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Protocols | |
| Management protocols | TDMA |
| Management features | |
| Web-based management | Yes |
| Management platform | Pharos Control |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 10.5 W |
| Output voltage | 24 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.8 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Design | |
| International Protection (IP) code | IPX5 |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5 |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 1 |
| Antenna gain level (max) | 9 dBi |
| Antenna features | Integrated antenna |
| Technical details | |
| Reset button | Yes |
| Receiver sensitivity | 802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm |
| Harmonized System (HS) code | 85176990 |
| Processor | |
| Built-in processor | Yes |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 224 mm |
| Depth | 79 mm |
| Height | 60 mm |
| Packaging data | |
| Mounting kit | Yes |
| Cables included | AC |
| Packaging content | |
| Mounting kit | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
