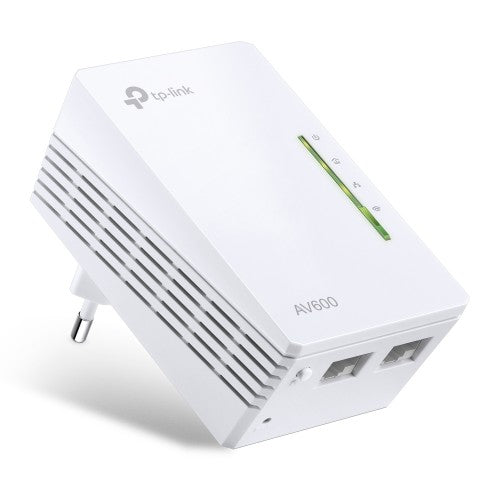

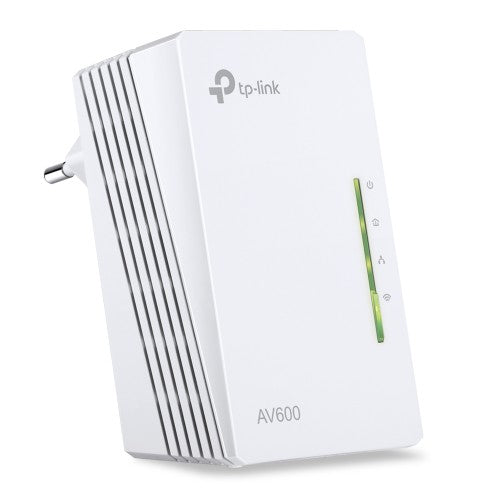

TP-Link AV600 Wi-Fi Powerline Extender

2x 10/100Mbps RJ-45, 300m Max, Wi-Fi, 802.11b/g/n, 54x40x94 mm

Key Features

• HomePlug AV2 Standard - Provides fast powerline transfer speeds of up to 600 Mbps
• 300 Mbps Wi-Fi - Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office
• Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
• 2 Ethernet Ports - Provides reliable high-speed wired connection for game consoles, smart TVs and more
• One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
• Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
• Easy Management - Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app

Description

Find Wired and Wireless Network from
Any Outlet with Your Home's Electrical System
300Mbps AV600 Powerline Wi-Fi Extender

Extend Your Network to Any Room Using Existing Powerline
The TL-WPA4220 transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling. With advanced HomePlug AV, TL-WPA4220, an add-on unit, is perfect for further extending the existing powerline network, providing stable and high-speed data transfer rates over a household electric circuit for up to 300 meters. Bringing wired and wireless network simultaneously to anywhere there is a power outlet.

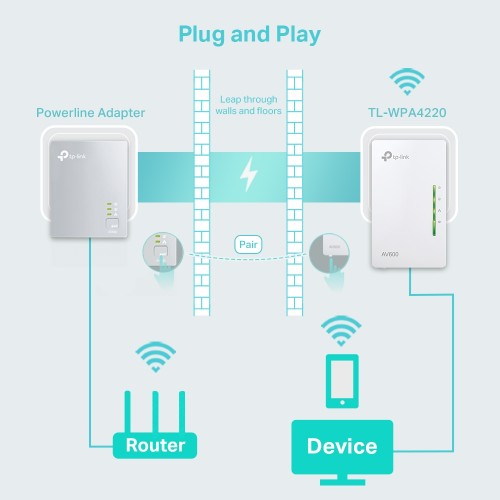

Plug & Play, No Configuration Required
Plug the powerline adapter in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! No configuration is required. Just enjoy the seamless, high speed wired and wireless network.

Pair for More Security
Press the “Pair” button on both adapters to create a more secure network.

Wi-Fi Auto-Sync for Unified Wi-Fi Network
Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

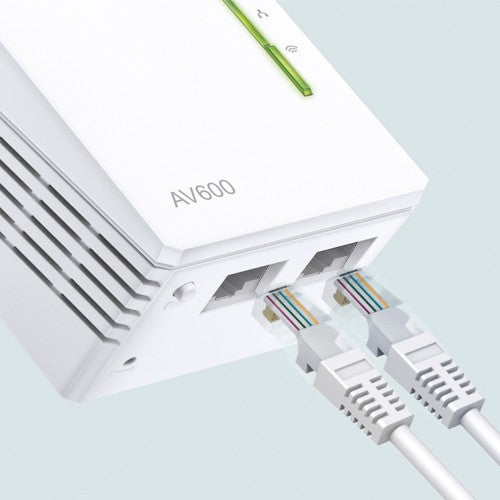

Two Fast Ethernet Ports for Wired Connections
With two fast Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. One Ethernet cable is included in the box.

Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices.

Specifications

Performance
Ethernet LAN interface type	Fast Ethernet
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	2
Wi-Fi	Yes
Maximum data transfer rate	600 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
PowerLine standard	HomePlug AV
Modulation	OFDM
Security algorithms	64-bit WEP, 128-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Maximum operating distance	300 m
Technical details
Antenna type	Internal
Ethernet LAN interface type	Fast Ethernet
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	2
Wi-Fi	Yes
Maximum data transfer rate	600 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
PowerLine standard	HomePlug AV
Modulation	OFDM
Security algorithms	64-bit WEP, 128-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Maximum operating distance	300 m
LED indicators	Yes
Product colour	White
Certification	CE, FCC
Compliance certificates	RoHS
Power
Power consumption (typical)	5.2 W
Design
Antenna type	Internal
LED indicators	Yes
Product colour	White
Certification	CE, FCC
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	94 mm
Depth	54 mm
Height	40 mm
Certificates
Compliance certificates	RoHS
Packaging content
Quantity per pack	1 pc(s)
