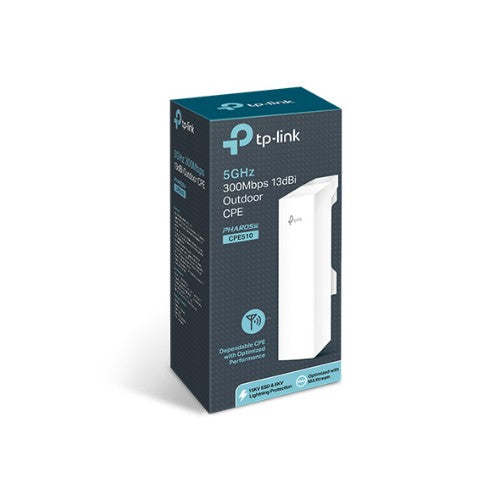

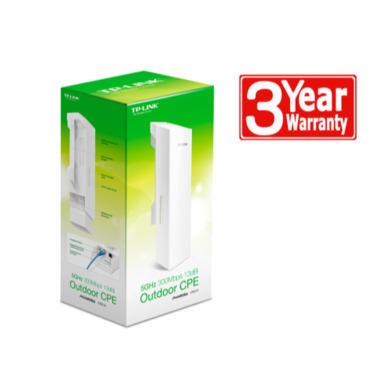

TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference

15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.,

Data transmission
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Performance
Wi-Fi data rate (max)	300 Mbit/s
Reset button	Yes
Bandwidth	5 GHz
Frequency band	5.15 - 5.85 GHz
Web-based management	Yes
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Networking standards	IEEE 802.11a, IEEE 802.11n
Maximum outdoor range	15000 m
Management platform	Pharos Control
Ethernet LAN data rates	10,100 Mbit/s
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Maximum data transfer rate	300 Mbit/s
Internal memory	64 MB
Flash memory	8 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Built-in processor	Yes
Wireless LAN features
Frequency band	5.15 - 5.85 GHz
Maximum outdoor range	15000 m
Network
Internal	No
Networking standards	IEEE 802.11a, IEEE 802.11n
Bandwidth
Bandwidth	5 GHz
Certificates
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Memory
Internal memory	64 MB
Flash memory	8 MB
Features
Wi-Fi data rate (max)	300 Mbit/s
Bandwidth	5 GHz
Frequency band	5.15 - 5.85 GHz
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Networking standards	IEEE 802.11a, IEEE 802.11n
Maximum outdoor range	15000 m
Ethernet LAN data rates	10,100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal memory	64 MB
Flash memory	8 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Built-in processor	Yes
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Protocols
Management protocols	TDMA
Management features
Web-based management	Yes
Management platform	Pharos Control
Ports & interfaces
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	13 W
Power over Ethernet (PoE)	Yes
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Design
Product colour	White
Reset button	Yes
Internal	No
LED indicators	Yes
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Antenna
Antennas quantity	1
Antenna gain level (max)	13 dBi
Antenna features	Integrated antenna
Technical details
Reset button	Yes
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Harmonized System (HS) code	85176990
Processor
Built-in processor	Yes
Indication
LED indicators	Yes
Weight & dimensions
Width	224 mm
Depth	75 mm
Height	60 mm
Packaging data
Cables included	AC
Packaging content
Cables included	AC
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
System requirements
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Logistics data
Harmonized System (HS) code	85176990
