Description
Easy mounting design & PoE

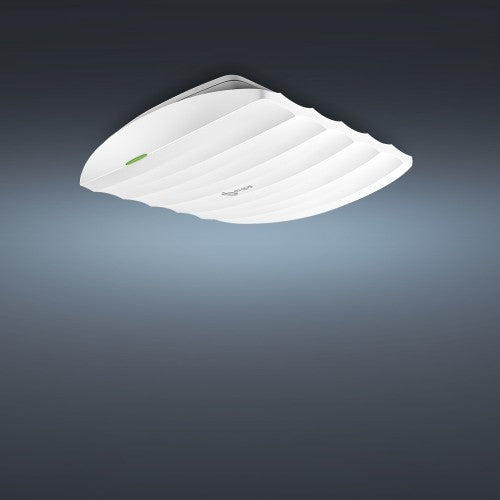

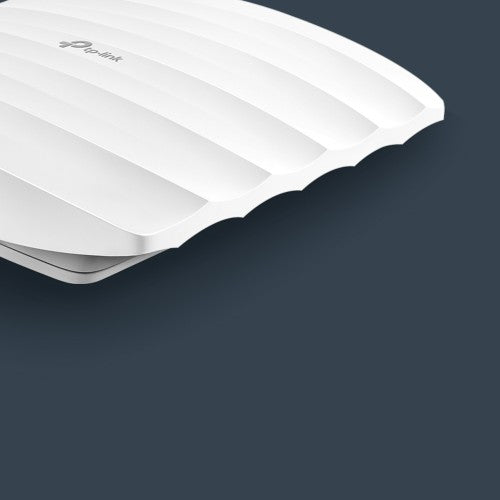

The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.,
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Frequency band | 2.4 - 2.4835 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Certification | FCC, RoHS |
| Maximum data transfer rate | 300 Mbit/s |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 2.4835 GHz |
| Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Web-based management | Yes |
| Certificates | |
| Certification | FCC, RoHS |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Frequency band | 2.4 - 2.4835 GHz |
| VLAN support | Yes |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Maximum data transfer rate | 300 Mbit/s |
| Transmitting power (CE) | 21 dBm |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Virtual LAN features | SSID-based VLAN assignment |
| Security | |
| Number of SSID supported | 8 |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power | |
| Power consumption (typical) | 2.8 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 24 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power |
| Certification | FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Power |
| Software | |
| Access Control List (ACL) | Yes |
| Weight & dimensions | |
| Width | 189.4 mm |
| Depth | 172.3 mm |
| Height | 29.5 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Package type | Box |
| Cables included | AC |
| Number of products included | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Cables included | AC |
| Number of products included | 1 pc(s) |
| Package type | Box |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
