Description

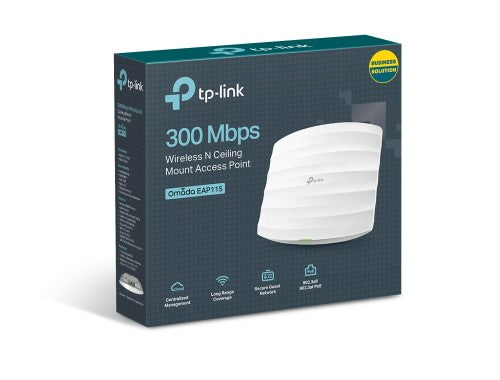

300Mbps Wireless N Ceiling Mount Access Point.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

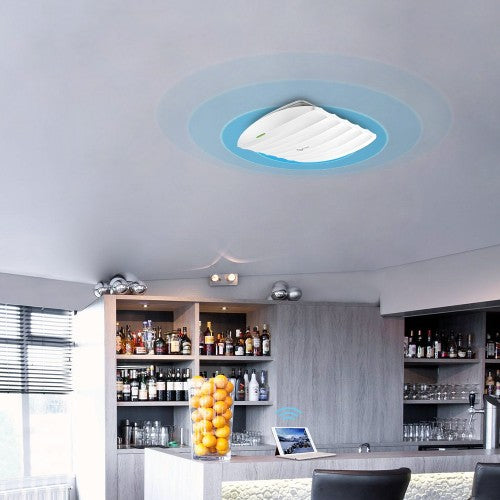

Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
Omada Hardware Controller,
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Automatic channel selection | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Frequency band | 2.4 - 2.4835 GHz |
| Web-based management | Yes |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC, RoHS |
| Maximum data transfer rate | 300 Mbit/s |
| Wireless LAN features | |
| Frequency band | 2.4 - 2.4835 GHz |
| Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Management features | |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Automatic channel selection | Yes |
| Frequency band | 2.4 - 2.4835 GHz |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Security | |
| Number of SSID supported | 8 |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| System status alarm | Yes |
| Service Set Identifier (SSID) features | Hidden SSID |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45), Wi-Fi |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power consumption (typical) | 2.8 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| On/off switch | Yes |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Technical details | |
| Reset button | Yes |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Software | |
| Access Control List (ACL) | Yes |
| System status alarm | Yes |
| Weight & dimensions | |
| Width | 172.3 mm |
| Depth | 189.4 mm |
| Height | 29.5 mm |
| Packaging data | |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Packaging content | |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
