TP-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black

TP-LINKSKU: MC100CM

Delivery: Fast Delivery products shipped within 2 working days from date of order.

No Customs Charges Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

Price:
Sale price€45.83

Tax included Shipping calculated at checkout

Description

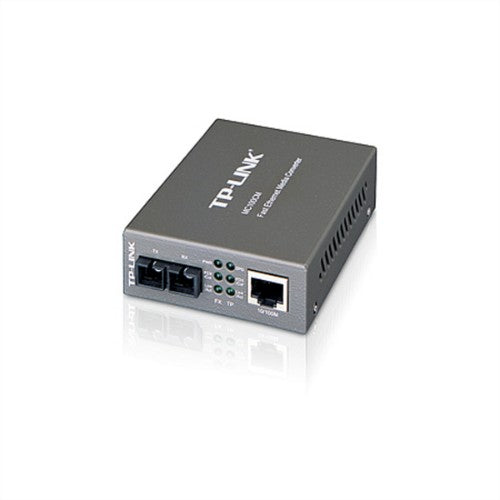

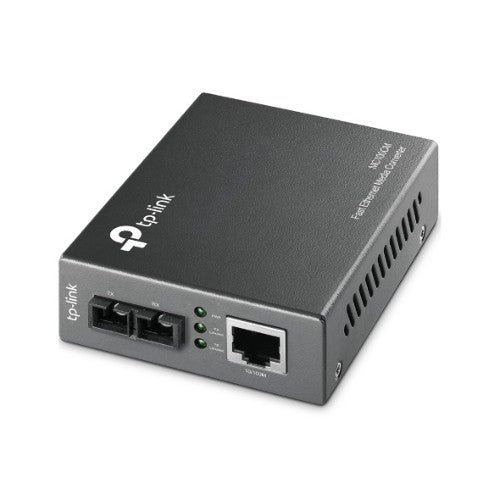

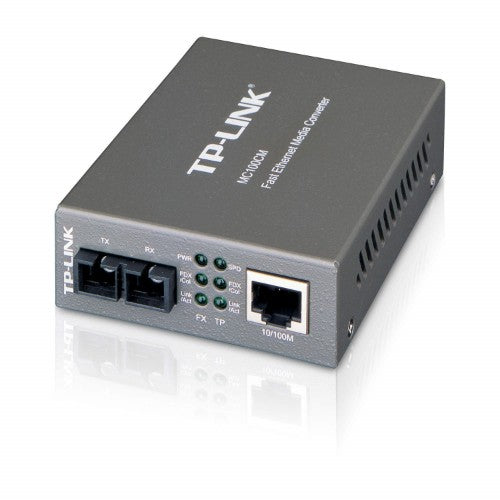

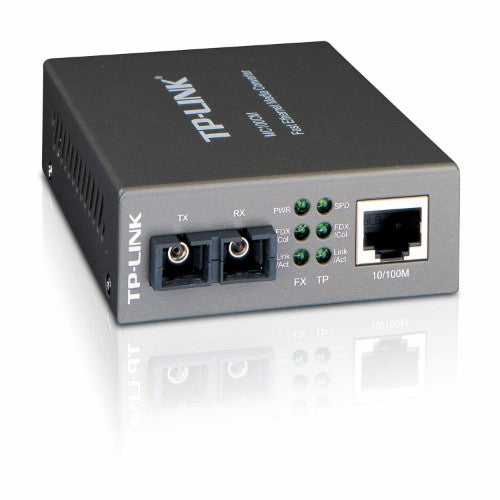

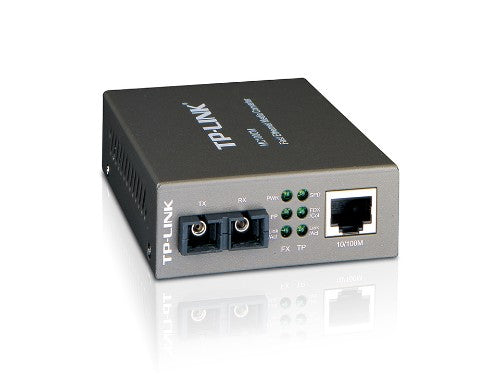

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).,
Network
Fiber optic connector SC
Cable types supported Cat3, Cat4, Cat5, Cat5e
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates 10,100 Mbit/s
Duplex system Full, Half
Auto MDI/MDI-X Yes
Maximum data transfer rate 100 Mbit/s
Technical details
Wavelength 1310 nm
Maximum transfer distance 2000 m
Fiber mode structure Multi-mode
Internal No
Sustainability certificates RoHS
Harmonized System (HS) code 85176990
Compliance certificates RoHS
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Fiber optic connector SC
Indication
LED indicators Yes
Performance
Wavelength 1310 nm
Maximum transfer distance 2000 m
Fiber mode structure Multi-mode
Design
LED indicators Yes
Product colour Black
Internal No
Power
Power consumption (max) 2.4 W
Colour
Product colour Black
Weight & dimensions
Width 95 mm
Depth 73 mm
Height 27 mm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Packaging content
Manual Yes
Logistics data
Harmonized System (HS) code 85176990
