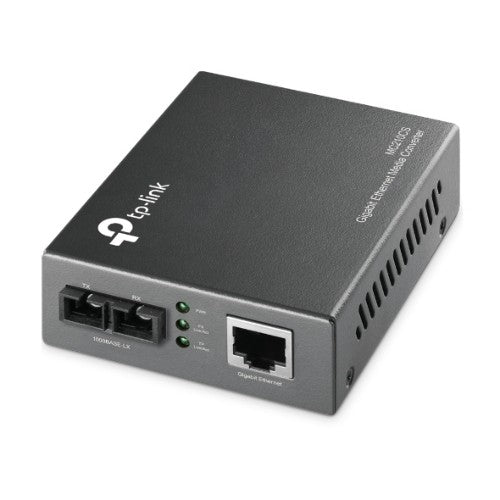

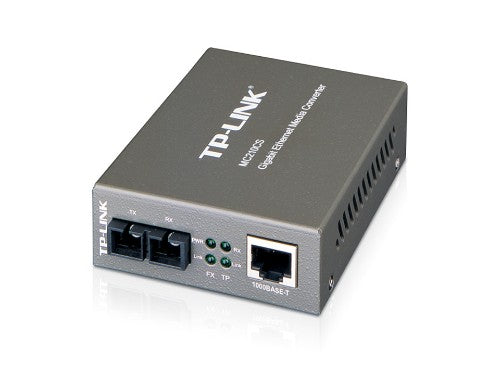

TP-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black

The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).,

Network
Cable types supported	Cat5, Cat5e
Copper ethernet cabling technology	1000BASE-LX, 1000BASE-T
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Auto MDI/MDI-X	Yes
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	SC
Performance
Wavelength	1310 nm
Maximum transfer distance	15000 m
Fiber mode structure	Single-mode
Features
LED indicators	Yes
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Power
Power consumption (max)	1.8 W
Weight & dimensions
Width	95 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Technical details
Wavelength	1310 nm
Maximum transfer distance	15000 m
Fiber mode structure	Single-mode
Internal	No
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Indication
LED indicators	Yes
Design
LED indicators	Yes
Product colour	Black
Internal	No
Colour
Product colour	Black
Certificates
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
