TP-LINK | SKU:
SM321A-2

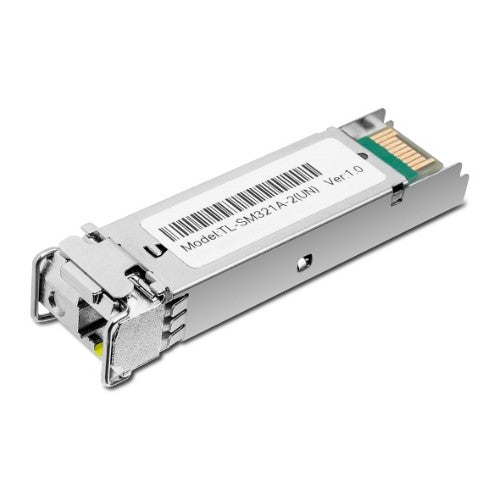

TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module
€21.69
Unit price
/
Unavailable
Shipping calculated at checkout.
TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Gigabit Single-Mode WDM Bi-Directional SFP Module
Key Features
- WDM Bi-Directional SFP Module

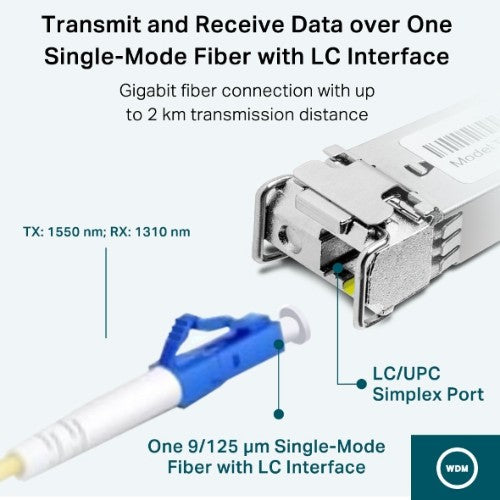

- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Paired with TL-SM321B or CM112CM
- Compatible with T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L
Description

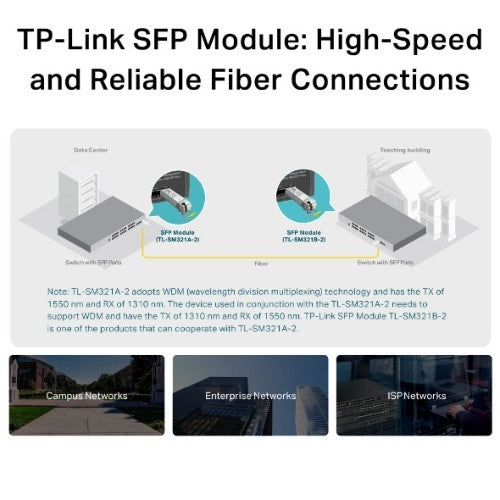

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber optic connector | LC (UPC) |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 1000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | BX |
| Fiber ethernet cabling technology | 1000BASE |
| Product colour | Metallic |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Metallic |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC (UPC) |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 1000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 122.5 mm |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Weight & dimensions | |
| Package depth | 122.5 mm |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
