Description

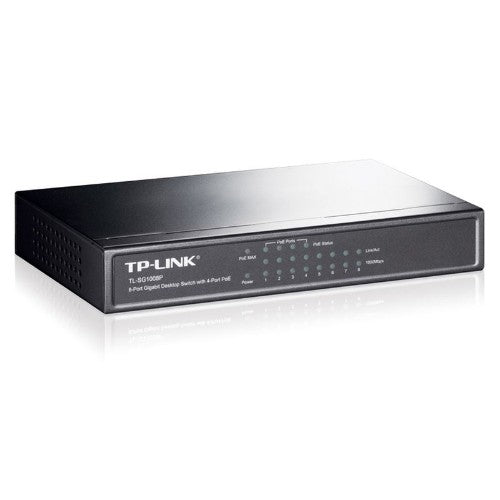

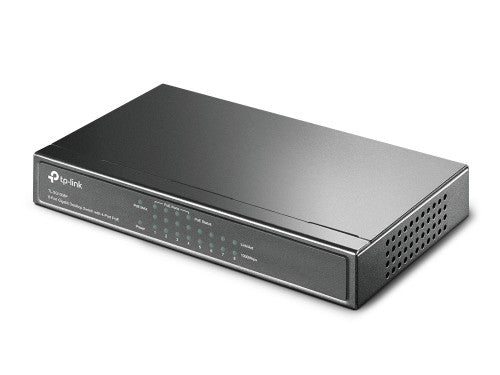

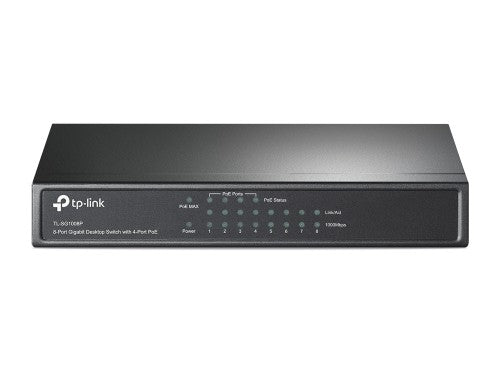

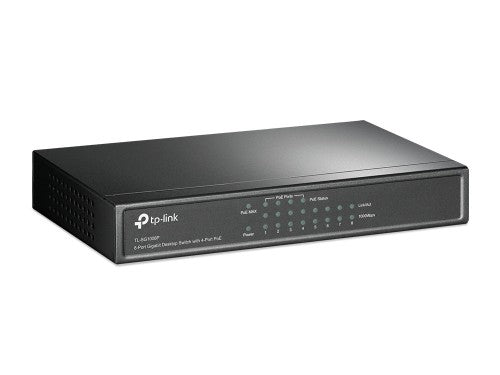

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works

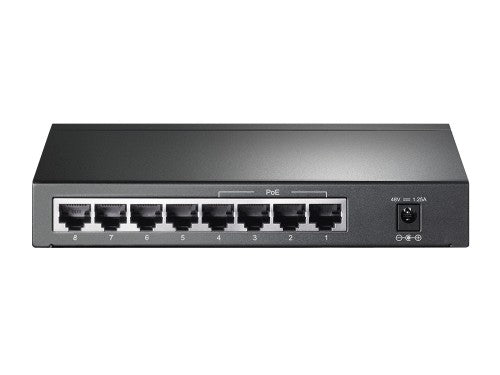

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.,
Ports & interfaces | |
---|---|
Copper ethernet cabling technology | 100BASE-T |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Compatible memory cards | MMC Mobile |
Gigabit Ethernet (copper) ports quantity | 8 |
Fiber optic connector | LuxCis |
Power connector | DC-in jack |
Virtual LAN features | |
VLAN mapping type | 2:2 VLAN Mapping |
Virtual LAN features | IP subnet–based VLAN |
IPv4 & IPv6 features | |
IPv4 & IPv6 features | IPv6 Telnet |
Optical fiber | |
Fiber optic connector | LuxCis |
Fiber ethernet cabling technology | 40GBASE-LR4 |
Power | |
Power connector | DC-in jack |
Power supply included | Yes |
Power consumption (typical) | 53 W |
Number of power supply units | 1 |
Input current | 1.25 A |
DC input voltage | 48 V |
Technical details | |
Product colour | Hazelnut |
Housing material | Polymer |
Rack mounting | No |
Sustainability certificates | ENERGY STAR |
Management features | |
Switch type | Unmanaged |
Network | |
Cable types supported | Cat6a |
Copper ethernet cabling technology | 100BASE-T |
Networking standards | IEEE 802.11j |
Full duplex | Yes |
Flow control support | Yes |
Ethernet LAN data rates | 1000 Mbit/s |
Auto MDI/MDI-X | Yes |
10G support | No |
VLAN mapping type | 2:2 VLAN Mapping |
Virtual LAN features | IP subnet–based VLAN |
Data transmission | |
MAC address table | 4800 entries |
Switching capacity | 16 Gbit/s |
Store-and-forward | Yes |
Security | |
Authentication | Auto VLAN |
Security algorithms | HTTPS |
Queue scheduling algorithms | SP |
Authentication type | HWTACACS |
MAC address entries | Blackhole MAC address entries |
DHCP features | DHCPv6 client |
Protocols | |
Routing protocols | IP |
IPv4 & IPv6 features | IPv6 Telnet |
Certificates | |
Certification | CE, FCC, RoHS |
Design | |
Product colour | Hazelnut |
LED indicators | Error |
Housing material | Polymer |
Certification | CE, FCC, RoHS |
Rack mounting | No |
Airflow direction | Back-to-front airflow |
Performance | |
Harmonized System (HS) code | 85176990 |
Indication | |
LED indicators | Error |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) ports quantity | 4 |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) type supported | Active PoE |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Width | 171 mm |
Depth | 98 mm |
Height | 27 mm |
Packaging data | |
Package type | Box |
User guide | Yes |
Cables included | AC |
Sustainability | |
Sustainability certificates | ENERGY STAR |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Other features | |
Ethernet LAN data rates | 1000 Mbit/s |
Packaging content | |
User guide | Yes |
Cables included | AC |
