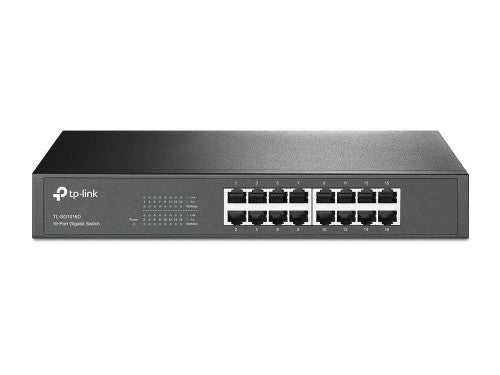

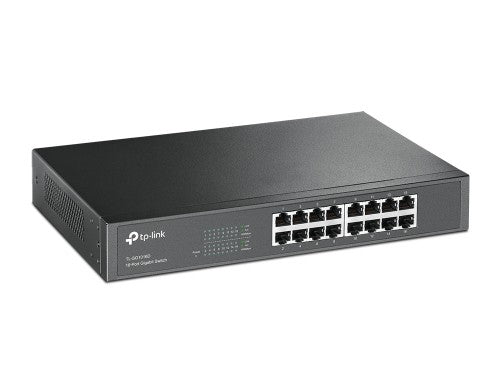

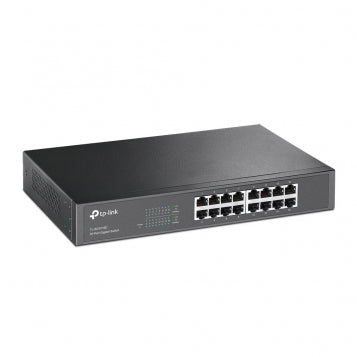

TP-Link TL-SG1016D network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40% of the power consumption, making it an eco-friendly solution for your business network.

Gigabit Switch
Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly expands your network capacity, enabling instant large files transferring. So，power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

GO GREEN WITH YOUR ETHERNET
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1016D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features
- Innovative energy-efficient technology saves power up to 40%;
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode;
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput;
- 32Gbps Switching Capacity;
- 10K Jumbo frame improves performance of large data transfers;
- Auto-MDI/MDIX eliminates the need for crossover cables;
- Supports MAC address auto-learning and auto-aging;
- Store and forward Switching scheme;
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware;
- Desktop and Rack-mountable design;
- Plug and Play design simplifies installation.,

Network
IGMP snooping	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	32
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Number of VLANs	32
Data transmission
Number of VLANs	32
Jumbo frames	9000
Throughput	23.08 Mpps
Packet buffer memory	0.5 MB
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Performance
Packet buffer memory	0.5 MB
Harmonized System (HS) code	85176990
Power

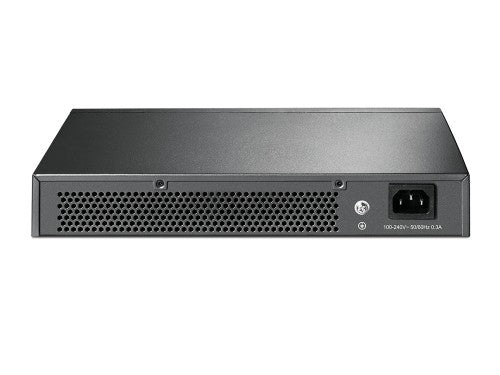

Power connector	DC-in jack
Power consumption (max)	11.73 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Product colour	Black
Rack mounting	Yes
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Security
IGMP snooping	Yes
Certificates
Certification	FCC, CE, RoHS
Memory
Packet buffer memory	0.5 MB
Design
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Rack mounting	Yes
Indication
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Packaging data
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
