Description
- Green Ethernet technology saves the power up to 82%
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS1 and IGMP Snooping function1
- Plug and play, no configuration needed
What This Product Does

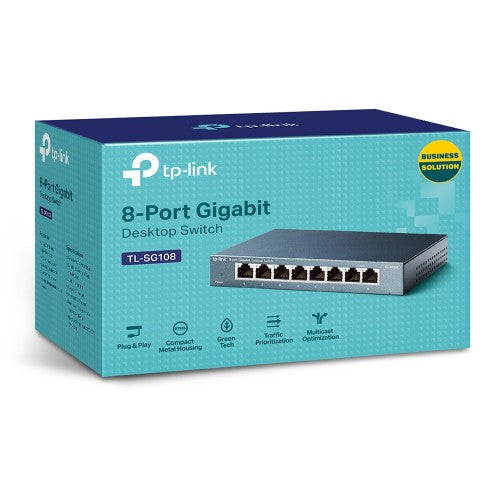

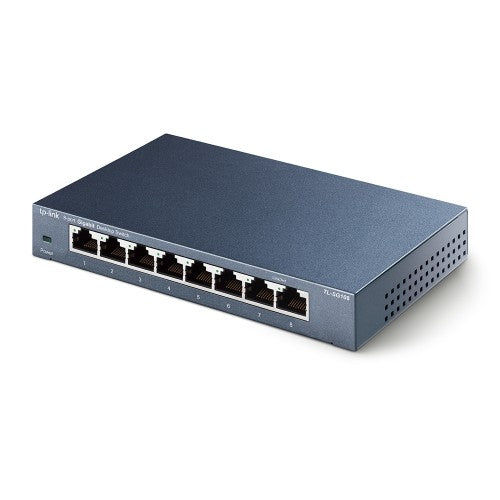

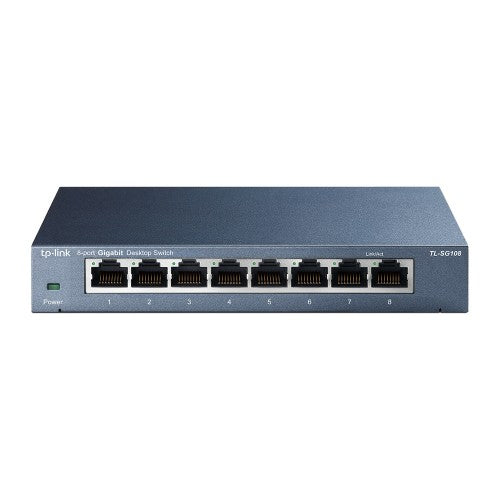

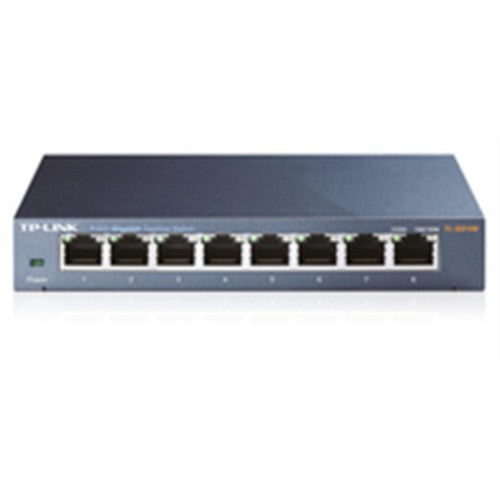

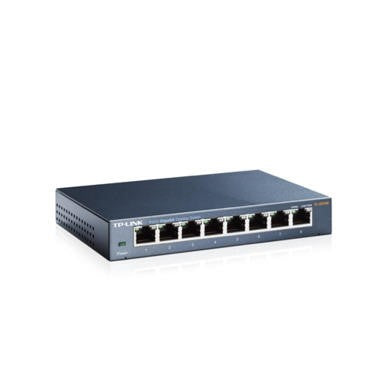

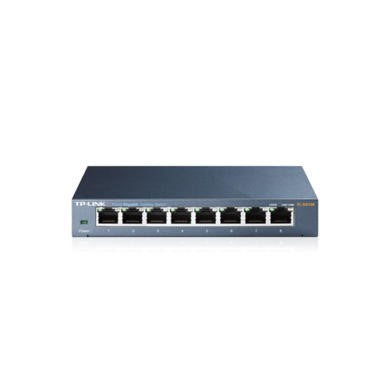

The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 82% of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 82% reduction in power use.
Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
Traffic Optimization
802.1p and DSCP QoS1 enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping1 optimizes the Multicast data stream.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.,
Management features | |
---|---|
Multicast support | Yes |
Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Switch layer | L2 |
Ports & interfaces | |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network | |
IGMP snooping | Yes |
GARP VLAN Registration Protocol (GVRP) | Yes |
Access Control List (ACL) IPv6 entries | 11 |
Cable types supported | Cat3, Cat4, Cat5, Cat5e |
MAC address auto-learning supported | Yes |
MAC address auto-aging supported | Yes |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Full duplex | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
10G support | No |
Auto-negotiation | Yes |
IPv4 & IPv6 features | |
Access Control List (ACL) IPv6 entries | 11 |
Performance | |
Packet buffer memory | 1.5 MB |
Auto-negotiation | Yes |
Harmonized System (HS) code | 85176990 |
Technical details | |
Product colour | Black |
Rack mounting | No |
Data transmission | |
Jumbo frames | 16000 |
Packet buffer memory | 1.5 MB |
MAC address table | 4096 entries |
Switching capacity | 16 Gbit/s |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Forwarding rate | 11.9 Mpps |
Security | |
IGMP snooping | Yes |
Access Control List (ACL) IPv6 entries | 11 |
Multicast features | |
Multicast support | Yes |
Protocols | |
GARP VLAN Registration Protocol (GVRP) | Yes |
Certificates | |
Certification | CE, FCC ,RoHS |
Memory | |
Packet buffer memory | 1.5 MB |
Design | |
Wall mountable | Yes |
Product colour | Black |
LED indicators | Yes |
Certification | CE, FCC ,RoHS |
Rack mounting | No |
Indication | |
LED indicators | Yes |
Mobile network | |
GARP VLAN Registration Protocol (GVRP) | Yes |
Power | |
Power consumption (max) | 3.3 W |
Power supply included | Yes |
AC input voltage | 220 V |
AC input frequency | 50 Hz |
Input current | 0.6 A |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Width | 158 mm |
Depth | 101 mm |
Height | 25 mm |
Packaging data | |
Package type | Box |
Quick start guide | Yes |
User guide | Yes |
Manual | Yes |
Cables included | AC |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Packaging content | |
Quick start guide | Yes |
User guide | Yes |
Manual | Yes |
Cables included | AC |
