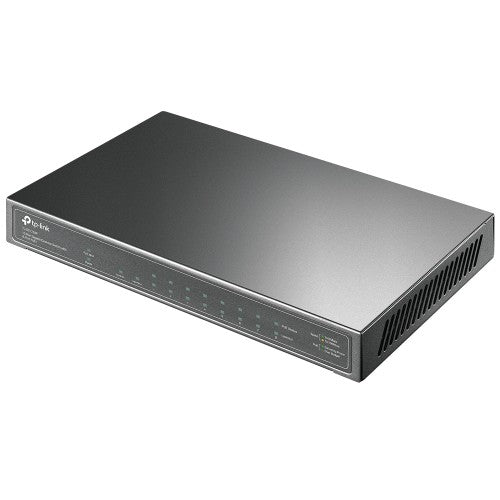

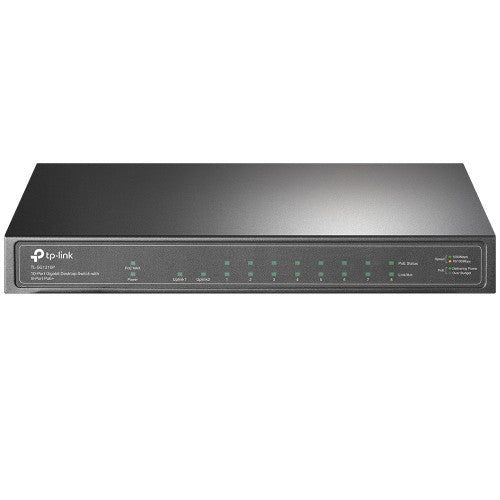

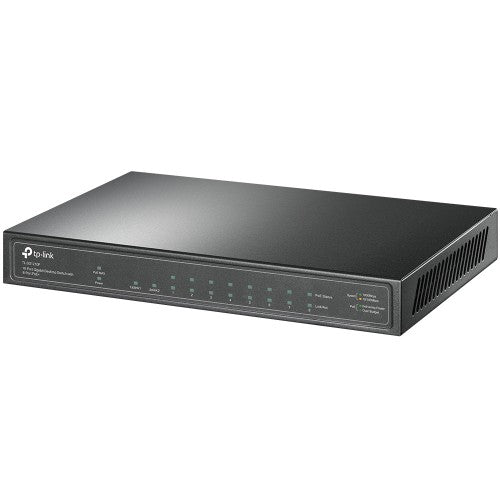

TP-Link TL-SG1210P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

PoE Switches for Your Ultra Convenience

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P

Surveillance
Work with IP Cameras

Conference Call
Work with IP Phones

Wi-Fi Coverage
Work with Omada EAPs

Easy to Use

Power over Ethernet

Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Qos
For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP
Snooping
Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.,

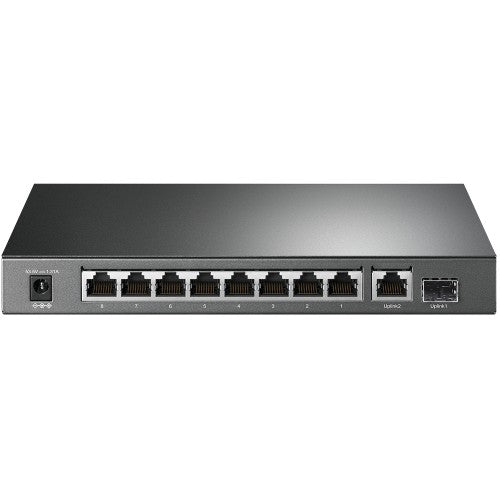

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity	1
Basic switching RJ-45 Ethernet ports quantity	9
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	9
Network
IGMP snooping	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Performance
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Fanless	Yes
Technical details
Product colour	Grey
Housing material	Metal
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Optical fiber
Fiber type	Single-mode
Fiber ethernet cabling technology	1000BASE-X
Data transmission
MAC address table	4000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
Security
IGMP snooping	Yes
Certificates
Certification	CE, FCC, RoHS
Design
Wall mountable	Yes
Product colour	Grey
LED indicators	Yes
Housing material	Metal
Certification	CE, FCC, RoHS
Indication
LED indicators	Yes
Power
Power consumption (max)	78.13 W
Power supply included	No
Power consumption (typical)	7.11 W
Input current	1.31 A
DC input voltage	53.5 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	63 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	266.42 BTU/h
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm
Packaging data
Quick start guide	Yes
User guide	Yes
Manual	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Quick start guide	Yes
User guide	Yes
Manual	Yes
Cables included	AC
