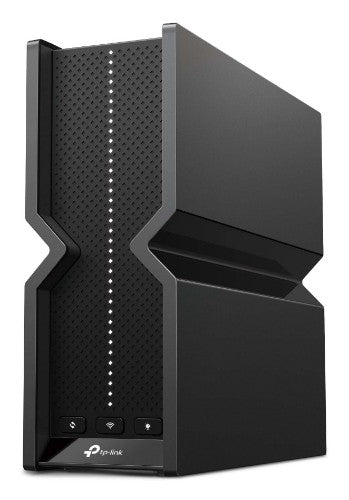

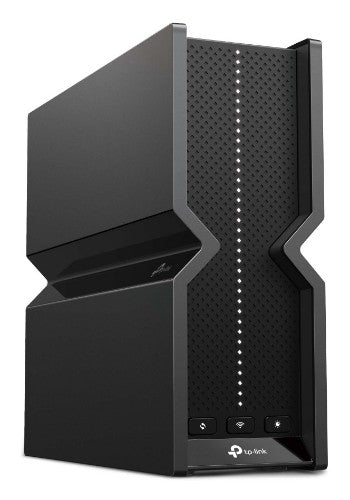

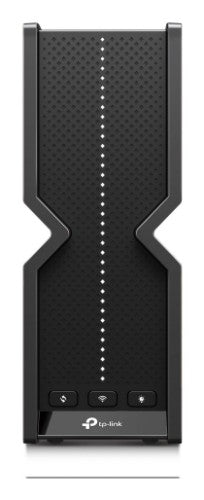

TP-Link Archer BE9300 Tri-Band Wi-Fi 7 Router

2.4 GHz (688 Mbps), 5 GHz (2880 Mbps), 6 GHz (5760 Mbps), 802.11 a/b/g/n/ac/ax/be, 1× 2.5 Gbps WAN, 4× 2.5 Gbps LAN, 76 × 231.7 × 203 m

Key Features

• Redefining WiFi Routers: With powerful WiFi 7 performance, lightning-fast wired connections, and brand-new design
• Blazing-Fast 9328 Mbps Tri-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.‡
• 5× 2.5G Ports: 1× 2.5 Gbps WAN port and 4× 2.5 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance

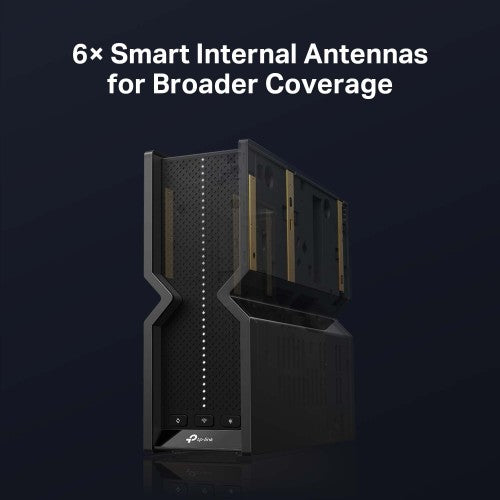

• Maximized Coverage: Proprietary WiFi optimization and optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference
• EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals
• Easy Setup and Use: Network management has never been easier with the Tether app
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats
• Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers

Description

Exploring the New Era of Home WiFi
BE9300 Tri-Band WiFi 7 Router

WiFi 7 — WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

Ultra-Fast 9328 Mbps 6-Stream Tri-Band WiFi
Enjoy smooth 8K streaming, VR/AR, video conferencing, online gaming, and high-speed downloading.

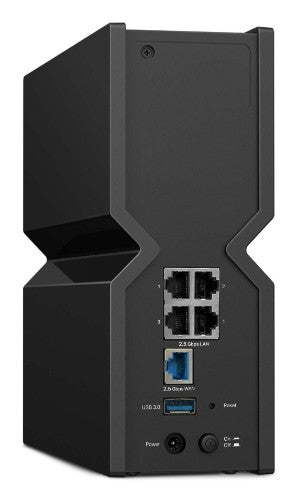

5× 2.5 Gbps Ports for Full Multi-Gigabit Connectivity
One 2.5 Gbps WAN port maximizes home internet speeds with up to 2.5× the wired speed of a typical Gigabit Ethernet port. The additional four 2.5 Gbps LAN ports make Archer BE550 an ideal solution for future-proofing your home network.☆ Let’s begin the unprecedented smooth game!

Flexibly Create Whole Home Mesh WiFi
Archer BE550 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer BE550 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children
Block inappropriate content for your children and customize a time range for better online habits.

New Connection Notifications
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.

Easy Firmware Upgrades
Tired of upgrading firmware manually? OTA updates simplify firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule.

VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE550 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption to better protect the security of your home network and IoT devices.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DSL features
DSL WAN	No
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	No
Network
Network address translation (NAT)	Yes
Guest access	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Port forwarding	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Automatic channel selection	Yes
Port triggering	Yes
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Built-in FTP server	Yes
VPN server	OpenVPN Server; PPTP VPN Server; L2TP VPN Server; WireGuard VPN Server
Static route	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (6 GHz)	1
Protocols
DMZ support	Yes
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes
Management features
Universal Plug and Play (UPnP)	Yes
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Bandwidth control	Yes
MU-MIMO technology	Yes
MIMO	Yes
Cloud-managed	Yes
Performance
Firmware upgradeable	Yes
Automatic channel selection	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	9300 Mbit/s
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
WLAN data transfer rate (first band)	688 Mbit/s
WLAN data transfer rate (second band)	2880 Mbit/s
WLAN data transfer rate (third band)	5760 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	5
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security
Security algorithms	WPA, WPA3, WPA2, WPA2-Enterprise, WPA-Enterprise
Network address translation (NAT)	Yes
Guest access	Yes
Firewall security	SPI Firewall
Firewall	Yes
DMZ support	Yes
Parental control	Yes
IGMP snooping	Yes
Design
Product type	Tabletop router
LED indicators	LAN, WAN
Product colour	Black
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Packaging content
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna
Antenna design	Internal
Features
Firmware upgradeable	Yes
Power
Power source type	DC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	76 mm
Height	203 mm
Depth	231.7 mm
Packaging data
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
