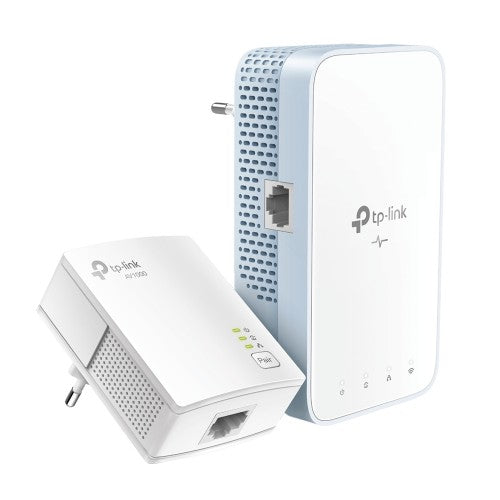

TP-Link AV1000 Gigabit Powerline ac Wi-Fi Kit

TL-WPA7517 + TL-PA7017, Gigabit Ethernet, Up to 300 m, OFDM (PLC)

Key Features

• Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters
• Dual band 802.11ac Wi-Fi - AC750 dual band Wi-Fi (433Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home

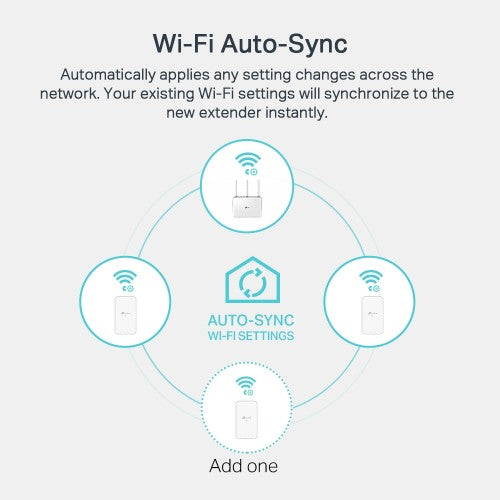

• Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move
• Gigabit Ethernet Ports - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
• Plug, Pair and Play - Quickly set up a secured Powerline network

Description

Extend AC750 Wi-Fi to Every Room Using Existing Electrical System
AV1000 Gigabit Powerline ac Wi-Fi Kit

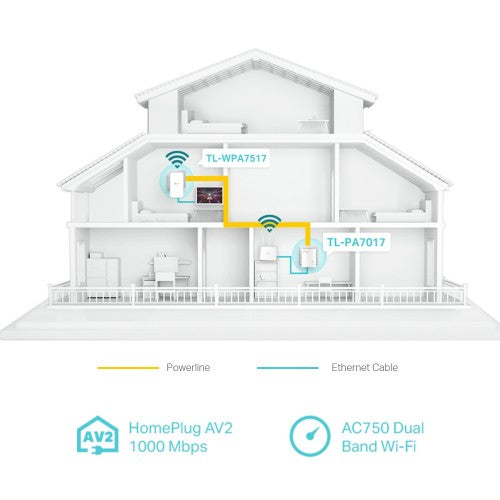

Extend Wired and Wireless Network Using Electrical System
TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.

- > No need for drilling or wire installation
- > Network passes through walls and floors
- > Expand coverage by adding more extenders
- > Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

AC750 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.

One Tap for a Unified Network

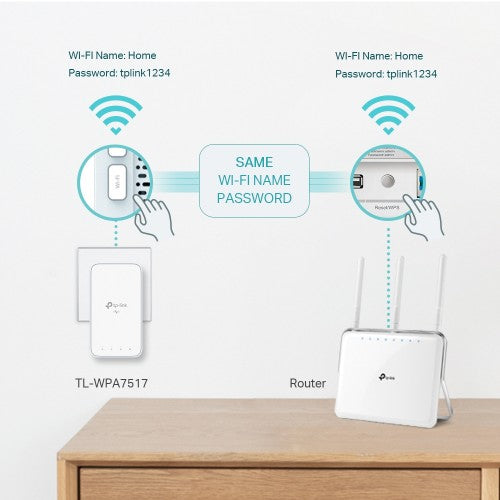

One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.

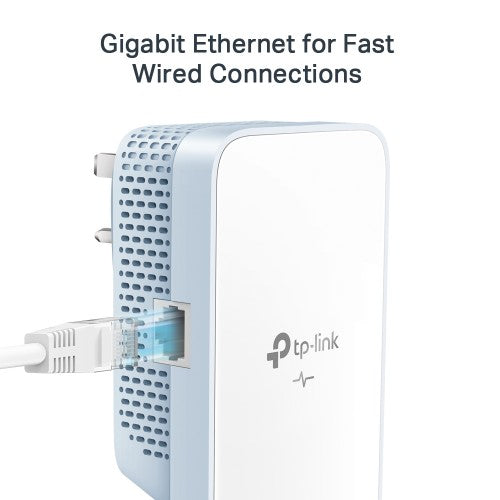

Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.

Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.

- View real-time powerline speed
- LED control (also controlled by LED On/Off button)
- Guest network

Specifications

Performance
Ethernet LAN interface type	Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
WLAN data transfer rates supported	300,433 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Wi-Fi	Yes
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u

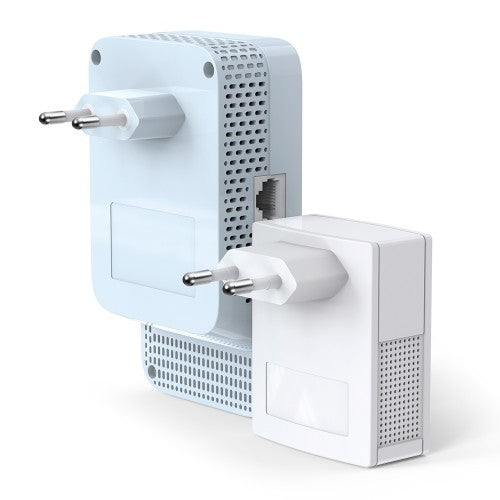

Power plug	Type E
Built-in power socket	No
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Maximum operating distance	300 m
Encryption button	Yes
Plug and Play	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Technical details
Antenna type	Internal
Ethernet LAN interface type	Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
WLAN data transfer rates supported	300,433 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Wi-Fi	Yes
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Power plug	Type E
Built-in power socket	No
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Maximum operating distance	300 m
LED indicators	LAN, PLC, Power, Wi-Fi
Encryption button	Yes
Product colour	White
Plug and Play	Yes
Certification	CE, RoHS
Harmonized System (HS) code	85171800
Power
Power consumption (typical)	6.5 W
Design
Antenna type	Internal
LED indicators	LAN, PLC, Power, Wi-Fi
Product colour	White
Certification	CE, RoHS
System requirements
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	69.5 mm
Depth	35 mm
Height	124.1 mm
Package width	230 mm
Package depth	190 mm
Package height	100 mm
Package weight	560 g
Packaging data
Package width	230 mm
Package depth	190 mm
Package height	100 mm
Package weight	560 g
Packaging content
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Logistics data
Harmonized System (HS) code	85171800
