TP-LINK | SKU:
ER703WP-4G-OUTDOOR
2% off

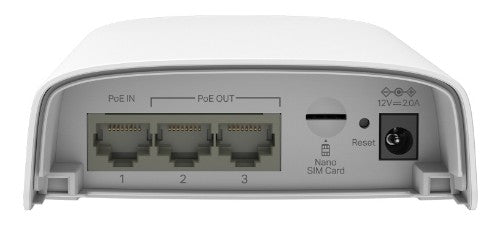

TP-Link Omada ER703WP-4G-Outdoor gateway/controller 10, 100, 1000 Mbit/s
€258.27
€264.42
Unit price
/
Unavailable
Shipping calculated at checkout.
TP-Link Omada ER703WP-4G-Outdoor gateway/controller 10, 100, 1000 Mbit/s is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
4G, Nano SIM, 300Mbps D, 50Mbps U, 2.4/5GHz
Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.
Plug and Play
Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.
Centralized Management
Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.
Easy Installation
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
Key Features
- 4G and Ethernet WAN Auto Backup with Load Balancing
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
- Centralized Management
- IP55 Weatherproofing
Description
All-in-one DeviceCombines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.
Plug and Play
Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.
Centralized Management
Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.
Easy Installation
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
Specifications
| Design | |
|---|---|
| LED indicators | Status |
| Certification | CE, FCC, RoHS |
| Mounting type | Wall mounting |
| Product colour | White |
| Features | |
| Antenna type | External |
| Short Message Service (SMS) | Yes |
| Antenna gain level (max) | 4 dBi |
| Antennas quantity | 2 |
| Performance | |
| Internal memory type | DDR4 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Control display unit | No |
| Certification | CE, FCC, RoHS |
| Mounting type | Wall mounting |
| Product colour | White |
| Data transmission | |
| Forwarding rate | 1453489 Mpps |
| Protocols | |
| DHCP server | Yes |
| Network | |
| Networking standards | IEEE 802.3at, IEEE 802.3bt |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4/5 GHz |
| Wi-Fi | Yes |
| GSM bands supported | 850,900,1800,2100 MHz |
| Forwarding rate | 1453489 Mpps |
| All services ready time | 3.8 s |
| Mobile network generation | 4G |
| SSL VPN tunnels (max) | 50 |
| SSL VPN throughput | 0.0866 Gbit/s |
| PPTP/L2TP VPN tunnels (max) | 50 |
| Data network | LTE |
| Downlink/uplink speed | 300/50 Mbit/s |
| Security | |
| Security algorithms | SSID, WPA2, WPA3 |
| MAC address filtering | Yes |
| Ports & interfaces | |
| SIM card type | NanoSIM |
| SIM card slot | Yes |
| DC-in jack | Yes |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 16.6 W |
| Weight & dimensions | |
| Width | 174 mm |
| Height | 38.7 mm |
| Depth | 100.4 mm |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Antenna type | External |
| Wi-Fi | Yes |
| Short Message Service (SMS) | Yes |
| Antenna gain level (max) | 4 dBi |
| Indication | |
| LED indicators | Status |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | External |
| Antenna gain level (max) | 4 dBi |
| Antennas quantity | 2 |
