TP-LINK | SKU:
SM311LS

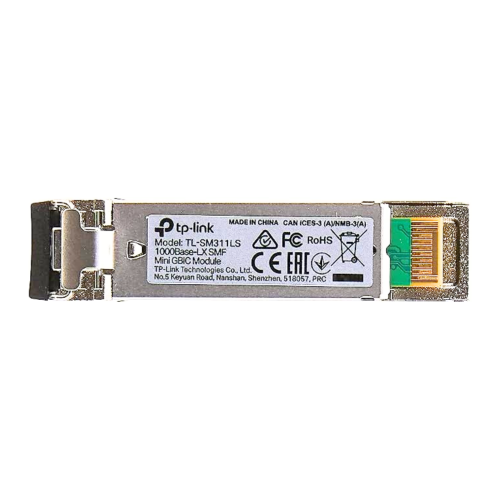

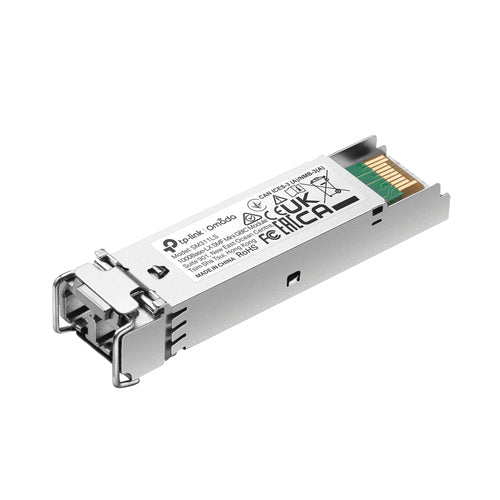

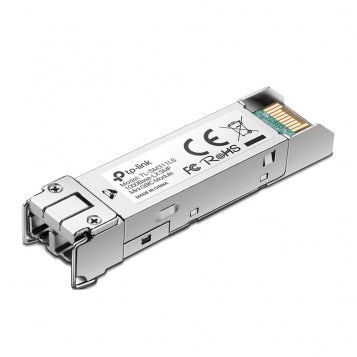

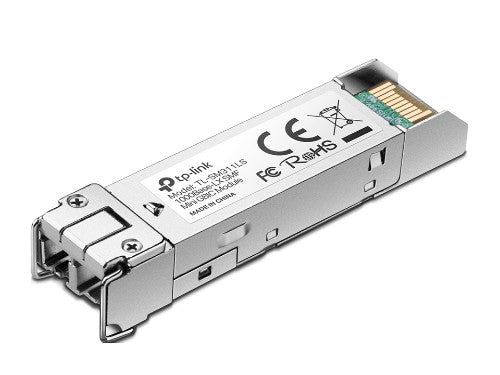

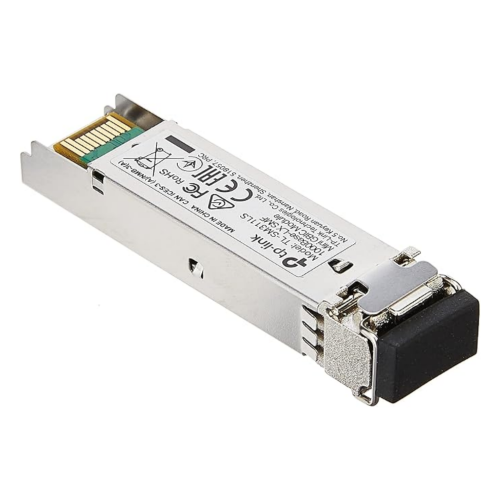

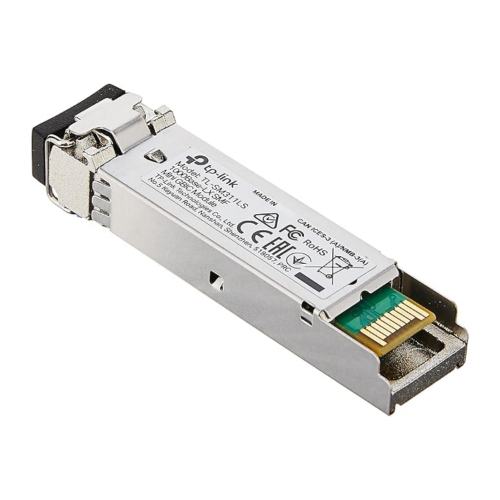

TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
€25.74
Unit price
/
Unavailable
Shipping calculated at checkout.
TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
Key Features
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
Description
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Duplex system | Full |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LX |
| Fiber ethernet cabling technology | 1000BASE |
| Product colour | Silver |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | MSA Compliant |
| Features | |
| Product colour | Silver |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | MSA Compliant |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC |
| Weight & dimensions | |
| Width | 55.4 mm |
| Depth | 14.6 mm |
| Height | 12.9 mm |
| Package depth | 207 mm |
| Package width | 38 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 38 mm |
| Package height | 38 mm |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Duplex system | Full |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Packaging data | |
| Package depth | 207 mm |
| Package width | 38 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Manual | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
