TP-LINK | SKU:
MC220L

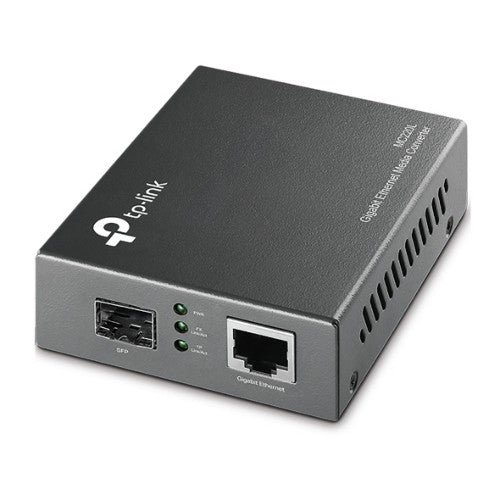

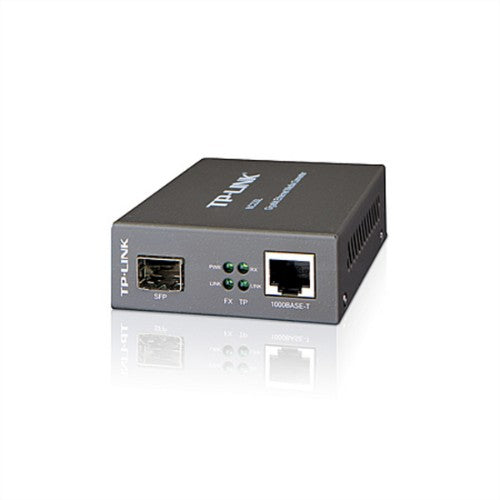

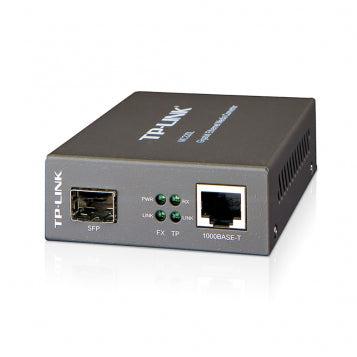

TP-Link Omada Media conv. 1000BASE-SX/LX/LH
€25.72
Unit price
/
Unavailable
Shipping calculated at checkout.
TP-Link Omada Media conv. 1000BASE-SX/LX/LH is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Media conv. 1000BASE-SX/LX/LH
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.
Key Features
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
Description
The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.
Specifications
| Network | |
|---|---|
| Cable types supported | Cat5, Cat5e, Cat6 |
| Networking standards | IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Power consumption (max) | 1.7 W |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Package depth | 204 mm |
| Package width | 65 mm |
| Package height | 65 mm |
| Package weight | 440 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package depth | 204 mm |
| Package width | 65 mm |
| Package height | 65 mm |
| Package weight | 440 g |
| Technical details | |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
