TP-LINK | SKU:
SM6110-LR
11% off

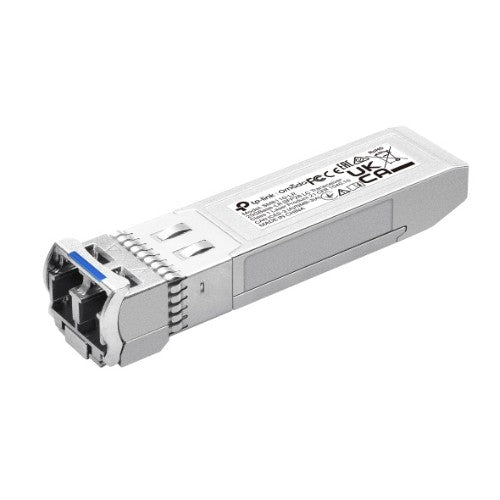

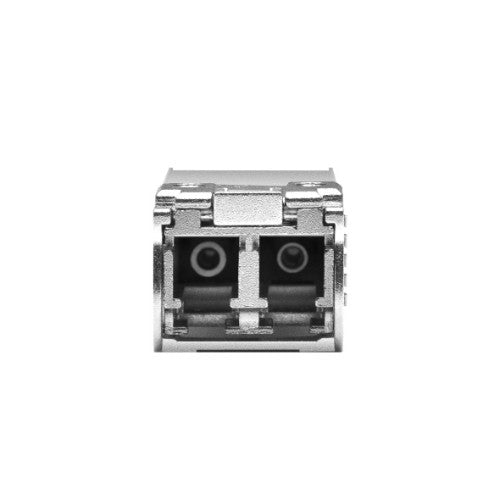

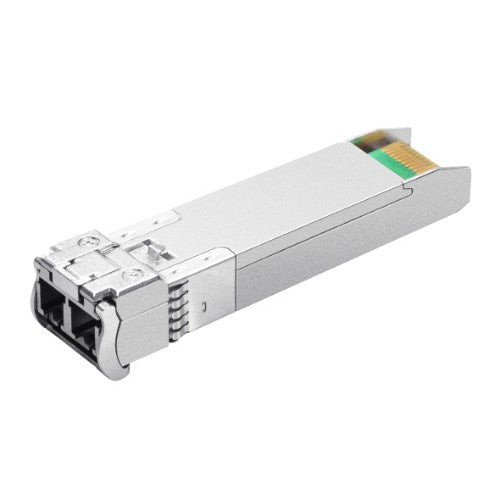

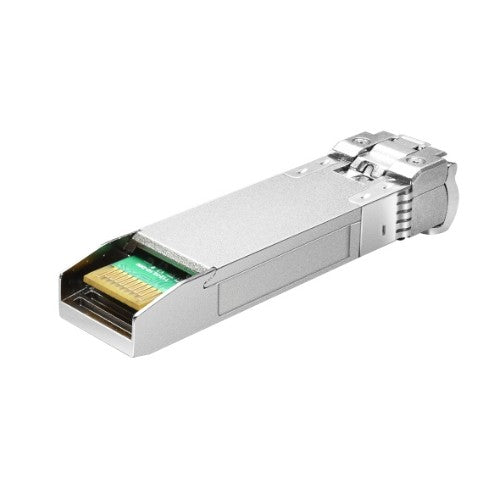

TP-Link Omada SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm
€76.60
€85.96
Unit price
/
Unavailable
Shipping calculated at checkout.
TP-Link Omada SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Omada 25GBase-LR SFP28 LC Transceiver
Key Features
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X
Description
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum data transfer rate | 25780 Mbit/s |
| Interface type | SFP+ |
| Product colour | Grey |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Features | |
| Product colour | Grey |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25780 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 14 mm |
| Height | 12 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
