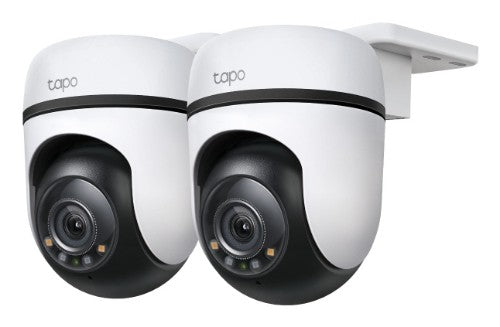

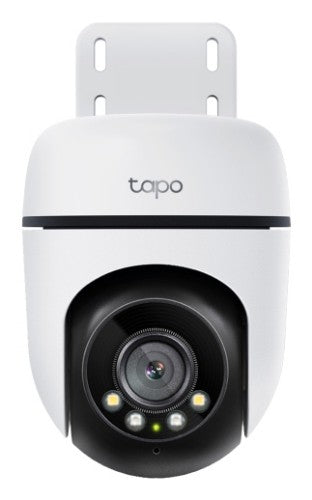

TP-Link Tapo C510W V2 Dome IP security camera Outdoor 2304 x 1296 pixels Ceiling/Wall/Pole

2304 × 1296 px, 30 fps, H.264, Wi-Fi, IP65, 9V DC Power Adapter, 100-240 V, 50/60 Hz, 123.8 × 123 × 90 mm

Key Features

• 360° All-Round Protection: Provides 360° horizontal & 130° vertical viewing range, eliminating blind spots.
• Person Detection: Smart AI identifies a person accurately, sending instant notifications through the Tapo app.
• 2K Resolution: Sharper visuals in 2K resolution surpass standard 1080p.
• Color Night Vision: Capture vibrant color night vision up to 30 meters away.
• IP65 Weatherproof: The camera is protected against jets of water and dust, ideal for outdoors.
• Sound and Light Alarm: Activate the integrated siren along with the spotlight alarm to deter unwelcomed intruders.
• Local and Cloud Storage: Save all your important moments to a microSD card2 (up to 512GB) or subscribe to Tapo Care3 for cloud service.

Description

All-Round Protection with Vivid Colors
Outdoor Pan/Tilt Security Wi-Fi Camera

360° All-Round Protection
Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots. Assign points for the camera to patrol for dynamic monitoring.

Advanced Person Detection for What Matters
Smart AI identifies a person accurately, reducing false alarm and sending real-time notifications through the Tapo app.

Build to Withstand Water & Dust
Tapo C510W is protected against jets of water and dust with IP65 weatherproof rating. It works well in rain, snow, dust, and heat.

Customizable Sound and Light Alarm
Craft your own audio alarm and tailor the intensity of the dual spotlights to fit your needs. Activate the integrated siren along with the spotlight alarm to deter unwelcome intruders effectively.

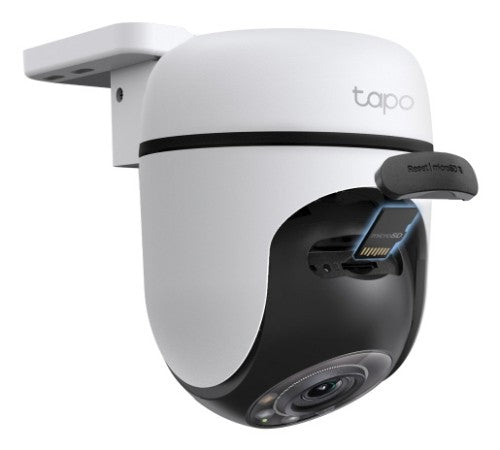

Secure Local & Cloud Storage
Save all your important moments to a microSD card1 (up to 512 GB) or subscribe to Tapo Care2 for cloud service after a free trial.

Install Where You Value Most
Tapo C510W supports multiple installation options. You can install the camera on the wall, eave, or pole3. Monitor the area where you care the most.

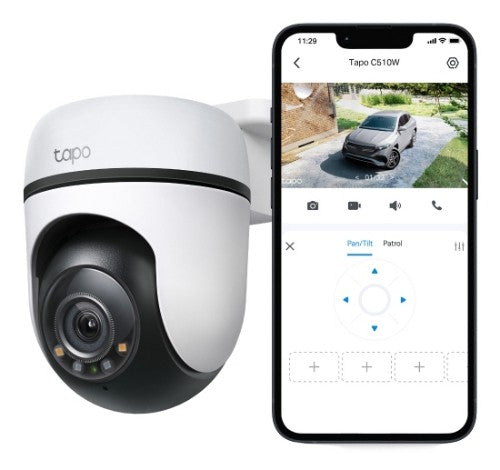

Total Control, One App
Tapo Sharing
Share memorable moments or distribute access
to your Tapo security devices with those who
matter most.

Customizable Activity Zone
Customize detection zones to receive alerts for your most important areas.

Voice Activated
Enjoy your smart life and keep an eye on your vital areas with Alexa & Google Assistant supported.

Two-Way Audio
Communicate directly with the outdoors for your convenience.

Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.

Specifications

Performance
Antenna type	Internal
Type	IP security camera
Connectivity technology	Wireless
PTZ control	Yes
Placement supported	Outdoor
Auto-tracking	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Virtual assistant	Amazon Alexa & Google Assistant
Built-in light	Yes
Design
Weatherproof	Yes
Form factor	Dome
Product colour	White
Mounting type	Ceiling/Wall/Pole
Protection features	Weather resistant
International Protection (IP) code	IP65
Camera
Tilt angle range	0 - 90°
Pan range	0 - 340°
Angle of rotation	360°
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	82.3°
Lens viewing angle, vertical	45.31°
Lens viewing angle, diagonal	97.23°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Lens system
Fixed focus	Yes
Minimum aperture number	2
Fixed focal length	3.9 mm
Night vision
Night vision	Yes
Night vision distance	29.9 m
LED type	IR
Infra-red wavelength	850 nm
Video
Video compression formats	H.264
Maximum resolution	2304 x 1296 pixels
Supported graphics resolutions	2304 x 1296
Frame rate	30 fps
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	2-way
Audio formats supported	RTSP
Number of microphones	1
Network
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN	No
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Storage
Maximum memory card size	512 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Connectivity technology	Wireless
Security
Alert notification type	Push notification
Intelligent Video Surveillance (IVS) system features	Human detection, Moving object
Video motion detection	Yes
Security algorithms	128-bit AES, WPA-PSK, WPA2-PSK
Built-in siren	Yes
Siren noise level	90 dB
Management features
Reset button	Yes
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC output voltage	9
DC output current	0.85 A
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
System requirements
Mobile operating systems supported	Android 4.4, iOS 9.0
Weight & dimensions
Package type	Box
Width	123.8 mm
Depth	123 mm
Height	90 mm
Packaging data
Package type	Box
Sustainability
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS
Packaging content
Number of cameras	2
Package type	Box
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, RoHS
Other features
Video compression formats	H.264
