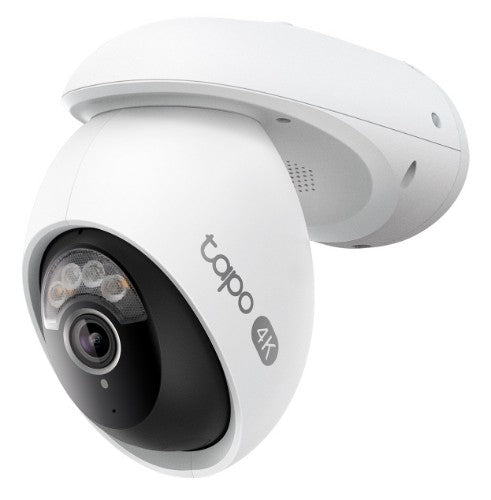

TP-Link Tapo Outdoor Pan/Tilt Security Wi-Fi Camera

1/27” Progressive Scan CMOS, 4K 8MP (3840 × 2160 px), f: 4 mm, F1.6, 802.11a/b/g/n/ac/ax, 2.4 GHz /5 GHz, IP66

Key Features

• 4K Ultimate Clarity: The camera features 4K 8MP resolution for superior clarity with upgraded image sensor, processor and lens.
• Local Facial Recognition: The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification.
• Wi-Fi 6 Dual-Band Connection: Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability.
• Starlight Color Night Vision: Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights.

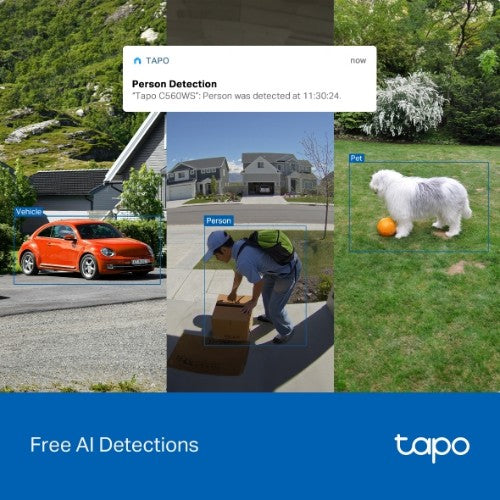

• Free Person/Pet/Vehicle Detection: Using Al technology, the camera provides alerts as it identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.
• Flexible Storage Options: Choose from local microSD† storage up to 512GB or the secure Tapo Care‡ cloud service for additional peace of mind.
• IP66 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios.

Description

Smarter, Safer 4K Security: Powered by On-Device AI.
Outdoor Pan/Tilt Security Wi-Fi Camera

4K: Unmatched Clarity, Extended Range
Tapo 4K cameras deliver sharper, more detailed live views, making them perfect for capturing finer details like license plates, human faces and moving objects.

Zoom In, See More
Equipped with 18x digital zoom and an F1.6 aperture, Tapo C560WS captures sharper details and high-quality recordings to enable precise detection with the ability to magnify images for remarkable clarity.

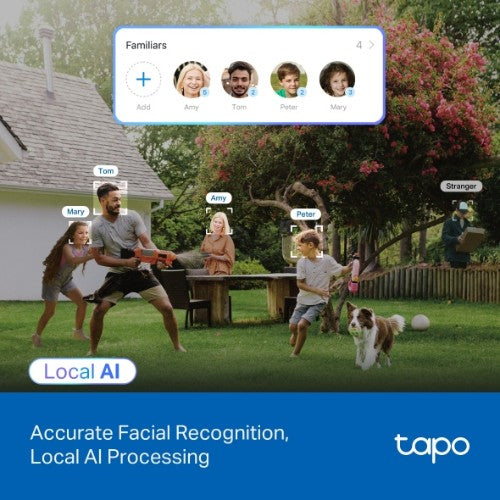

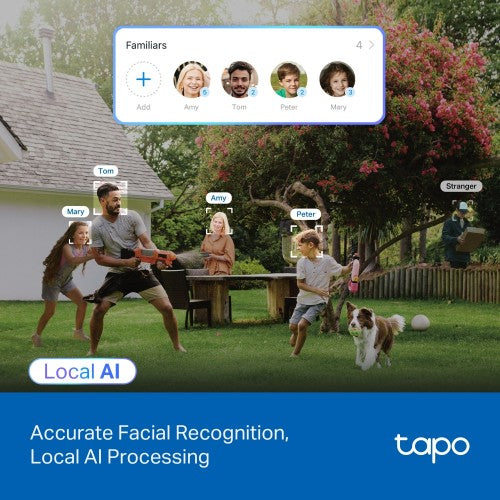

Accurate Facial Recognition, Easy Identification, Local AI Processing
The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification, reducing overall notifications to the ones that matter. All facial data is processed locally without cloud uploads, ensuring privacy and security.

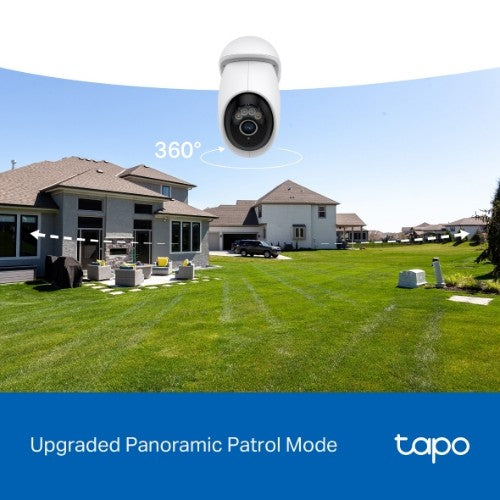

Upgraded Panoramic Patrol Mode
Set a custom schedule for the camera to automatically scan a full 360° and record or define specific viewpoints that it will visit at designated times.

Vibrant & Detailed Night Vision
Capture colorful details even in darkness with spotlights and a starlight sensor. Tapo C560WS also offers a stealthy IR black and white mode and a smart mode that automatically switches to color when a person is detected.

Wi-Fi 6 Dual-Band Connectivity: Faster & More Flexible
Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability, and reduced congestion in heavy bandwidth scenarios.The 5 GHz connection△ offers faster speed, while 2.4 GHz provides longer distance. Ethernet networking is also supported.

Solid Defense System with Custom Alarms
Ward off intruders with sound and light alarms you can personalize: record custom audio and set your preferred spotlight brightness.

Specifications

Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	FCC, RoHS, RCM
Virtual assistant	Amazon Alexa & Google Assistant
Built-in light	Yes
Design
Form factor	Bulb
Product colour	White
Mounting type	Ceiling/Wall/Desk
International Protection (IP) code	IP66
Camera
Lens viewing angle, horizontal	88°
Lens viewing angle, vertical	45°
Lens viewing angle, diagonal	105°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Number of sensors	1
Lens system
Maximum aperture number	1.6
Zoom capability	Yes
Digital zoom	18x
Fixed focal length	4 mm
Night vision
Night vision	Yes
Number of illumination LEDs	2
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Video compression formats	H.264
Maximum resolution	3840 x 2160 pixels
Video formats supported	H.264
Supported graphics resolutions	3840 x 2160
Supported video modes	2160p
Frame rate	25 fps
Total megapixels	8 MP
Video recording	Yes
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	2-way
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Live view	Yes
Storage
Maximum memory card size	512 GB
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Motion sensor	Yes
Video motion detection	Yes
Security algorithms	AES, SSL/TLS
Built-in siren	Yes
Human and vehicle targets classification	Yes
Siren noise level	99 dB
Management features
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	DC
AC input voltage	100-240 V
AC input frequency	50/60 Hz
DC output voltage	12
DC output current	1 A
Certificates
Certification	FCC, RoHS, RCM
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	147.4 mm
Depth	74.7 mm
Height	165.4 mm
Packaging content
Number of cameras	1
Manual	Yes
Other features
Video compression formats	H.264
