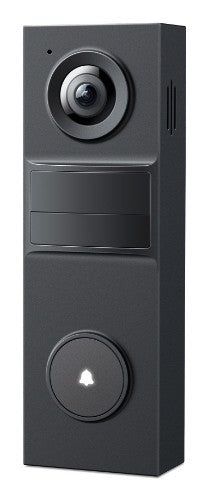

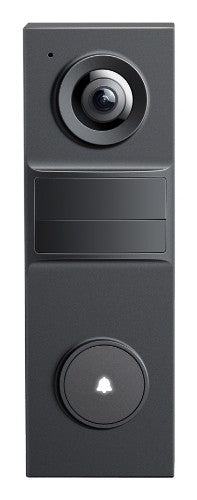

TP-Link Tapo TD20 doorbell chime Black

1/2.8'' Progressive Scan CMOS Sensor, 160°, 2 x 850 nm IR LEDs, 1 x microSD, 512 GB, 1 x USB-C, 2304 x 1296, 3 MP, 15 fps, H.264, Wi-Fi, 5200 mAh, 100-240 V, 50-60 Hz, Google Assistant, Amazon Alexa, IP54, iOS 9.0, Android 4.4, Black, 140 x 46 x 30.2 mm

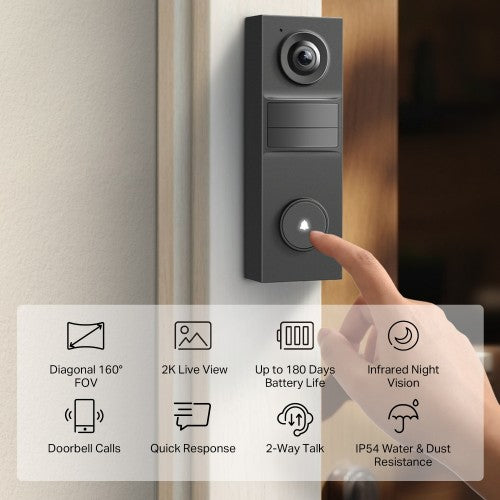

Key Features

• Sharp 2K Live View
• Ultra-Wide 160° FOV
• Accurate Alerts: AI Detection with No Fees
• Doorbell Calls
• Quick Response
• Two-Way Audio

Description

- Sharp 2K Live View: When it comes to protecting your home, every detail matters. With a clear 2K video, nothing will go unnoticed.
- Ultra-Wide 160° FOV: Offers exceptional coverage, ensuring you see everything from head to toe in a single, uninterrupted frame.
- Accurate Alerts: AI Detection with No Fees: Receive smart, real-time notifications when people are at your doorstep – no subscription required.
- Doorbell Calls: Get a call when a visitor presses your doorbell, and talk to them instantly.
- Quick Response: When you're busy, send a preset Quick Response to reply to your visitor.
- Two-Way Audio: Have a real-time conversation with visitors at your door with clear video.
- Custom Activity Zones: Only get alerts when people enter your specified zones.
- Battery Powered: Built-in 5,200mAh battery provides up to 180 days of battery life per charge.
- Tapo Solar Panel Supported: Enjoy maintenance-free security.

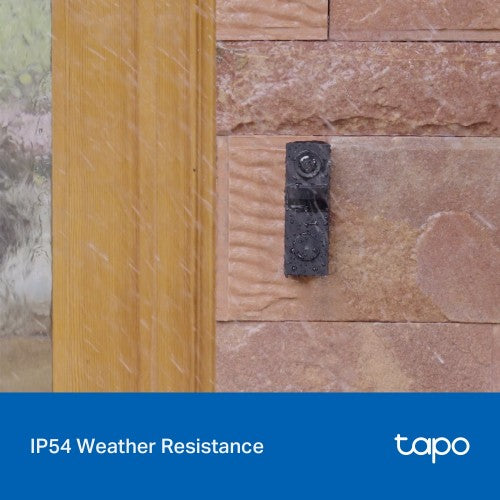

- IP54 Weatherproof: Built to handle rain, dust, and changing seasons.
- Seamless Integration: Get instant chime alerts with your existing Tapo Hub or smart assistant.
- Local and Cloud Storage: Supports microSD card (up to 512GB) and Tapo Care cloud services.

See Everything in 2K, Day or Night

When it comes to protecting your home, every detail matters. With clear 2K video, nothing will go unnoticed.

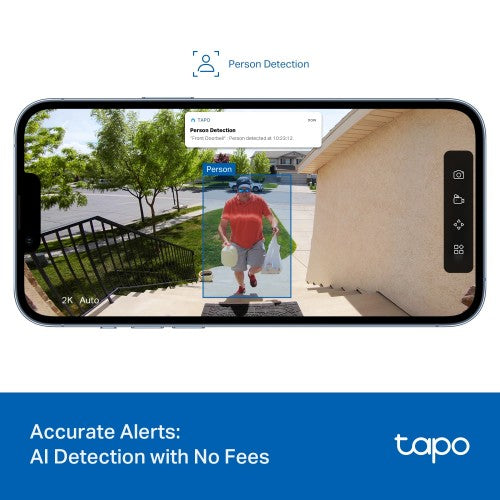

Accurate Alerts: AI Detection with No Fees

Gain peace of mind and receive smart, real-time notifications with AI detection that alerts you when people are at your doorstep – no subscription required.

Doorbell Calls: Never Miss a Visitor

Get a doorbell call when some presses your doorbell and talk to them instantly - just like a regular phone call. No need to unlock the screen or open the Tapo App manually.

Secure Local Storage

Up to 512GB of free local storage equals 1053 hours (about 44 full days) of 2K video storage. Secure your microSD card with a password through the Tapo app for enhanced privacy protection.

Tapo Care Cloud Service

Receive rich notifications with snapshots, encrypted protection, data backups, and 30-day video clip history with Tapo Care cloud services.

Precise Positioning with Wedge

The included wedge allows you to tilt the camera for optimal viewing of your desired area.

Option 1: Screw Mount

Drill holes using the mounting template, insert anchors, and screw in the bracket (with or without wedge). Slide the Tapo Doorbell Mini onto the bracket until it clicks, then tighten the bottom screw.

Option 2: 3M Adhesive

Using the 3M double-sided adhesive strips, stick the bracket (with or without the wedge) to the home. Slide the Tapo Doorbell Mini onto the bracket until it clicks, then tighten the bottom screw.

Specifications

Design
Product colour	Black
Reset button	Yes
Features
Connection type	Wired
Built-in microphone	Yes
Motion sensor	Yes
Weatherproof	Yes
International Protection (IP) code	IP54
Wi-Fi	Yes
Wi-Fi frequency	2.4 GHz
Works with the Google Assistant	Yes
Works with Amazon Alexa	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Built-in speaker(s)	Yes
Detection distance	7.6 m
Mobile operating systems supported	Android 4.4, iOS 9.0
Camera
Maximum video resolution	2304 x 1296 pixels
Viewing angle	160°
Night vision	Yes
Infra-red wavelength	850 nm
Megapixel (approx.)	3 MP
Frame rate	15 fps
Fixed focal length	2.4 mm
F-number (relative aperture)	2.2
Night vision distance	7.6 m
Video formats supported	H.264
Storage
Memory card slot(s)	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Power
Power source type	Battery
Input voltage	100-240 V
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	5200 mAh
AC input frequency	50-60 Hz
Operational conditions
Operating temperature (T-T)	-20 - 45 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width	140 mm
Depth	46 mm
Height	30.2 mm
Packaging content
Cables included	USB Type-C
Mounting kit	Yes
Mounting bracket(s) included	Yes
Quick start guide	Yes
Screws included	Yes
