TP-LINK | SKU:
VIGI NVR2016H-16MP

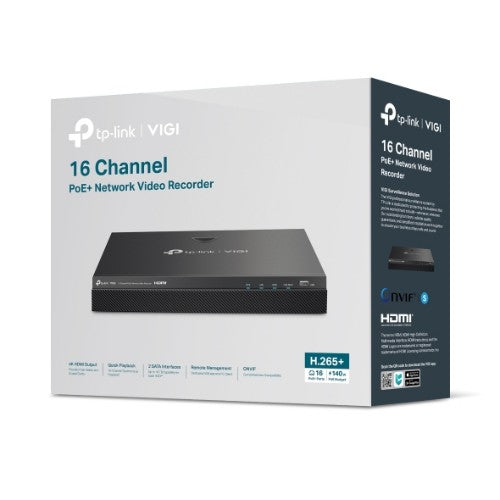

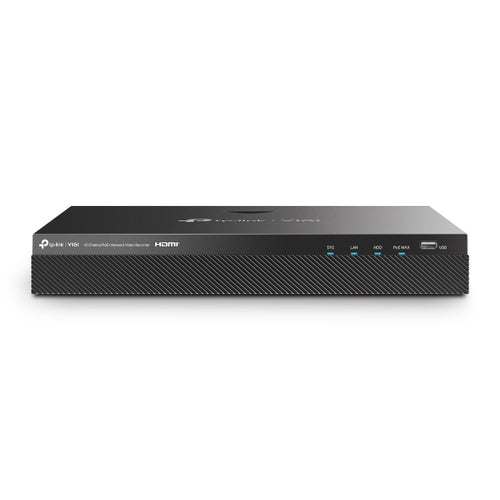

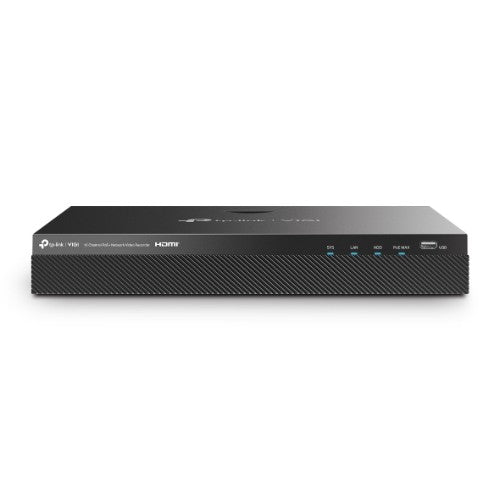

TP-Link VIGI NVR2016H-16MP network video recorder Black
€641.08
Unit price
/
Unavailable
Shipping calculated at checkout.
TP-Link VIGI NVR2016H-16MP network video recorder Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
TP-Link VIGI NVR2016H-16MP, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz,..., G.711 A-law, G.711 μ-law, G.726
Description
TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 VSpecifications
| Performance | |
|---|---|
| Video input channels | 16 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.726 |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Playback controls | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Recording modes | Manual, Schedule |
| Maximum frame rate | 30 fps |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video motion detection | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Output bandwidth | 60 Mbit/s |
| Input bandwidth | 80 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Storage | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| eSATA | Yes |
| DC-in jack | Yes |
| Line-in | Yes |
| Audio output | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| HDMI ports quantity | 1 |
| Features | |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Reset button | Yes |
| Product colour | Black |
| Power | |
| Output voltage | 53.5 V |
| Output current | 2.43 A |
| Power consumption (max) | 40 W |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 285 mm |
| Height | 45 mm |
| Weight | 2.1 kg |
| Package weight | 4.1 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | AC |
| AC adapter included | Yes |
