Tripp Lite N484-3M8-LC12 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity

40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity

Key Features

• For use with N484-01U or N484-00U chassis
• Simple installation with no tools required
• Factory-terminated connectors
• Supports 40 GbE internally using OM4 fiber optic cable
• Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections
• Designed for use with recommended cabling

Description

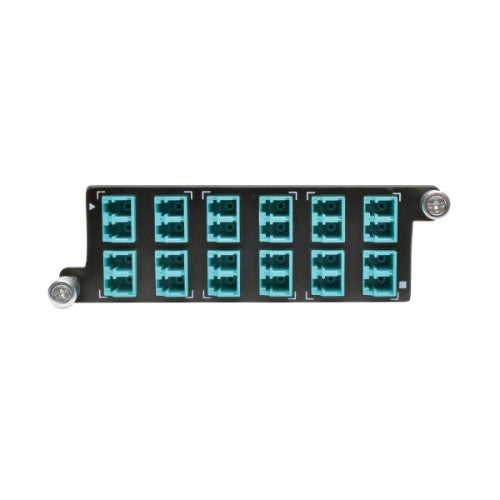

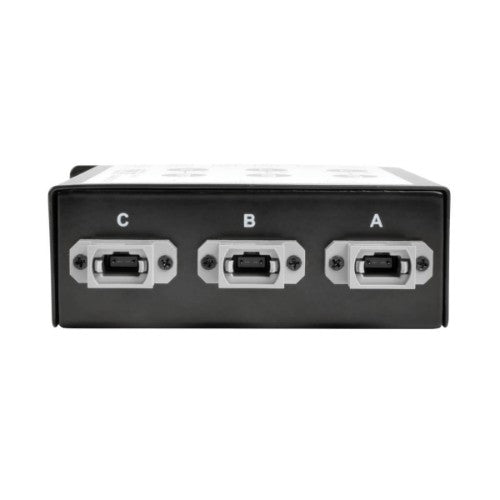

The N484-3M8-LC12 40/100Gb to 10/25Gb Breakout Cassette works in tandem with N484-01U or N484-00U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. It’s compatible with recommended cabling, including the N820-, N821-, N844-, N845- and N858 Series. Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity.

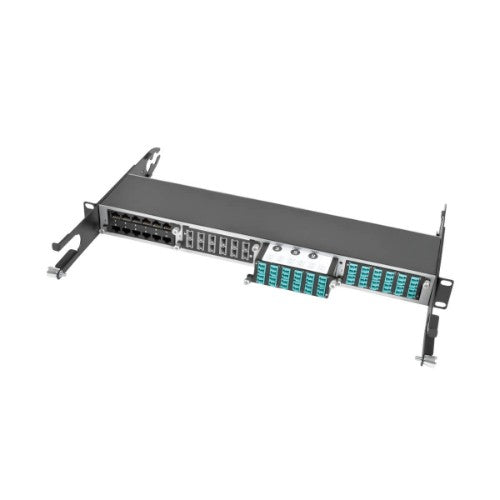

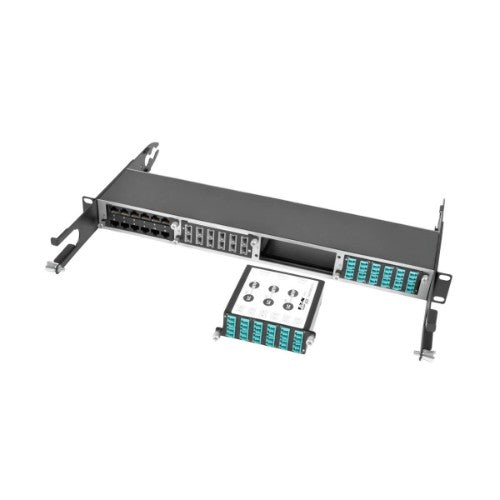

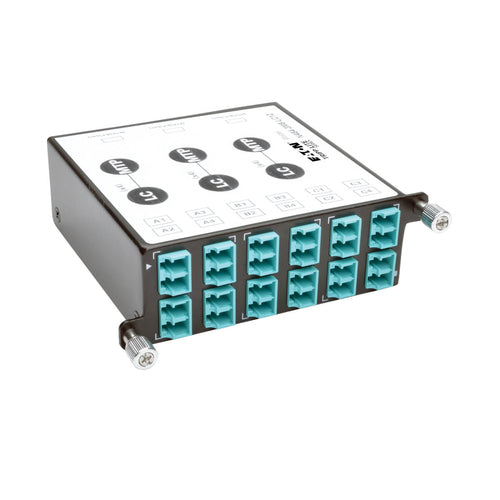

The cassette’s modular design installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N820-01M-T cables, into the cassette using the cable’s convenient push/pull tabs. Up to four N484-3M8-LC12 cassettes fit in the N484-01U 1U enclosure panel, and one cassette fits in the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage.

The N484-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.

Specifications

Network
Ethernet interface type	40 Gigabit Ethernet
Maximum data transfer rate	40000 Mbit/s
Ports quantity	12
Networking standards	IEEE 802.3ae
Connector(s)	MTP
Design
Product colour	Black
Weight & dimensions
Width	111.8 mm
Weight	360 g
Height	35.6 mm
Depth	94 mm
Package weight	440 g
Package width	195.6 mm
Package height	40.6 mm
Packaging data
Package weight	440 g
Package depth	149.9 mm
Package width	195.6 mm
Package height	40.6 mm
Features
Product colour	Black
Technical details
Package width	195.6 mm
Package height	40.6 mm
Networking standards	IEEE 802.3ae
Colour
Product colour	Black
Logistics data
Products per pallet	1 pc(s)
Master (outer) case gross weight	4.58 kg
Products per master (outer) case	10 pc(s)
Master (outer) case width	396.2 mm
Master (outer) case length	226.1 mm
Master (outer) case height	160 mm
Master (outer) case GTIN (EAN/UPC)	10037332191363
Country of origin	China
