Tripp Lite | SKU:
N820-02M

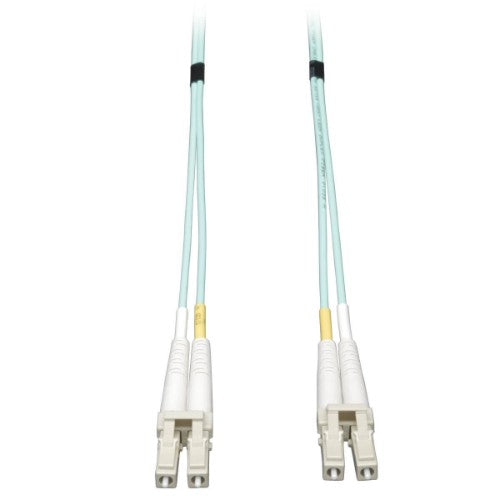

Tripp Lite N820-02M 10G Duplex Multimode 50/125 OM3 LSZH Fiber Optic Cable (LC/LC), Aqua, 2 m (6 ft.)
€13.18
Unit price
/
Unavailable
Shipping calculated at checkout.
Tripp Lite N820-02M 10G Duplex Multimode 50/125 OM3 LSZH Fiber Optic Cable (LC/LC), Aqua, 2 m (6 ft.) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
10G Duplex Multimode 50/125 OM3 LSZH Fiber Optic Cable (LC/LC), Aqua, 2 m (6 ft.)
10G Ethernet speeds to 300 m @ 850 nm
High speed, high bandwidth, low cost
Ideal for fibre channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Use with VCSEL and LED laser light sources
Backward compatible with legacy LANs
Key Features
- OM3 rated for 10G Ethernet applications
- Low-smoke, zero halogen (LSZH) aqua-colored jacket
- Max 10G distance of 300 m @ 850 nm
- Backward compatible with existing 50/125 fiber
Description
OM3-rated 2 m (6 ft.) cable with LC/LC connectors10G Ethernet speeds to 300 m @ 850 nm
High speed, high bandwidth, low cost
Ideal for fibre channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Use with VCSEL and LED laser light sources
Backward compatible with legacy LANs
Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 10 Gbit/s |
| Wavelengths supported | 850 nm |
| Product colour | Blue |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 177.8 mm |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 30 g |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Master (outer) case GTIN (EAN/UPC) | 10037332134667 |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Weight & dimensions | |
| Cable length | 2 m |
| Package width | 177.8 mm |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 30 g |
| Other features | |
| Core / cladding diameter | 50/125 µm |
| Logistics data | |
| Master (outer) case width | 149.9 mm |
| Master (outer) case length | 101.6 mm |
| Master (outer) case height | 190.5 mm |
| Master (outer) case gross weight | 330 g |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case GTIN (EAN/UPC) | 10037332134667 |
