Tripp Lite PDUMH32HVNET 7.4kW Single-Phase Switched PDU, LX Interface, 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 3.6m Cord, 2U Rack-Mount, TAA

7.4kW Single-Phase Switched PDU, LX Interface, 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 3.6m Cord, 2U Rack-Mount, TAA

Key Features

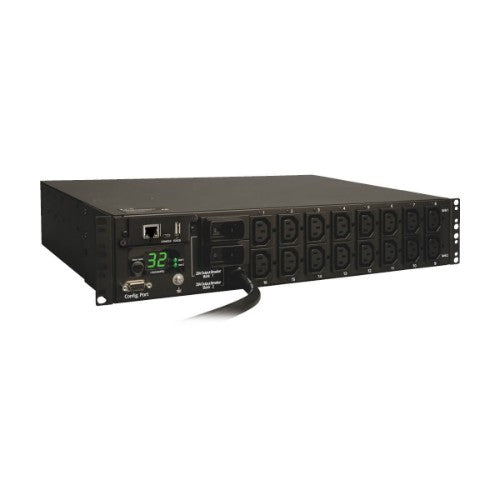

• Switched 32A 7.4kW 230V PDU; 2U horizontal rackmount

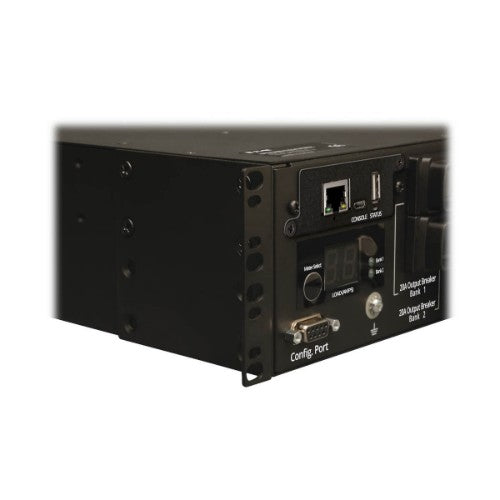

• Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature

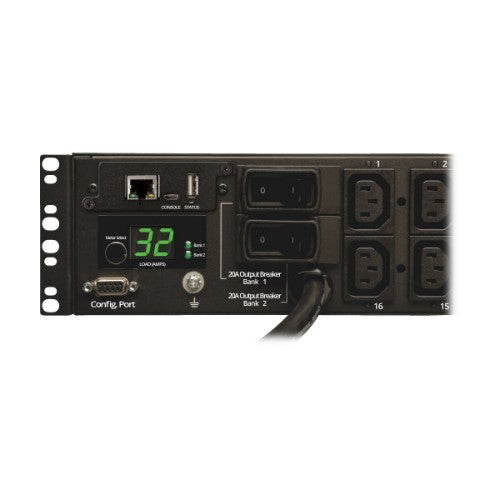

• Visual current meter; Reversible housing

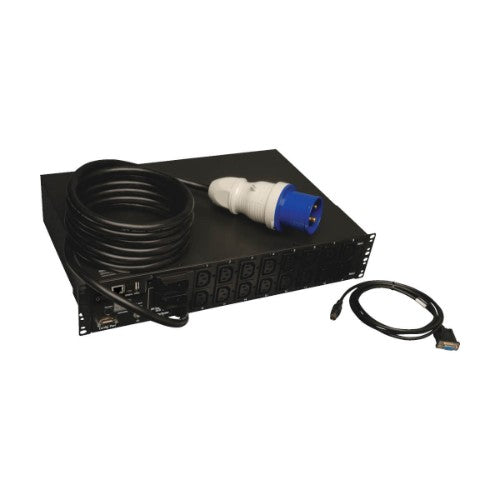

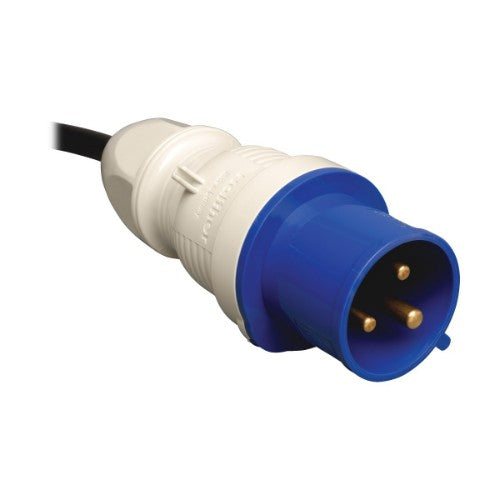

• Blue 230V IEC-309 32A (2P+E) input cable
• 16 C13 switched outlets with plug-lock cable retention inserts
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• Temperature, humidity and contact closure options
• TAA Compliant

Description

This Switched PDU offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real time to remotely reboot unresponsive network hardware or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via front panel current meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

Specifications

Design
PDU types	Metered
Mounting	Horizontal
Display	LCD
Product colour	Black
Certification	IEC 60950-1
Rack capacity	2U
Housing material	Metal
Ports & interfaces
AC outlets quantity	16 AC outlet(s)
AC outlet types	C13 coupler
Power plug	IEC309
Features
Cable length	3.65 m
LED indicators	Yes
Certification	IEC 60950-1
Ergonomics
Cable length	3.65 m
LED indicators	Yes
Display	LCD
Power
Nominal input voltage	230 V
Nominal output voltage	230 V
Maximum current	32 A
AC input frequency	50 - 60 Hz
Certificates
Certification	IEC 60950-1
Compliance certificates	RoHS
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 3000 m
Weight & dimensions
Weight	6.21 kg
Width	445 mm
Depth	317.5 mm
Height	89 mm
Package width	429.3 mm
Package depth	500.4 mm
Package height	195.6 mm
Package weight	7.44 kg
Packaging data
Package width	429.3 mm
Package depth	500.4 mm
Package height	195.6 mm
Package weight	7.44 kg
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
