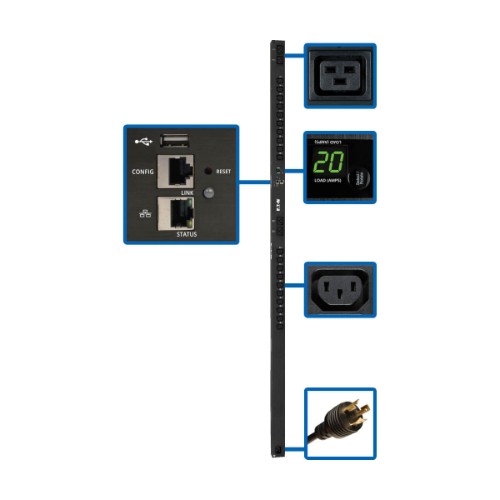

Description

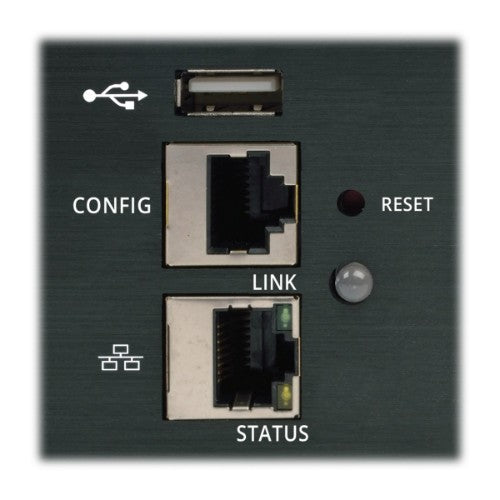

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

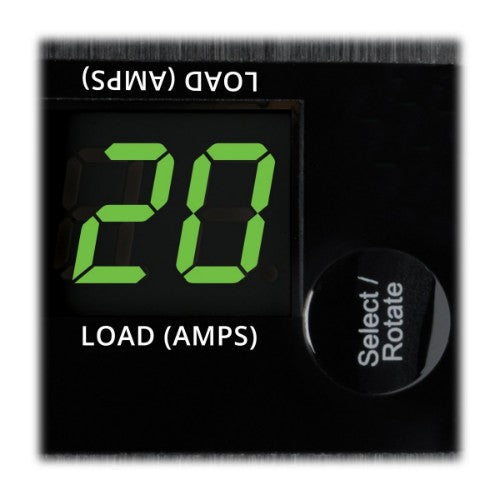

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.,
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Switched |
| Mounting | Vertical |
| Display | LCD |
| Product colour | Black |
| Certification | TAA, UL, CE, FCC, NOM, EN55022:2010+2011, EN55024:2010 |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |

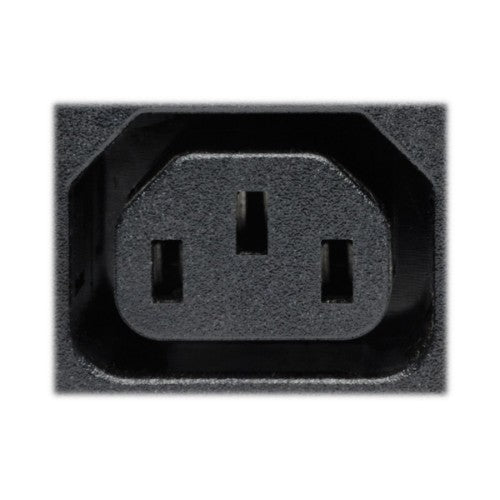

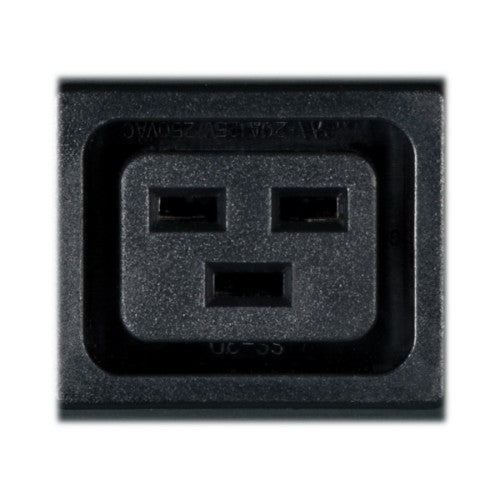

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Features | |
| Cable length | 3.05 m |
| LED indicators | Power, Status |
| Certification | TAA, UL, CE, FCC, NOM, EN55022:2010+2011, EN55024:2010 |
| Management features | |
| Supported network protocols | HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP |
| Ergonomics | |
| Cable length | 3.05 m |
| LED indicators | Power, Status |
| Display | LCD |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum current | 20 A |
| Certificates | |
| Certification | TAA, UL, CE, FCC, NOM, EN55022:2010+2011, EN55024:2010 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Dimensions (WxDxH) | 56 x 67 x 17778 mm |
| Weight | 3.86 kg |
| Width | 56 mm |
| Depth | 67 mm |
| Height | 17778 mm |
| Package width | 162.6 mm |
| Package depth | 1854.2 mm |
| Package height | 134.6 mm |
| Package weight | 6.44 kg |
| Packaging data | |
| Package width | 162.6 mm |
| Package depth | 1854.2 mm |
| Package height | 134.6 mm |
| Package weight | 6.44 kg |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
