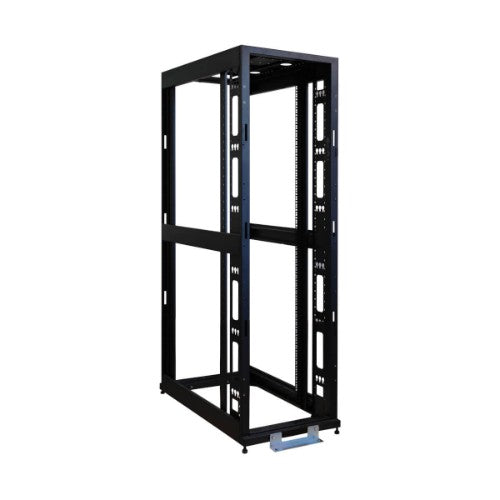

Tripp Lite SR42UBEXPND 42U Standard-Depth 4-Post Premium Open Frame Rack - No Doors or Side Panels

42U Standard-Depth 4-Post Premium Open Frame Rack - No Doors or Side Panels

Key Features

• 42U premium open frame rack includes no sides or doors
• 4 interior vertical posts with unthreaded square hole openings
• Standard 24 in. (600 mm) width and 42 in. (1050 mm) depth for optimizing floor space
• Ships fully assembled for use right away
• 3500 lbs (1588 kgs) stationary and 2250 lbs (1020.6 kgs) rolling load capacity
• Preinstalled heavy-duty 3 in. casters and leveling feet
• Designed to roll through a standard 7-ft. (2.13 m) doorway
• Includes 50 M6 cage nuts and 50 M6 screws for mounting equipment

Description

This SmartRack open frame rack has no doors or side panels. It features integrated baying tabs to combine multiple racks in rows for data center applications. It is compatible with hot-aisle/cold-aisle configurations.

The SR42UBEXPND houses 3500 lbs (1588 kgs) of standard 19-inch rack equipment in 42U. Square mounting holes on its rear and front vertical mounting rails adjust in quarter-inch increments from 4 to 37 inches. Each rack space is numbered for at-a-glance reference. An easy-to-read depth index ensures consistent rail placement without requiring time-consuming measurements.

Two vertical mounting rails support toolless button-mount 0U installation of four compatible PDUs and cable managers. This makes it easier to route cabling to rack equipment and reduces cord clutter.

Components are grounded to the enclosure frame. Threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR42UBEXPND includes preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

Specifications

Weight & dimensions
Package depth	1155.7 mm
Package width	660.4 mm
Package height	2159 mm
Package weight	95.7 kg
Width	600.2 mm
Depth	1092.2 mm
Height	1993.9 mm
Weight	73 kg
Maximum weight capacity	1361 kg
Features
Rack capacity	42U
Type	Freestanding rack
Maximum weight capacity	1361 kg
Product colour	Black
Certification	EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS, UL 60950
Packaging data
Package depth	1155.7 mm
Package width	660.4 mm
Package height	2159 mm
Package weight	95.7 kg
Technical details
Package width	660.4 mm
Package height	2159 mm
Type	Freestanding rack
Harmonized System (HS) code	8517.79.0000
Rack capacity	42U
Colour
Product colour	Black
Certificates
Certification	EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS, UL 60950
Logistics data
Master (outer) case width	660.4 mm
Master (outer) case length	1155.7 mm
Master (outer) case height	2159 mm
Master (outer) case gross weight	95.7 kg
Products per master (outer) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	8517.79.0000
