Tripp Lite SRBOLTDOWN SmartRack Bolt-Down Kit - Secures stabilizing brackets or plates to facility floor
Tripp Lite SRBOLTDOWN SmartRack Bolt-Down Kit - Secures stabilizing brackets or plates to facility floor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Key Features
- Bolt-down Kit for cabinets and racks
- Enables SmartRack to be secured to concrete floor
- Provides extreme stabilization and security
- Includes required nuts and bolts
Description

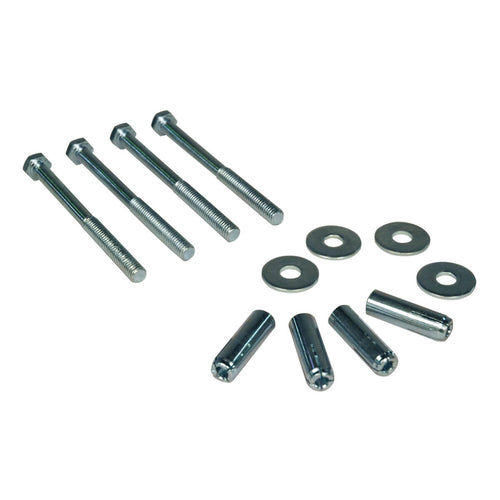

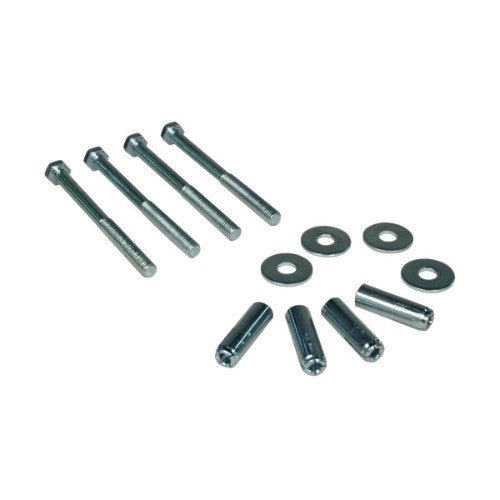

SmartRack® SRBOLTDOWN provides extreme stabilization and security for cabinets and racks. The bolt-down kit enables SmartRack to be secured to a concrete floor. SRBOLTDOWN includes four concrete inserts, four bolts and four fender washers.Technical Notes: We recommend using a 1/2-inch concrete drill. Hole must be 4.5 inches to 4.75 inches deep. Mark the hole, drill the hole, then tap the anchor into the hole. Thread the bolt into the anchor a few threads only. Tap the bolt with a hammer (with anchor attached) until it bottoms out in the hole, then tighten the bolt.
Specifications
| Features | |
|---|---|
| Product colour | Aluminium |
| Harmonized System (HS) code | 8302.50.0000 |
| Country of origin | China |
| Weight & dimensions | |
| Package width | 104.9 mm |
| Package height | 26.9 mm |
| Package depth | 152.9 mm |
| Package weight | 450 g |
| Packaging data | |
| Package width | 104.9 mm |
| Package height | 26.9 mm |
| Package depth | 152.9 mm |
| Package weight | 450 g |
| Colour | |
| Product colour | Aluminium |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332144604 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 224.8 mm |
| Master (outer) case length | 329.9 mm |
| Master (outer) case height | 194.8 mm |
| Master (outer) case gross weight | 14 kg |
| Products per master (outer) case | 24 pc(s) |
| Harmonized System (HS) code | 8302.50.0000 |
