Tripp Lite SRW12U SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure

SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure

Key Features

• Maximum load capacity of 200 lbs (90.7 kgs)
• Locking steel cabinet vented at sides, front, top and bottom
• Flow-through ventilation keeps equipment cool
• Secures 12U of 19 in. rack equipment up to 16.5 in. deep
• Mounts to wall or rolls on floor (with optional SRCASTER)

Description

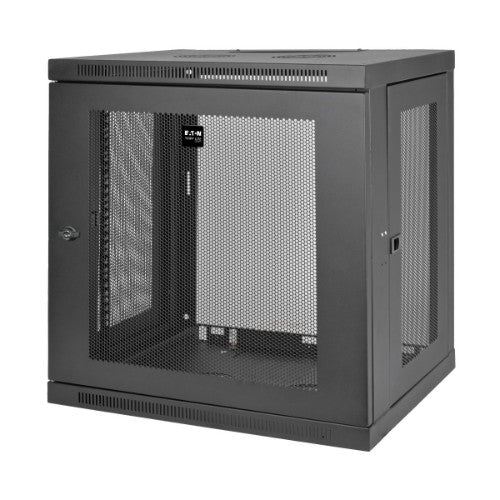

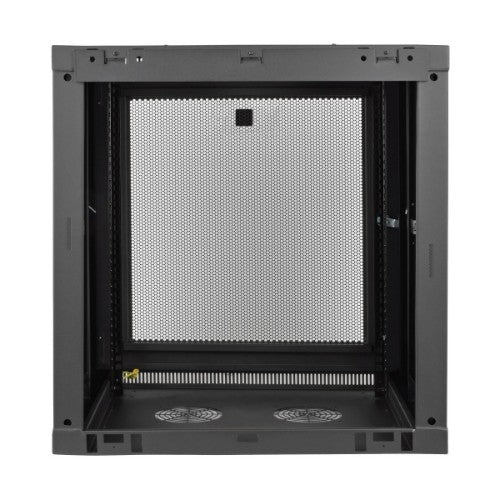

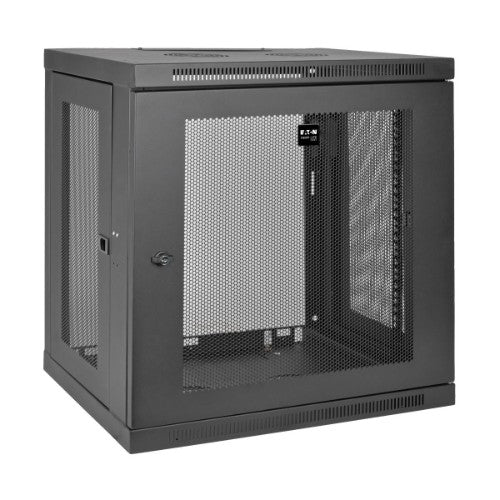

The SRW12U SmartRack® 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

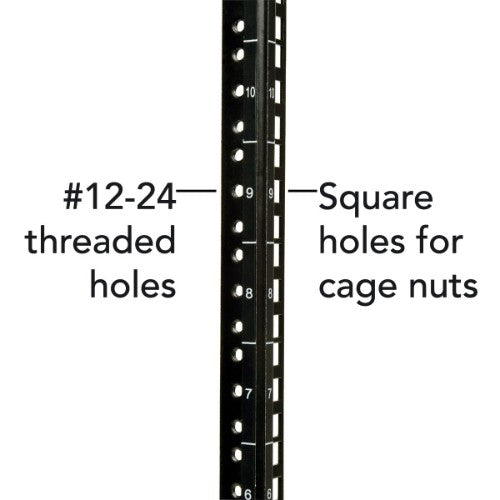

The SRW12U comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.

Specifications

Weight & dimensions
Package depth	713.7 mm
Package width	523.2 mm
Package height	670.6 mm
Package weight	20 kg
Width	596.9 mm
Depth	444.5 mm
Height	637 mm
Weight	20 kg
Maximum weight capacity	90.7 kg
Packaging content
Wall mounting kit	Yes
Manual	Yes
Features
Rack capacity	12U
Type	Wall mounted rack
Maximum weight capacity	90.7 kg
Product colour	Black
Certification	RoHS, EIA-310-E
Packaging data
Wall mounting kit	Yes
Manual	Yes
Package depth	713.7 mm
Package width	523.2 mm
Package height	670.6 mm
Package weight	20 kg
Technical details
Package width	523.2 mm
Package height	670.6 mm
Type	Wall mounted rack
Harmonized System (HS) code	8517.79.0000
Rack capacity	12U
Colour
Product colour	Black
Certificates
Certification	RoHS, EIA-310-E
Logistics data
Master (outer) case width	523.2 mm
Master (outer) case length	713.7 mm
Master (outer) case height	670.6 mm
Master (outer) case gross weight	20 kg
Products per master (outer) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	8517.79.0000
