Veracity | SKU:
VLS-1P-B
3% off

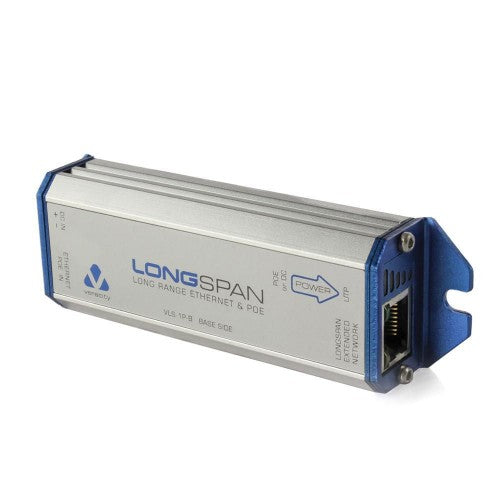

Veracity LONGSPAN Base Network transmitter Blue, Metallic
€225.48
€231.63
Unit price
/
Unavailable
Shipping calculated at checkout.
Veracity LONGSPAN Base Network transmitter Blue, Metallic is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
Single POE LONGSPAN converter with POE in, extended POE out, and SafeView display
- As a point-to-point solution with no mid-cable equipment and smart, automatic self-configuration, installation is simple and instantaneous.
- LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
- For longer distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres and over ten times the conventional limit for cabled Ethernet.
Description
LONGSPAN Base Unit: long-range POE (powered via POE-in or VPSU-57V-X). Working together, LONGSPAN’s Base and Camera units deliver unprecedented power and bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras and other remote network devices. IP cameras can demand peak network bandwidth of several times their average data rate while transmitting critical high-activity or low-light scenes. That's why LONGSPAN has been designed to support the full 200Mbps bandwidth required for reliable 100Base-T Ethernet at up to 840 metres Cat 6 (or 690 metres Cat 5e).- As a point-to-point solution with no mid-cable equipment and smart, automatic self-configuration, installation is simple and instantaneous.
- LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
- For longer distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres and over ten times the conventional limit for cabled Ethernet.
Specifications
| Performance | |
|---|---|
| Duplex system | Full |
| Type | Network transmitter |
| Maximum transfer distance | 1000 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 200 Mbit/s |
| Cable types supported | Cat5e, Cat6, Fiber |
| Auto-negotiation | Yes |
| Technical details | |
| Duplex system | Full |
| LED indicators | Yes |
| Type | Network transmitter |
| Maximum transfer distance | 1000 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 200 Mbit/s |
| Cable types supported | Cat5e, Cat6, Fiber |
| Auto-negotiation | Yes |
| Compliance certificates | RoHS |
| Network | |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
| LED indicators | Yes |
| Certification | FCC, CE, RoHS |
| Product colour | Blue, Metallic |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width | 35 mm |
| Depth | 93 mm |
| Height | 21 mm |
| Weight | 80 g |
| Colour | |
| Product colour | Blue, Metallic |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Packaging data | |
| Package width | 60 mm |
| Package depth | 137 mm |
| Package height | 31 mm |
| Package weight | 100 g |
