Vertiv Geist VP4UV0A2 power distribution unit (PDU) 30 AC outlet(s) 0U Black

Universal Rack Power Distribution Unit | 32A-63A | 208V-415V | 22kW Power Capacity | (30) Combination C13/C19 outlets | Next-Generation Interchangeable Monitoring Device (IMD) | VP4UV0A2

Key Features

• UNIVERSAL PDU: The Vertiv Geist VP4UV0A2 helps simplify the procurement process of rPDUs since users can use a single model to different types of power source. It supports input power of 32A-63A and 208V-415V in 1Phase and 3Phase configuration.

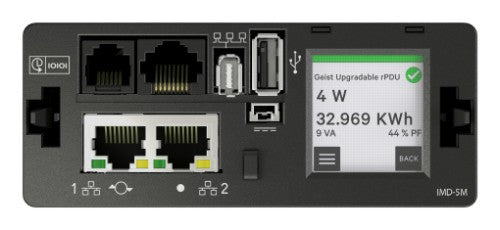

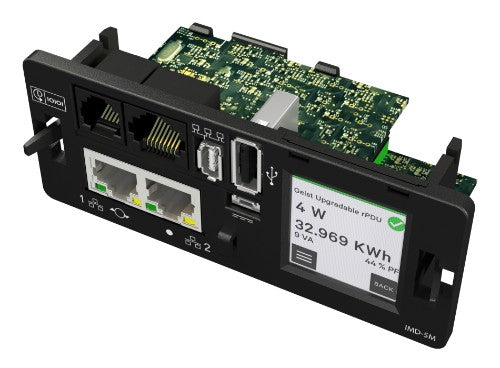

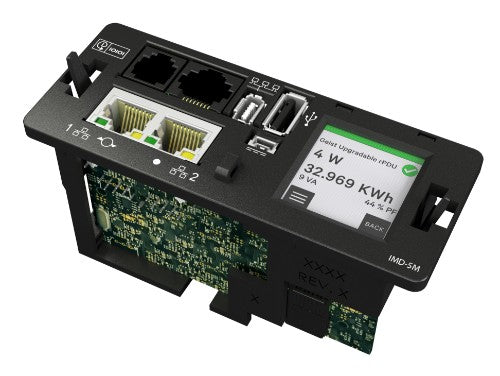

• NEXT-GENERATION IMD: Easily see your data with the 128x128 high-contrast LCD. It has an internal orientation sensor that intelligently adjusts the screen based on horizontal or vertical installation.
• SAFEGUARDS DATA: The enhanced security helps protect your data and operations. It features a secure boot that utilizes a hardware-based trust anchor. It has a redundant power-sharing port that connects two IMDs in the rack and provides backup power.
• Dual LISTED (UL/CE) & TAA-COMPLIANT: This Vertiv Geist Monitored rPDU is Dual Listed (UL/CE), TAA-compliant, and RoHS certified. It helps ensure smoother selection, procurement, and deployment process for those who are under the federal, state, and local governments.
• 100% TESTED: All Vertiv Geist RPDUs are individually tested for functionality and reliability. The unit includes a three-year warranty and is extendable to five years if unit is registered within 120 days of purchase.

Description

This Vertiv Geist VP4UV0A2 rack power distribution unit has a universal input that supports common AC power configurations. It has (30) Combination C13/C19 outlets providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single-phase and three-phase configurations. It helps simplify the procurement process of rPDUs since users can use a single model to work with different power sources. To define the input power configuration, choose the right Facility Side Cable (sold separately) to install the Vertiv Geist UPDU in your network system. The Vertiv-patented U-Lock outlets help secure plug connections and lessen the risk of downtime caused by accidental cord disconnection.

REDUNDANT POWER-SHARING
The next-generation Interchangeable Monitoring Device features a redundant power-sharing port that allows users to connect two IMDs in the rack and provide backup power to the IMD in case of power loss.

HIGH-VISIBILITY DISPLAY
This smart PDU is integrated with the next-generation rPDU IMD that displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.

ENHANCED SECURITY
Includes security enhancements that feature secure boot utilizing a hardware-based trust anchor to help ensure that data and operations are protected.

INDUSTRY CERTIFIED (UL, CE, TAA, RoHS)
Each rack mount PDU is Dual Listed (UL/CE), TAA-Compliant, and RoHS certified. It undergoes individual testing for functionality and reliability to ensure your network is powered by a reliable smart power strip. The unit comes with a 3-year warranty that can be extended to 5 years if registered within 120 days of purchase.

Specifications

Design
PDU types	Monitored
Mounting	Vertical
Display	LED
Product colour	Black
Rack capacity	0U
Ports & interfaces
USB ports quantity	1
AC outlets quantity	30 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
Cable length	3 m
Management features
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	3 m
Display	LED
Power
Nominal input voltage	240/415 V
Output voltage	240 V
Power protection features	Over current
Maximum current	63 A
Load capacity	240 VA
AC input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Weight & dimensions
Width	51 mm
Depth	64 mm
Height	1682 mm
Package weight	9.53 kg
Packaging data
Package weight	9.53 kg
