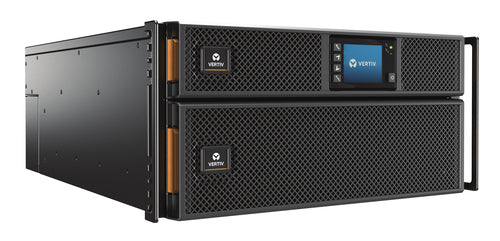

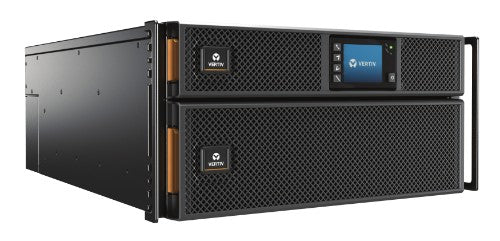

Vertiv Liebert GXT5 Double Online Conversion UPS -6000VA/6000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-6000IRT5UXLN

5U Rack/Tower | 5.50 Minute Stand-by | 230 V AC Input | 200 V AC, 208 V AC, 220 V AC Output | 2 x IEC 60320 C19, 6 x IEC 60320 C13 Receptacle(s) | Single Phase | Pure Sine Wave | Serial Port | Remote Monitoring | 5-year Warranty (3-year Standard Warranty + 2-year Extended Warranty)

Key Features

• It offers reliable, easy-to-manage power protection and battery backup with 6kVA (6kW) capacity.
• It has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
• It includes a built-in Vertiv RDU101 network communications card for remote management.
• It comes with a Vertiv 3-year warranty plus a 2-year extension for a total of 5 years in coverage.
• It is ENERGY STAR® 2.0 certified with higher efficiency, for energy savings and improved reliability.

Description

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 6kVA/6kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.

Specifications

Power
Output power	6000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	94%
Output power capacity	6 kVA
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Noise level	55 dB
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Output power	6000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	94%
Noise level	55 dB
Output power capacity	6 kVA
Input frequency	40/70 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	14.5 min
Typical backup time at full load	5.5 min
Number of batteries included	16 pc(s)
Design
Rack capacity	5U
Form factor	Tower
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Output frequency	50/60 Hz
Packaging content
Quick installation guide	Yes
Cables included	USB cable
Manual	Yes
Batteries included	Yes
Weight & dimensions
Weight	70.8 kg
Width	430 mm
Height	217 mm
Depth	630 mm
Packaging data
Quick installation guide	Yes
Cables included	USB cable
Manual	Yes
