Vertiv | SKU:
VP7U60A1

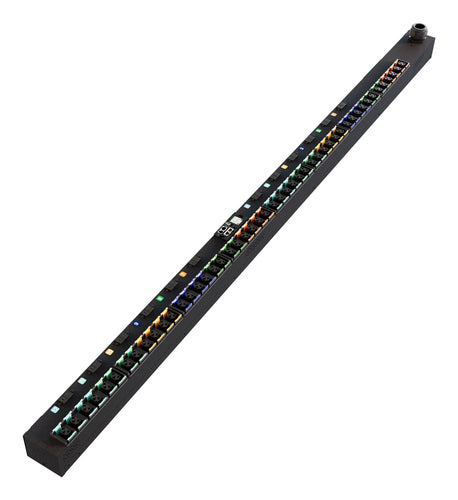

Vertiv PowerIT rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug
€3,545.30
Unit price
/
Unavailable
Shipping calculated at checkout.
Vertiv PowerIT rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug, RoHS, China RoHS, UL-listed, CE-marked, 3-year warranty extending to 5-year warranty if registered within 120 days of purchase
Key Features
- Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
- Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
- Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
- Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
- Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase
Description
The Vertiv PowerIT Switched Outlet Level Monitored High Density Rack Power Distribution Unit (rPDU) VP7U60A1 is an upgradeable, 60/63A, 240/415V WYE, 0U, vertical rPDU with input monitoring and outlet level monitoring and switching. It has 48 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also has a 3P+N+E (IP44) plug providing 43.4kW of power capacity. This model allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.Specifications
| Design | |
|---|---|
| Type | Three-phase |
| PDU types | Monitored, Switched |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
| Rack capacity | 0U |
| Ports & interfaces | |
| USB ports quantity | 1 |
| AC outlets quantity | 48 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Type E / Type F |
| Serial ports quantity | 1 |
| Features | |
| Cable length | 3.048 m |
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
| Management features | |
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
| Ergonomics | |
| Cable length | 3.048 m |
| Power | |
| Maximum power | 43400 W |
| Nominal input voltage | 240 - 415 V |
| Power protection features | Over current |
| Maximum current | 63 A |
| Certificates | |
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
| Compliance certificates | China RoHS, Trade Agreements Act (TAA), RoHS |
| Weight & dimensions | |
| Weight | 11.3 kg |
| Width | 96.5 mm |
| Depth | 76.2 mm |
| Height | 2114.6 mm |
| Package width | 279.4 mm |
| Package depth | 2209.8 mm |
| Package height | 177.8 mm |
| Package weight | 11.3 kg |
| Packaging data | |
| Package width | 279.4 mm |
| Package depth | 2209.8 mm |
| Package height | 177.8 mm |
| Package weight | 11.3 kg |
| Technical details | |
| Compliance certificates | China RoHS, Trade Agreements Act (TAA), RoHS |
| Logistics data | |
| Country of origin | United States |
