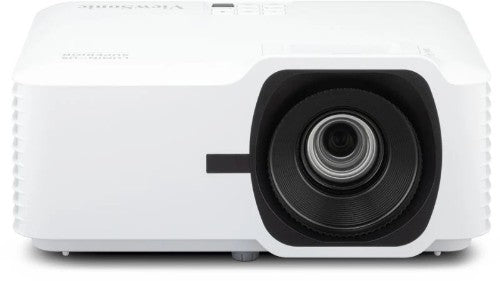

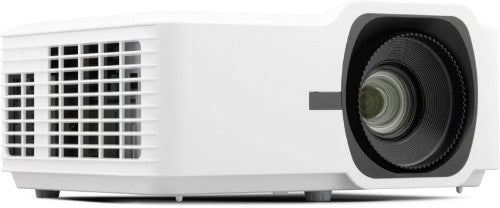

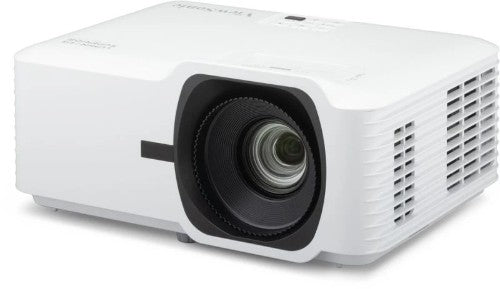

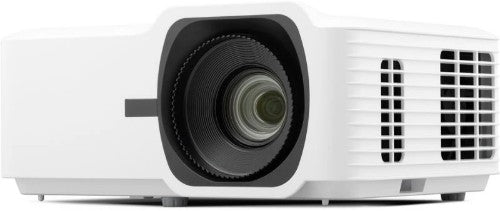

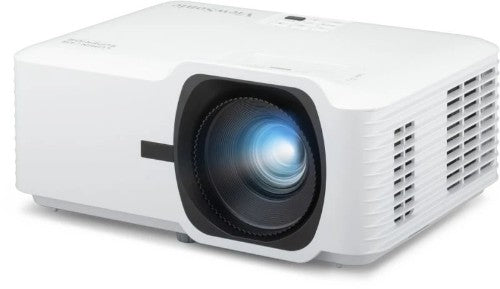

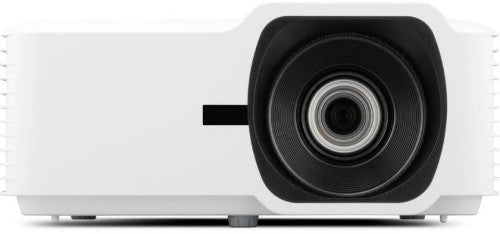

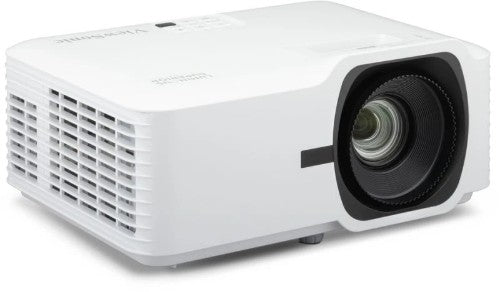

Viewsonic LS630HD data projector Standard throw projector 4000 ANSI lumens 1080p (1920x1080) White

1920x1080, 4000 ANSI Lumens, 3000000:1, 1.07 Billion Colors, HDMI, RS232, RJ45, USB Type A

Key Features

• 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
• 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
• High native contrast ratio powered by a 0.65” DMD chip and DLP technology
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
• Centralized LAN control for efficient management

Description

The LS630HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS630HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

Bright, Compact, Durable
The LS630HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Clear Visuals for Business/Education Environments
Thanks to the latest laser technology, the LS630HD achieves high brightness of 4,000 ANSI Lumens. With 1080p resolution​, the projector ensures bright and detailed images in dim or lit environments.

Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LS630HD, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.

Save on Costs and Energy
With its advanced lamp-free light source, the LS630HD offers a highly energy-efficient and cost-saving display solution by consuming up to 49% less power than competing projectors.

Enhanced Installation Flexibility
Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​

Get ​​Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

Centralized Control for Management Efficiency
The LS630HD is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.

Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.

Versatile Creative Application​s​
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LS630HD maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	1080p (1920x1080)
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	0.75 - 9.76 m
Contrast ratio (typical)	3000000:1
Zoom ratio	0.8 - 2.0:1
Zoom capability	Yes
Vertical synchronization (min)	0.024 kHz
Vertical synchronization (max)	0.12 kHz
Keystone correction, vertical	+-30°
Keystone correction, horizontal	+-30°
Horizontal synchronization (min)	15 kHz
Horizontal synchronization (max)	102 kHz
Projector brightness	4000 ANSI lumens
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Zoom ratio	0.8 - 2.0:1
Zoom capability	Yes
Focal length range	16.90 - 21.61 mm
Aperture range (F-F)	2.43 - 2.78
Throw ratio	1.13-1.47
Offset	132%
Video
Digital signal format system	HDTV
Full HD	Yes
3D	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Audio
Built-in speaker(s)	Yes
RMS rated power	15 W

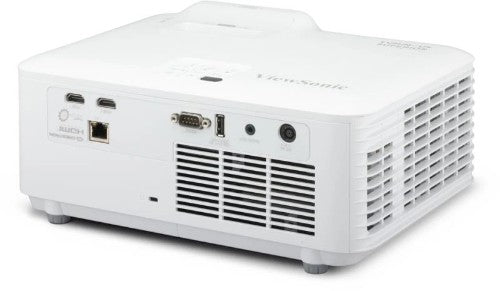

Ports & interfaces
HDMI version	1.4
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Audio (L/R) out	1
Serial interface type	RS-232
USB 2.0 Type-A ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Sound emission
Noise level	32 dB
Noise level (economic mode)	27 dB
Technical details
Product colour	White
HDCP	Yes
On Screen Display (OSD)	Yes
Digital signal format system	HDTV
Performance
Market positioning	Education
HDCP	Yes
On Screen Display (OSD)	Yes
Noise level	32 dB
Noise level (economic mode)	27 dB
Features
HDCP	Yes
On Screen Display (OSD)	Yes
Noise level	32 dB
Noise level (economic mode)	27 dB
Multimedia
Built-in speaker(s)	Yes
RMS rated power	15 W
Design
Market positioning	Education
Product type	Standard throw projector
Product colour	White
Display
Built-in display	No
Power
AC adapter output voltage	100 - 240 V
Power source	AC
Power consumption (typical)	175 W
Power consumption (standby)	0.5 W
Packaging data
Package width	400 mm
Package depth	280 mm
Package height	155 mm
Package weight	4.6 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Package width	400 mm
Package depth	280 mm
Package height	155 mm
Weight	3.1 kg
Width	286 mm
Depth	216 mm
Height	129 mm
Package weight	4.6 kg
Packaging content
Remote control included	Yes
Cables included	AC
