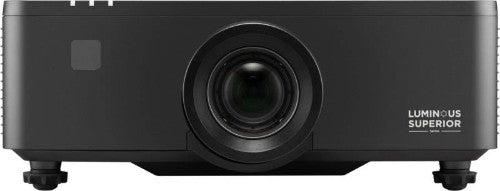

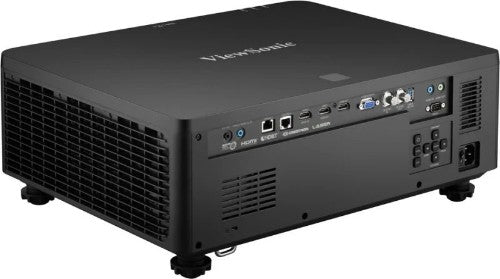

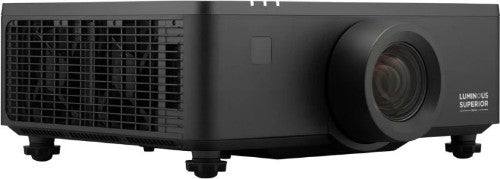

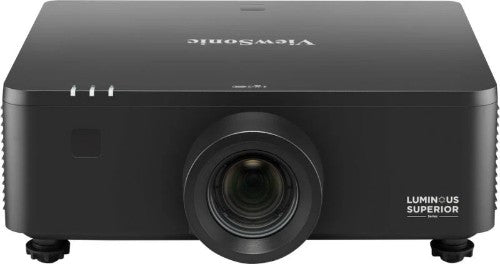

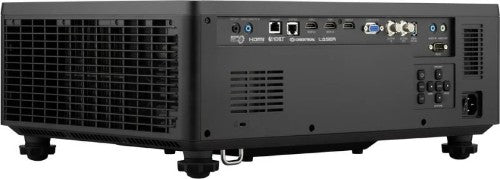

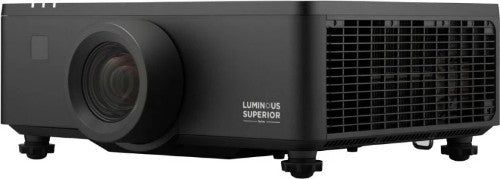

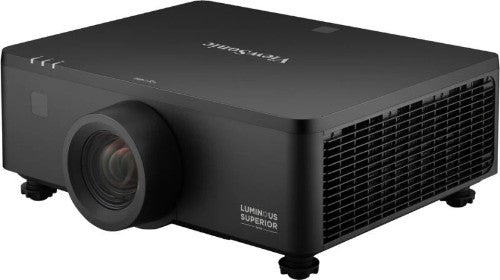

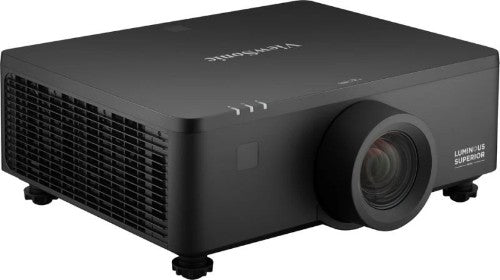

Viewsonic LS950WU data projector Standard throw projector 7100 ANSI lumens WUXGA (1920x1200) Black

0.67" WUXGA, 1920x1200, 7100 ANSI, F=2.0-2.4, f=18.72-29.59mm, 50"-300"

Key Features

• 7,100 ANSI Lumens ensure vibrant images in large venues
• High native contrast ratio provided by a 0.67" DMD chip and DLP technology
• Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
• Installation flexibility: motorized focus, 1.6x optical zoom, H/V lens shift, and 360° projection
• Centralized LAN control for efficient management
• 2nd generation laser phosphor technology with up to a 30,000-hour lifespan

Description

Introducing the LS950WU from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 7,100 ANSI Lumens brightness and high native contrast provided by a 0.67” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300-inch. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms, enhancing collaborative environments. With a 1.6x optical zoom, it allows for a flexible setup to suit various installation needs, and the motorized focus, lens shift, and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. Employing advanced 2nd generation laser phosphor technology, the LS950WU boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

Brilliant Visuals for Large Venues
With an impressive 7,100 ANSI Lumens, the LS950WU ensures crystal-clear visuals even in brightly lit environments. Its WUXGA resolution provides stunningly detailed images, enhancing the impact of presentations, training sessions, and events. This makes it the preferred choice for large venues such as auditoriums, receptions, training rooms, and indoor golf clubs.

Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LS950WU, boasting high contrast thanks to DLP technology and an advanced 0.67" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

Enhanced Installation Flexibility
Equipped with a 1.6x optical zoom, the projector allows users to choose the ideal setup location within a range, achieving the desired image size without altering the existing interior design. Conveniently fine-tune the zoom and focus using the remote control, ensuring seamless operation without needing to access the ceiling-mounted projector

Convenient Placement Setup
The tool-free lens shift control knobs allow you to adjust the projection up, down, left, and right without moving the projector. Additionally, you can also adjust the image position directly via the remote control from a distance. It provides flexible installation options with a wide adjustable range (H: +/- 25%, V: +/- 55%) and minimal placement restrictions.

Get ​​Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

Centralized Control for Management Efficiency
The LS950WU is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.

2nd Generation Laser Phosphor Technology
The LS950WU adopts 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, a lamp-free design, and instant power on/off from the previous generation, the new generation improves brightness by around 20%, offers better heat resistance, and features a smaller module design. This results in consistent images in various ambient settings, increased reliability, and a more compact size for extended use in different scenarios.

Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LS950WU maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.

Versatile Creative Application​s
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Cost-Effective Long-Distance AV Signal Reception
With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (up to 100m for 1080p) via a single Cat.5e/6 network cable and is compatible with any certified HDBaseT transmitter.

Seamless Collaboration with Split-Screen Modes
Enhance collaborative content sharing with intuitive split-screen capabilities. The projector seamlessly supports Picture-by-Picture (PBP), allowing up to two different inputs, and Picture-in-Picture (PIP), displaying a smaller screen within the main display, in real-time. This creates a dynamic and versatile collaboration experience.

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via a LAN webpage.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	WUXGA (1920x1200)
Native aspect ratio	16:10
Supported aspect ratios	16:10
Screen size compatibility	1270 - 7620 mm (50 - 300")
Projection distance	1.33 - 13.06 m
Contrast ratio (typical)	3000000:1
Zoom capability	Yes
Vertical synchronization (min)	0.023 kHz
Vertical synchronization (max)	0.12 kHz
Keystone correction, vertical	-30 - 30°
Keystone correction, horizontal	-30 - 30°
Horizontal synchronization (min)	15 kHz
Horizontal synchronization (max)	135 kHz
Projector brightness	7100 ANSI lumens
Lamps
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Zoom capability	Yes
Focal length range	18.72 - 29.59 mm
Aperture range (F-F)	2 - 2.4
Horizontal lens shift range	-25 - 25%
Vertical lens shift range	-55 - 55%
Throw ratio	1.25 - 2
Video
Full HD	Yes
3D	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W
Ports & interfaces
HDMI version	2.0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	2
USB 2.0 ports quantity	1
Audio (L/R) in	1
Audio (L/R) out	1
Serial interface type	RJ-45, RS-232
DVI port	No
AC (power) in	Yes
3D sync port	Yes
3G-SDI output	Yes
3G-SDI input	1
Network
Ethernet LAN	Yes
Sound emission
Noise level	32 dB
Noise level (economic mode)	30 dB
Technical details
Product colour	Black
Performance
Market positioning	Education
Noise level	32 dB
Noise level (economic mode)	30 dB
Features
Noise level	32 dB
Noise level (economic mode)	30 dB
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W
Design
Market positioning	Education
Product type	Standard throw projector
Product colour	Black
LED indicators	Yes
Placement	Ceiling
Display
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	405 W
Power consumption (standby)	0.5 W
Packaging data
Package width	654 mm
Package depth	563 mm
Package height	373 mm
Package weight	17.5 kg
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Weight & dimensions
Package width	654 mm
Package depth	563 mm
Package height	373 mm
Weight	12.8 kg
Width	486 mm
Depth	433 mm
Height	186 mm
Package weight	17.5 kg
Packaging content
Remote control included	Yes
Manual	Yes
