Description

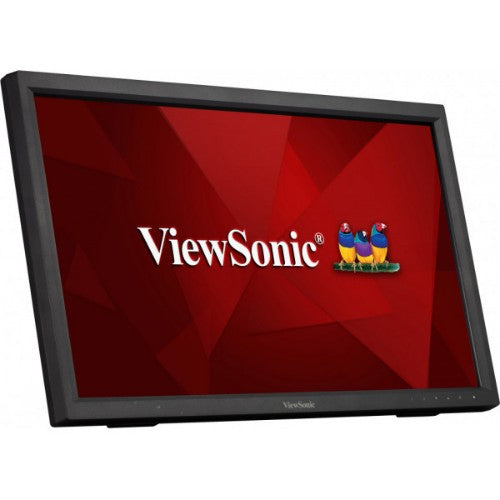

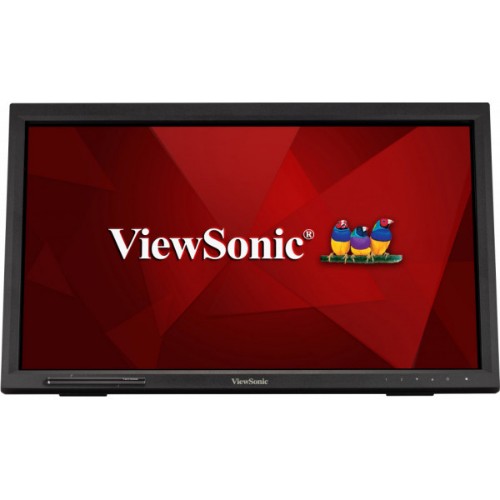

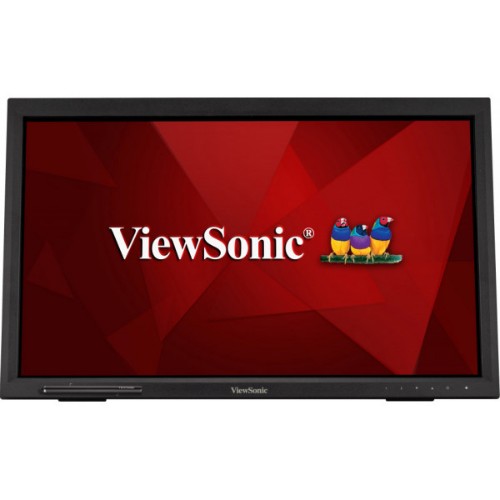

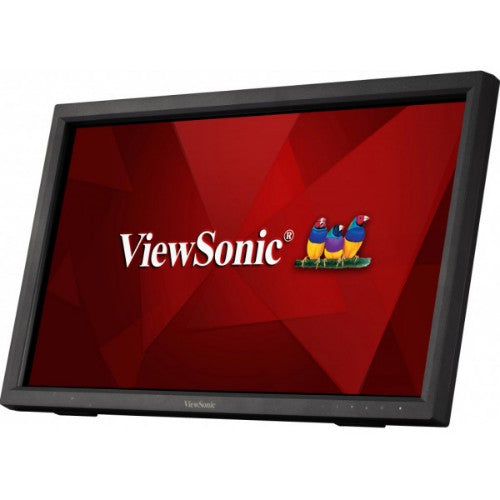

The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.,
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.,
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Display | |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 75 Hz |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.248 x 0.248 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Touch technology | Multi-touch |
| Touchscreen technology | Infrared |
| Display brightness | 250 cd/m² |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Product colour | Black |
| Glass thickness | 2 mm |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| Headphone out | Yes |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| Technical details | |
| Height (without stand) | 318 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 521 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Built-in microphone | No |
| Product colour | Black |
| Sustainability certificates | ENERGY STAR, REACH, RoHS |
| Power supply type | AC |
| Weight (with stand) | 4.5 kg |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 22 - 38° |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 14 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 12.5 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Weight & dimensions | |
| Height (without stand) | 318 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 521 mm |
| Width (with stand) | 521 mm |
| Depth (with stand) | 101 mm |
| Height (with stand) | 334 mm |
| Weight (with stand) | 4.5 kg |
| Weight (without stand) | 3.9 kg |
| Package width | 580 mm |
| Package depth | 164 mm |
| Package height | 405 mm |
| Package weight | 6 kg |
| Packaging data | |
| Package width | 580 mm |
| Package depth | 164 mm |
| Package height | 405 mm |
| Package weight | 6 kg |
| Stand included | Yes |
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, REACH, RoHS |
| European Product Registry for Energy Labelling (EPREL) code | 368718 |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Height (without stand) | 318 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 521 mm |
| Power consumption (max) | 14 W |
| HDMI | Yes |
| Power supply type | AC |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Certificates | |
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
